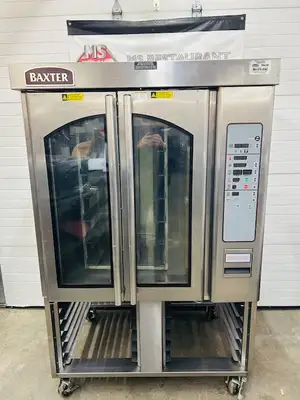

Baxter OV310G Mini Rotating Rack Oven Fully Refurbished Tested and Working

Baxter (Hobart) OV310G Natural Gas Mini Rotating Rack Oven Fully Refurbished

Tested and Working!

Product Highlights

• Two easy-to-open doors with large viewing window each

• Durable stainless steel construction with space-saving bake chamber

• Powered by Natural Gas

• Include rotating interior rack for even baking

• Cable restraint kit included

• In-shot burner system can produce up to 95,000 BTU per hour

Baxter OV310G-NG Product Description

Mini Rotating Rack Oven, gas, programmable digital controls, independent doors with dual pane windows, self-contained steam system, stainless steel construction, 95,000 BTU, cUL (shipped assembled)

Cleaning Instructions

Use a clean, damp rag in cleaning the exterior of the Baxter OV310G-NG Mini Rotating Rack Convection Oven. Wipe the rag to remove all the dirt or stains on it. For the racks, remove it carefully and wash it in the sink. Use warm, soapy water, and a brush to clean it. For the interior, clean it using a rag and warm, soapy water. Rinse everything thoroughly and let it dry completely using a clean rag.

Additional Info

The Baxter OV310G-NG Mini Rotating Rack Convection Oven is shipped assembled. It’s highly recommended for you to check its dimension and compare it to your establishment’s doors (width and height) and access paths before ordering. This is to immediately determine whether it will fit perfectly or may require using additional tools for it to fit. This commercial cooking equipment is UL U.S. certified.

A full-size Rotating Rack Convection Oven in a compact unit is what the Baxter OV310G-NG Mini Rotating Rack Convection Oven offers!

The Baxter OV310G-NG Mini Rotating Rack Convection Oven is indeed beneficial to improve the efficiency of the kitchen. It’s only a bonus that its compact design provides convenience in keeping the kitchen organized. Its body is constructed with a dimension of 48 inches (W) x 38.12 (D) x 47.9 inches (H) and weighs 785 pounds. The material used for the construction is stainless steel to ensure its reliable resistance to corrosion and longevity.

The Baxter OV310G-NG Mini Rotating Rack Convection Oven is also constructed with a weldless high-temperature heat exchanger. This heat exchanger consists of 8 independent high-temperature tubes to ensure seamless operation when used with the in-shot burner system. Speaking of, the in-shot burner system is powerful that it can produce 95,000 BTU per hour. Aside from the in-shot burner, this commercial convection oven operates with the self-contained patented steam system. The burner is a gas-fired, Natural Gas, that’s why it includes 3/4-inch NPT to ensure proper connection. Other connections this convection oven needs are the 1/2-inch NPT for the water supply and 120 volts/60 Hz/1-phase, 15 amps dedicated circuit. The oven control also requires 6.6 amps.

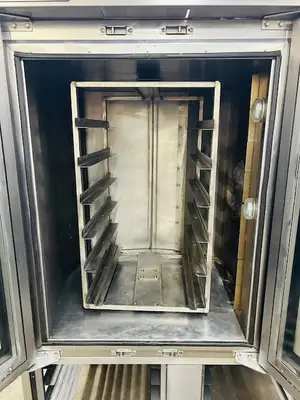

The interior of the Baxter OV310G-NG Mini Rotating Rack Convection Oven consists of a rotating rack to ensure even baking and patented rack bottom. These are both removable for ease in cleaning and maintenance. The interior can accommodate 8 pans (end load with 4-inch slide spacing) and built with easy-to-open doors. Each door is furnished with an individual handle and a large dual pane viewing window. To control the heat temperature, use its programmable digital control panel. It contains the auto ON/OFF and 99 programmable settings.

Delivery Details

• Hire two or more trained personnel in handling this equipment.

• Use a lift gate if the loading dock is not available.

• Unpack the shipping box carefully upon receipt and examine the equipment. Once you verified that you get the right equipment, inspect its condition for any signs of freight damages. If no damages found, sign the delivery receipt.

• All installation must only be performed by authorized trained personnel.

• Do the appropriate testing before putting it into service.

Maintenance Guide

Keep the Baxter OV310G-NG Mini Rotating Rack Convection Oven in good condition! You can maintain it with regular cleaning and inspection. The cleaning must be performed daily for the exterior and weekly for the interior and windows. The inspection, on the other hand, covers the entirety of the unit and its surrounding area. Always keep all combustibles away from the equipment. The airflow must also be free from any type of obstructions.

Baxter OV310G Specs

Weight: 700.00 LBS

Height: 47.90(H)

Width: 48.00(W)

Depth: 38.12(D)

BTU: 95,000 BTU

Capacity per Compartment: 8 Pan Capacity, per Compartment

Control Type: Digital

Deck Qty: 1 Deck

Interior Finish: Stainless Steel Interior

Manufacturer: Baxter
