20bbl Conical Brite Tank - Insulated Glycol Jacketed
Overview
Description
-Capacity/Type: 20 bbl brite tank (tag plate “BT”).
-Dimensions (provided): ~9.5’ H × 5’ W × 5’ D.

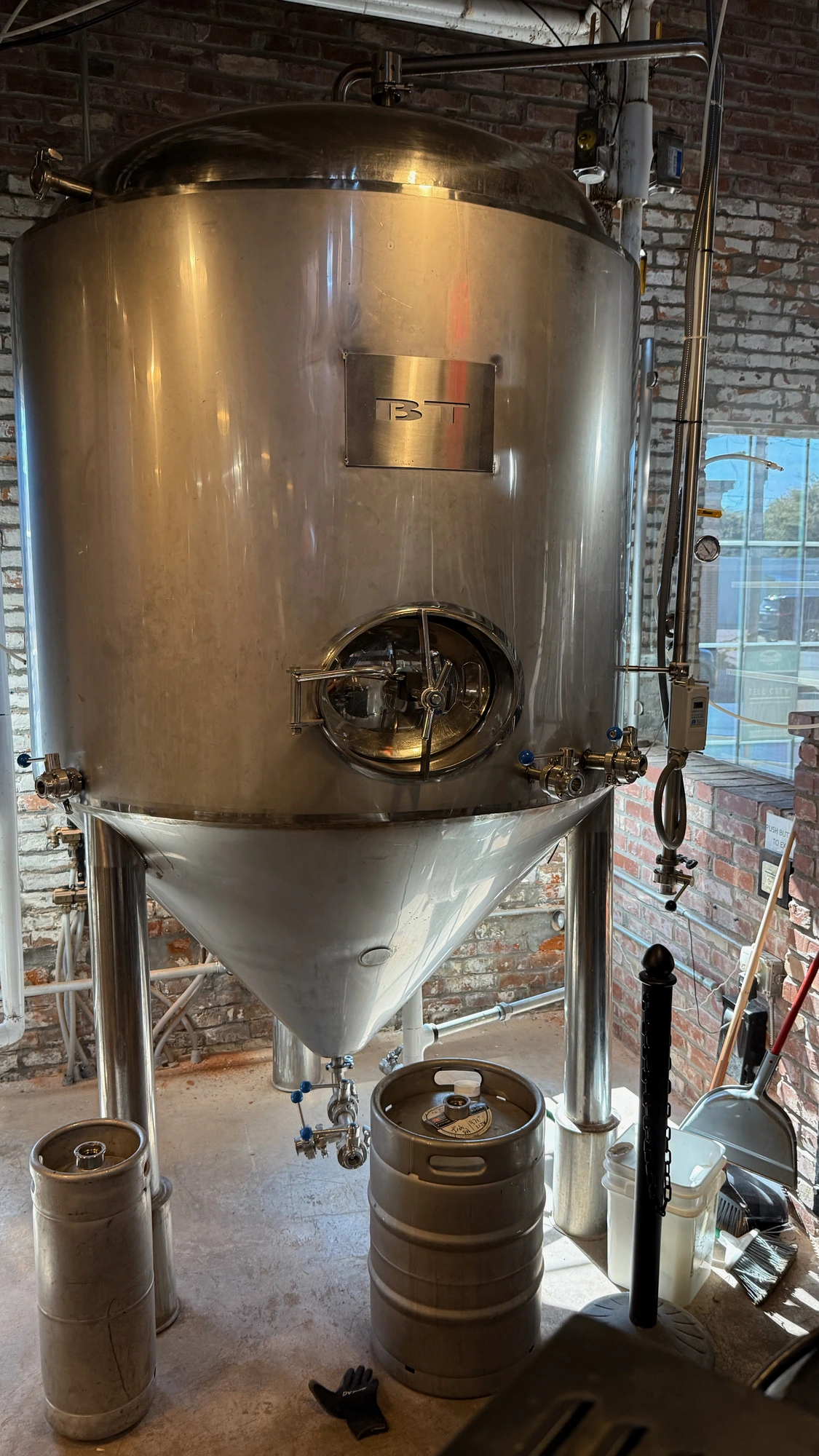

-Body/Stand: Stainless tank with dished top and cone bottom on four legs.

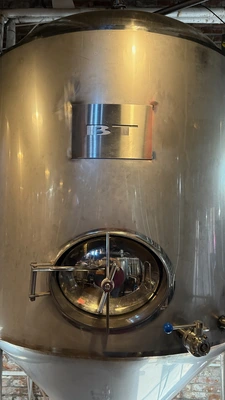

-Access: Side oval manway with swing-bolt clamp.

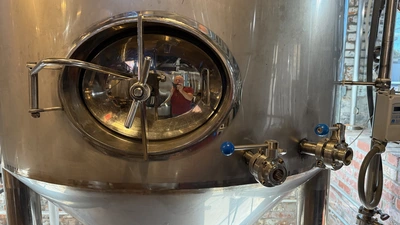

-Process connections (front, near manway): two 1.5″ tri-clamp ports each fitted with butterfly valves (used on site for sample/transfer—exact function to be verified by buyer).

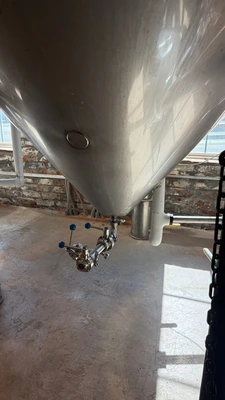

-Bottom outlet: cone drain/transfer port with tri-clamp butterfly valve assembly and hard-piped tee as pictured.

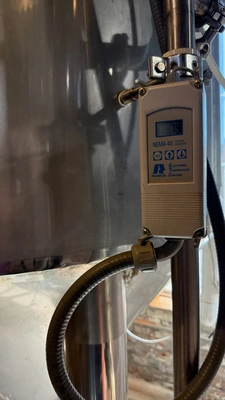

-Temperature control: Ranco NEMA 4X electronic temperature controller with probe installed on the tank.
-Top connection: hard-piped top-center tri-clamp fitting tied into the overhead manifold (site uses this for vent/CIP—relief valve not confirmed in photos).
-Included as pictured: front sight/port hardware, valves, clamps, and associated hard piping to the manifold.
Specifications
Category: Brite Tanks
Subtype: 20 BBL
Status: available
Condition: used
Quantity: 1
SKU: ITE454
Low Price: 2990.0
High Price: 4990.0
