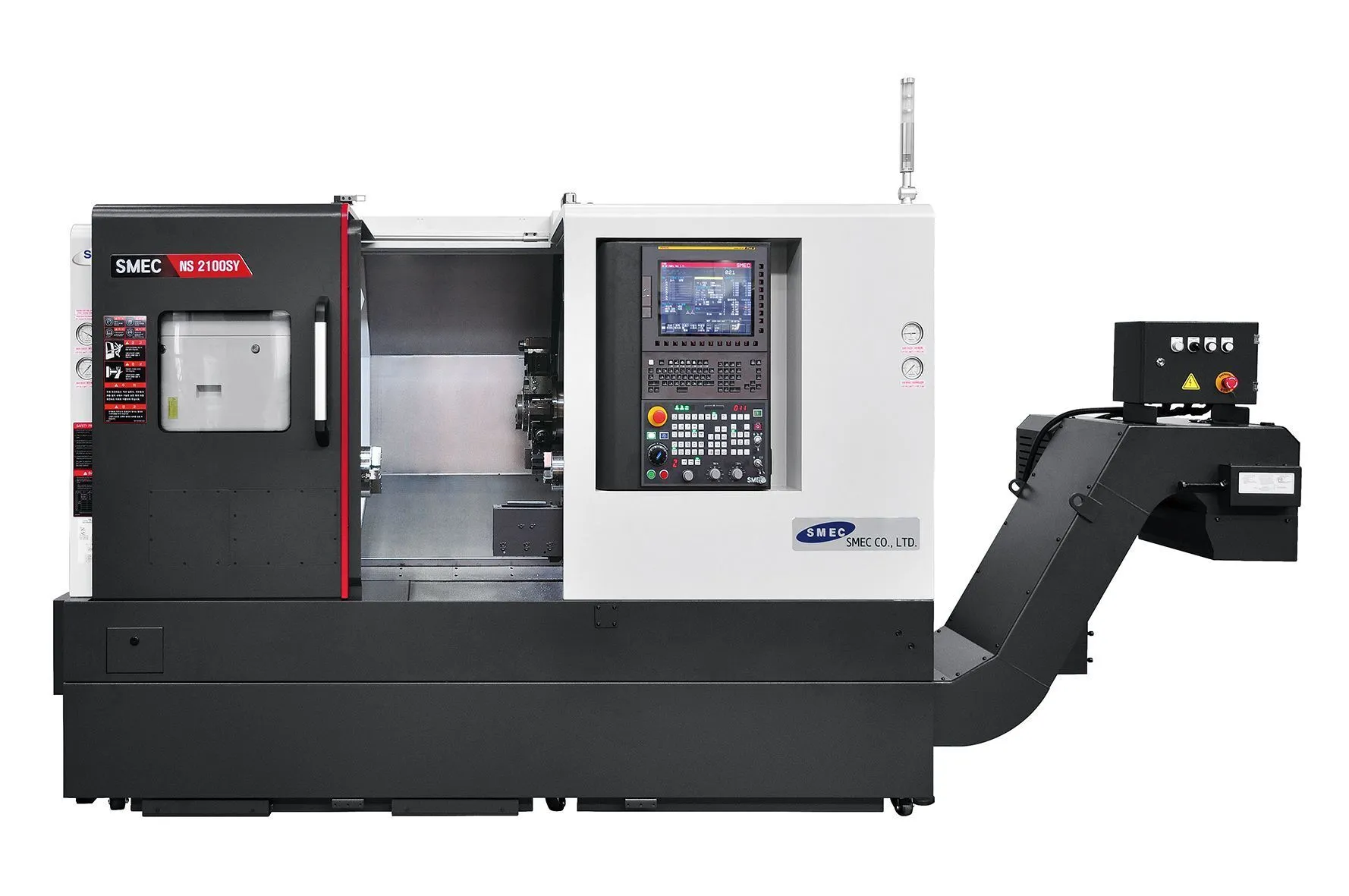

NEW SMEC NS 2100Y-B
Overview
Description
SMEC NS 2100Y-B CNC Turning Center, new condition. Ideal for precision machining tasks, it combines innovation and robust design with the latest CNC technology for enhanced performance in demanding manufacturing environments.
Specifications
| Swing | 32.26" | 819.4 mm |
|---|---|---|
| Machining Length | 19.26" | 489.2 mm |
| # Axis | 4 | 4 |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 3" | 76.2 mm |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 14.89" | 378.21 mm |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'Yes' | 'Yes' |
| Control | CNC | CNC |
| Dimensions | Fanuc 0i-TF+ | Fanuc 0i-TF+ |
Specification & Technical Data
Capacity
Swing Over the Bed 32.29″ Swing Over the Cross Slide 21.26″ Max. Turning Diameter 14.89″ Max. Turning Length A [B] 20.53″ [19.26″]
Main Spindle
Chuck Size A [B](Sub) 6″ [8″] (5″) Spindle speed A [B](Sub) 6,000 [4,500] (6,000) rpm Spindle Nose A [B](Sub) A2-5 [A2-6] (Flat ⌀110) Bore Diameter A [B](Sub) 2.40″ [3″] (1.7″) Draw tube I.D. A [B](Sub) 2.05″ [2.68″] (1.42″) Spindle motor (Cont./Max) 14.7/24.8 Sub Spindle motor (Cont./Max) 10.06/14.7
Travel
Axis Travel (X/Y/Z/ZB) 8.08″/4.34(±2.17)”/23.23″/23.23″
Guide ways LM Roller Guide
Rapid Traverse Rate (X/Y/Z/ZB) 1,181.11/393.71/1,417/1,417 inch/min
Turret
Number of Tool Positions 12 [24] BMT 45 Curvic Coupling 3 Piece hydraulic clamp/Servo index Indexing Time 0.15 sec Tool size (turning and facing) 3/4” – Wedge clamp Tool size (boring bar maximum diameter) 1-1/4” Rotary Tool RPM 6,000 RPM
Tailstock travel (quill)
Tailstock Travel 23.23″ Tailstock Quill Travel 3.15″ Tailstock Quill Diameter 2.56″
General
Floor Space (with C/C) (L×W) 116.34″ x 68.12″(162″ x 68.12″) Machine Weight A [B] 9,259 [9,281] lbs. Controller Fanuc 0i-TF+
