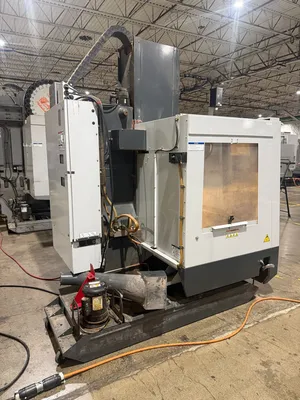

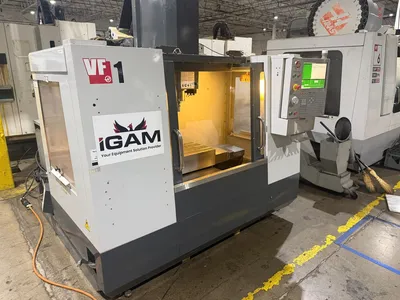

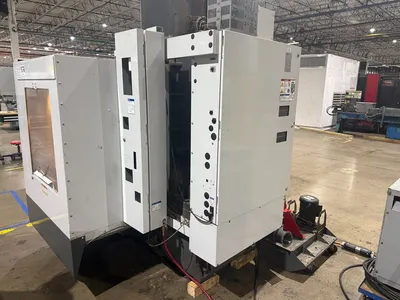

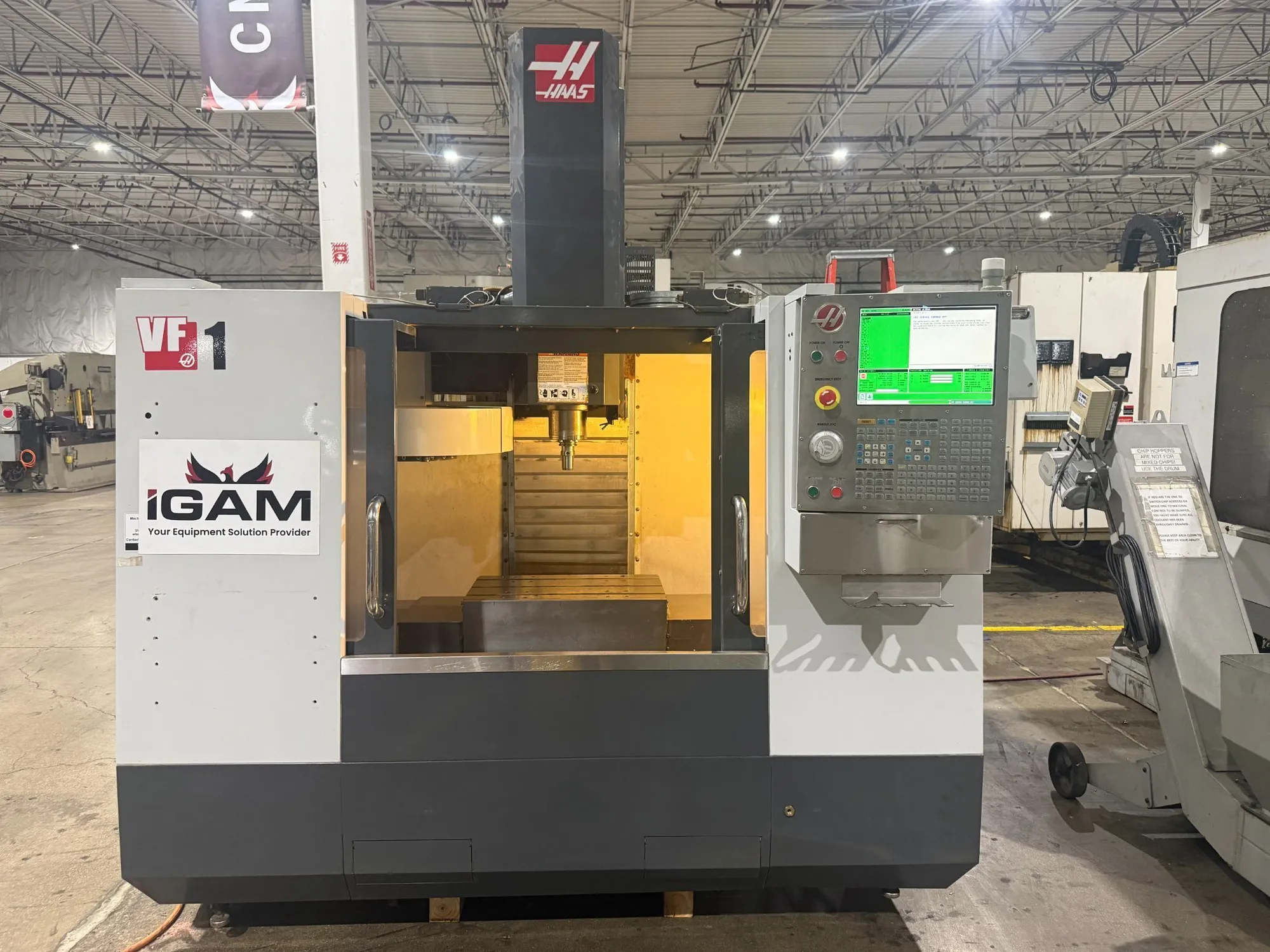

2011 Haas Vf-1
Coolant tank and pump
260-195V, 18KVA
Contact us to See this machine in person or purchase
| CNC Control | Haas Control | Haas Control |
| # Axis | 3 | 3 |

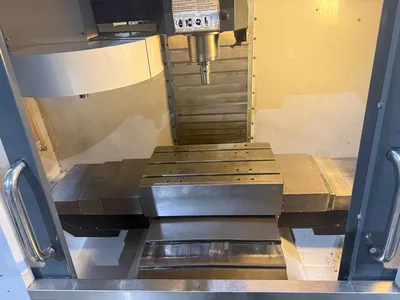

| Table-L | 26" | 660.4 mm |
| Table-W | 14" | 355.6 mm |
| Max Table Load | 3000 | 3000 |
| X-axis Travel | 20" | 508 mm |
| Y-axis Travel | 16" | 406.4 mm |
| Z-axis Travel | 20" | 508 mm |
| Rapid Traverse Rate (X/Y/Z) | 1000 IPM | 1000 IPM |
| Spindle Taper | Cat 40 | Cat 40 |
| Spindle Speed | 7,500 RPM | 7,500 RPM |
| Main Motor | 20 hp | 14.9 kW |

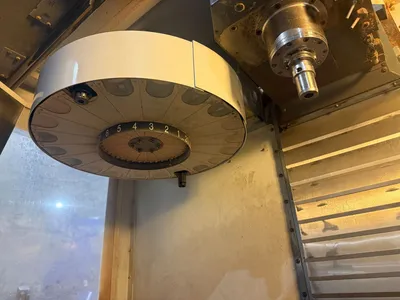

| # ATC | 20 | 20 |
| Dimensions | 95"x 86"x 99" Tall on 4x4 | 95"x 86"x 99" Tall on 4x4 |
| Weight | 8,000 lbs | 8,000 lbs |
