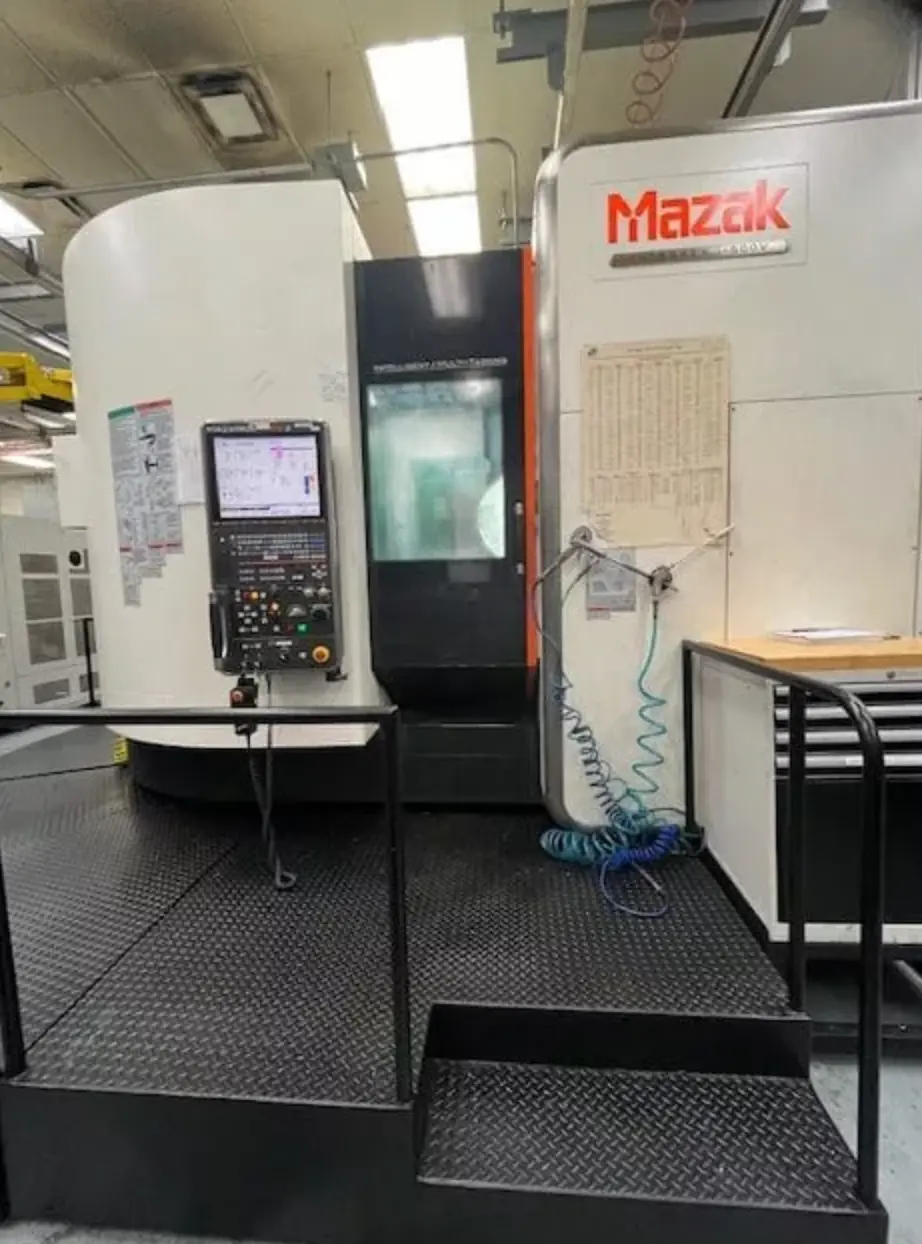

Used Multitasking machining center. Features include 5-axis, Mazatrol Matrix 2, 2-pallet changer, and 12,000 RPM spindle. Equipped with Renishaw probing, spindle chiller, and tooling systems. 80 ATC, CAT 40 taper.
| X | 43.31" | 1,100.1 mm |
| Y | 31.5" | 800.1 mm |
| Z | 35.43" | 899.92 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 80 | 80 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 24" | 609.6 mm |
| Pallet-L | 24" | 609.6 mm |
| # Axis | 5 | 5 |
| Control | CNC (Mazatrol Matrix 2) | CNC (Mazatrol Matrix 2) |
Mazatrol Matrix 2
2-Pallet Changer
24" Location Bore Tap Pallet
5-Axis Tool Radius Compensation
B Mill Spindle Synch Tapping W/O Tool
Detach Manual Pulse Generator
Double Internal Wear Resistant Conveyors
EIA/ISO Function 5 Axes Simultaneous
Laser Mill Tool Measure NC4/Full W/O Soft
Manual Rotation of 2 PC Loading System
Prep for Flash Tool System
Prep for Monitoring System BMP600
Prep for Visual Tool ID/Data Management
Safety Cover for 2 Pallet Changer
Tool Tip Point Control / 5 Axes Simul
Work Measuring System RMP600 Ready
ATLM
Scale Feedback System (Y/Y/Z Axis)
Renishaw Probing
Spindle Chiller Unit
Coolers for Ballscrews (X/Y/Z)
MT Connect Preparation
4th Axis Rotary Table
Chip Conveyor
Super FlowTB/1000 Coolant System
