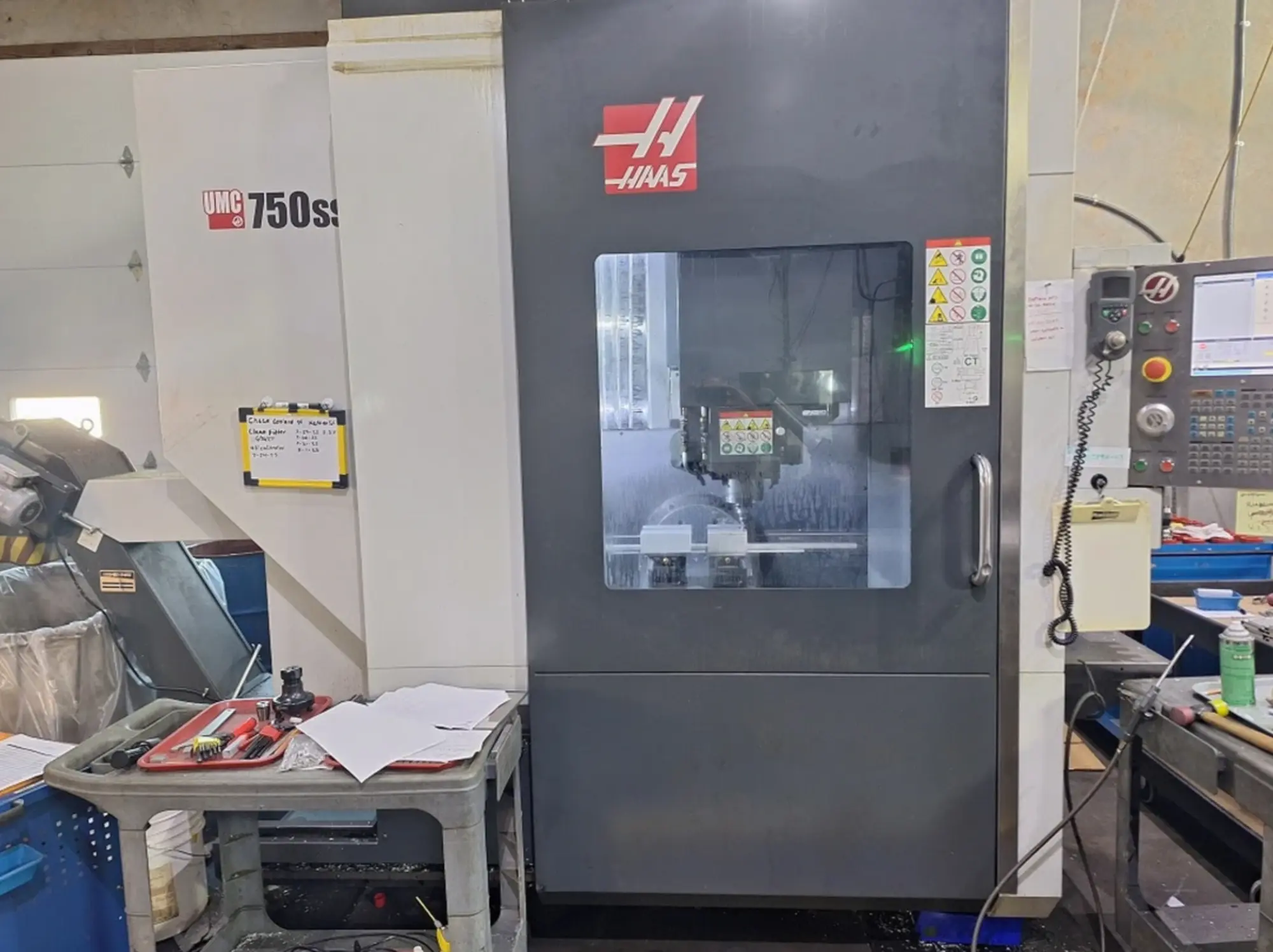

Used Universal Machining Center with 5-axis capability, 30" X, 20" Y, and 20" Z travel. Features include 30 hp, 15,000 RPM, CAT 40 taper, 40 ATC, spindle orientation, wireless probing, high-speed machining, and chip conveyor.
| X | 30" | 762 mm |
| Y | 20" | 508 mm |
| Z | 20" | 508 mm |
| # Axis | 5 | 5 |
| Power | 30 hp | 22.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 40 | 40 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 19.7" | 500.38 mm |
| Table-L | 24.8" | 629.92 mm |
| Control | CNC (HAAS) | CNC (HAAS) |
| Dimensions | 162" x 113" x 120" | 162" x 113" x 120" |
| Weight | 19,200 Lbs | 19,200 Lbs |
1 GB Program Memory
Compensation Tables
Remote Jog Handle with Color LCD
High Speed Machining
Macros
Programmable Coolant Nozzle
Rigid Tapping
Spindle Orientation
Wireless Intuitive Probing System
TCPC and DWO
Visual Programming System
Media Display
Wireless Networking
Chip Conveyor
5th Axis Trunnion Table
Through Spindle Coolant
