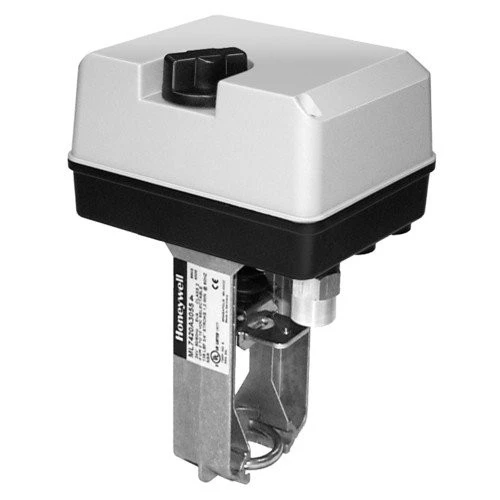

Honeywell ML7421A1032 Non-Spring Return Electric Linear Valve Actuator, 405 lb-f [New]

Non-Spring Return Electric Linear Valve Actuator. Application: HVA. Dimensions (in.): 10 3/8 in. high x 7 in. wide x 7 in. deep. Dimensions (mm): 264 mm high x 178 mm wide x 178 mm deep. Includes: 1/2 in. Flexible Conduit Adapter; 1/2 in. Conduit Hub. The ML6421A,B Non-Spring Return Electric Linear Valve Actuators are suitable for use with low-voltage, single-pole double-throw (spdt), Series 60 two-position and floating controllers. These actuators operate standard Honeywell valves in heating, ventilating, and air conditioning (HVAC) applications. The ML7421A,B Non-Spring Return Electric Linear Valve Actuators are modulating control actuators used with control that provide an analog output of 0 to 10 Vdc or 2 to 10 Vdc. These actuators operate standard Honeywell valves in HVAC applications. An internal selector plug can be used to reverse the direction of action.FEATURES: Easy and quick installation on valves with 1 3/8 in. bonnet and 3/4 in. stroke, or with 1 7/8 in. bonnet and 1 1/2 in. stroke. High force for VGF Pressure-balanced valves. No separate linkage required. Conduit connector standard. No adjustments required on linkage. Accurate valve positioning. Low power consumption. High close-off ratings. Force limiting end switches. Manual operator. Synchronous motor. Maintenance free. SPECIFICATIONS: Application: HVAC. Dimensions (in.): 10 3/8 in. high x 7 in. wide x 7 in. deep. Dimensions (mm): 264 mm high x 178 mm wide x 178 mm deep. Includes: 1/2 in. flexible conduit adapter; 1/2 in. conduit hub. Weight: (lb)5.1 lb. Weight (kg): 2.3 kg. Materials: ABS Plastic. Item Type: Product. Mounting: Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves. Frequency: 50 Hz; 60 Hz. Approvals, Underwriters Laboratories Inc. Flammability Rating UL: 94V-5V. Approvals, Canadian Standards Association. Certified Electrical Connections: Screw terminals. Operating Humidity Range (% RH): 5 to 95% RH. Supply Voltage: 24 Vac +10%, -15%. Power Consumption: Driving-- 12 VA Shipping and Storage Temperature Range (F)-40 F to +158 F Shipping and Storage Temperature Range (C)-40 C to +70 C. Approvals, CE Recognized. Ambient Temperature Range (F): 14 F to 122 F. Ambient Temperature Range (C)-10 C to +50 C. Environmental, Electrical or Ingress Protection Rating: IP54,Class I Insulation (24 Vac). Internal Auxiliary Switch: 0. Fluid Temperature (C): 150 C MaximumFluid Temperature (F): 300 F Maximum. Actuator Type: Valve. Control Signal: 0 to 10 Vdc; 2 to 10 Vdc. Fail Safe Mode: Stays in place. Torque Rating (lb-in.)405 lbf. Torque Rating (Nm): 1800 N. Switches: Yes. Stroke (in.): 3/4 in. Stroke (mm): 20 mm. Cable: Two knockout holes for 1/2 in. conduit standard on actuator caseTiming, Nominal Driving @ 60 Hz-- 95 sec. Feedback: 2-10 Vdc. Manual operation: Knob.. Honeywell. Honeywell. ML7421A1032.
