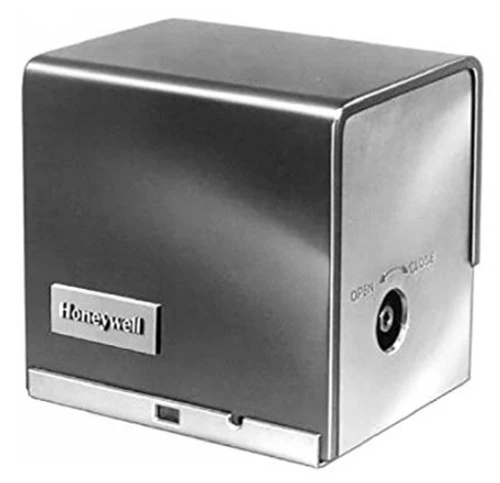

Honeywell M436A1116 Tradeline Damper Motor, 2 Position Spring Return, 120V 60Hz [New]

Honeywell M436A1116 Tradeline Damper Motor. 2 Position Spring Return. 120 Volts, 60 Hertz. 75 deg Stroke. . Spring return motors for two-position back draft, outdoor air changeover, zone, or minimum position damper control. - FEATURES: Operate outdoor air dampers for combustion or makeup air in residential and light commercial applications. Operate changeover dampers for heating and cooling systems. Operate minimum position dampers for ventilation and similar applications. Include internal SPDT switch for controlling auxiliary equipment, additional motors, or to provide a burner interlock switch. Spring returns motor to start position on power failure. Drive shafts located on both sides of motor. Adjustable auxiliary switch for cascading motors or operating auxiliary equipment. Thermal breaker for overload protection during lifting stroke or if motor stalls. SPECIFICATIONS: Dimensions (in.): 4 1/2 in. high x 4 5/8 in. wide x 3 3/4 in. deep. Dimensions (mm): 114 mm high x 118 mm wide x 95 mm deep. Weight (lb): 4 lb 10 oz. Weight (kg): 2.1 kg. Mounting: Foot-mounted. Frequency: 60 Hz. Approvals, Underwriters Laboratories Inc. Listed File: E4436, Guide: XAPX. Tradeline Value: Tradeline. Electrical Connections: Screw terminals. Operating Humidity Range (% RH): 5 to 95% RH. Supply Voltage: 120 Vac. Operating Temperature Range (F): 32 F to 125 F. Operating Temperature Range (C)0 C to 52 CTimingRun Time Maximum-- 40 secInternal Auxiliary Switch1StrokeAngle of Rotation-- 75 degrees maximumControl SignalTwo position, SPSTFail Safe ModeSpring ReturnTorque Rating (lb-in.)20 lb-in.Torque Rating (Nm)2.3 NmAdditional Torque Ratings (lb-in.)Breakaway-- 30 lb-in.Additional Torque Ratings (Nm)Breakaway-- 3.3 NmExternal Auxiliary Switches AvailableYesTiming, NominalOpening-- 30 secSpring Return TimingMaximum-- 25 sec Nominal Current Draw (amps) Opening-- 0.37 A, Holding-- 0.12 A Nominal Power (watts)Opening-- 28 W, Holding-- 8.5 W Motor shafts2, Hexagonal shape. Honeywell. Honeywell. M436A1116.
