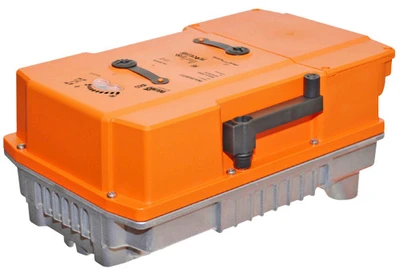

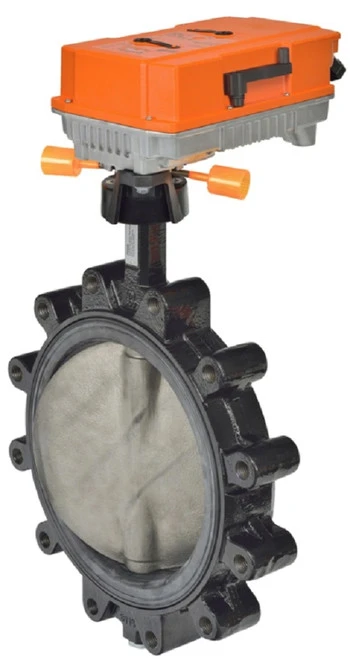

Belimo F6200L+PRXUP-MFT-T-200 2-Way 8-Inch Butterfly Valve With Actuator, 200psi [New]

Service: Chilled, Hot Water, up to 60% Glycol. Flow Characteristic: Modified Equal Percentage. Controllable Flow Range: 90 deg Rotation. Size [mm]: 8?ó?é¼?¥ [200]. End Fitting: For Use With ANSI Class 125/150 Flanges. Belimo F6200L-PRXUP-MFT-T-200 F6G1F1+PR340 P00 L0H - Application - Valve is designed for use in ANSI flanged piping systems to meet the needs of bi-directional high flow HVAC hydronic applications with 0% leakage. Typical applications include cooling tower bypass, primary flow change-over systems, and large air handler coil control. Jobsite Note - Valve assembly should be stored in a weather protected area prior to installation. Reference the butterfly valve installation instruction for additional information. SPECIFICATIONS: Service: Chilled, Hot Water, up to 60% Glycol. Flow Characteristic: Modified Equal Percentage. Controllable Flow Range: 90 deg rotation. Size [mm]: 8?ó?é¼?¥ [200]. End Fitting: For Use With ANSI Class 125/150 Flanges. Body: Ductile Iron ASTM A536. Body Finish: Polyester Powder Coated. Seat: EPDM. Shaft: 420 Stainless Steel. Bushings: Steel, PTFE (Typical). Disc: 304 Stainless Steel. Body Pressure Rating [psi]: 232. Number of Bolt Holes: 8. Lug Threads: 3/4-10 UNC. Media Temperature Range (Water): -22?é??F to 250?é??F [-30?é??C to 120?é??C]. Close-Off Pressure: 200 psi. Rangeability: 10:1. Maximum Velocity: 12 FPS. Cv: 3136. Weight: 36.4 lbs [16.5 kg]. Leakage: 0%. Servicing: Maintenance Free. PR Series valve actuators are designed with an integrated linkage and visual position indicators. For outdoor applications, the installed valve must be mounted with the actuator at or above horizontal. For indoor applications the actuator can be in any location including directly under the valve. Operation - The PR series actuator provides 90?é?? of rotation and a visual indicator shows the position of the valve. The PR Series actuator uses a low power consumption brushless DC motor and is electronically protected against overload. A universal power supply is furnished to connect supply voltage in the range of 24-240 VAC and 24-125 VDC. Included is a smart heater with thermostat to eliminate condensation. Two auxiliary switches are provided; one set at 10?é?? open and the other is field adjustable. Running time is field adjustable from 30-120 seconds by using the Near Field Communication (NFC) app and a smart phone. ?ó?é¼ Use 60?é??C/75?é??C copper wire size range 12-28 AWG, stranded or solid. Use flexible metal conduit. Push the listed conduit fitting device over the actuator?ó?é¼?äós cable to butt against the enclosure. Screw in conduit connector. Jacket the actuators input wiring with listed flexible conduit. Properly terminate the conduit in a suitable junction box. Rated impulse Voltage 4000V. Type of action 1. Control pollution degree 3.. Belimo. Belimo. F6200L+PRXUP-MFT-T-200.
