Doosan Lynx 220LM Live Tool CNC Lathe (2012)
| Swing | 20.1" | 510.54 mm |
| Machining Length | 20.1" | 510.54 mm |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2.01" | 51.054 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| Turning Dia | 9.8" | 248.92 mm |
| Tailstock | Yes | Yes |
| Live Tooling | Yes | Yes |
Doosan Lynx 220LM Live Tool CNC Lathe (2012)
Swing Over Bed: 20.1" (510 mm)
Swing Over Carriage: 11.4" (290 mm)
X-Axis Travel: 6.9" (175 mm)
Z-Axis Travel: 13.0" – 21.6" (dependent on bed length)
C-Axis Indexing: 0.001° increments
Spindle & Tooling
Spindle Bore: 2.4" (61 mm)
Spindle Nose: A2-5 or A2-6
Live Tool Motor: 5.0 HP (3.7 kW)
Rapid Traverse (X/Z): 1,181 / 1,417 IPM
Physical Information
Machine Weight: Approximately 7,190 lbs (3,261 kg)
Floor Space: ~101" x 64" (approximate layout)

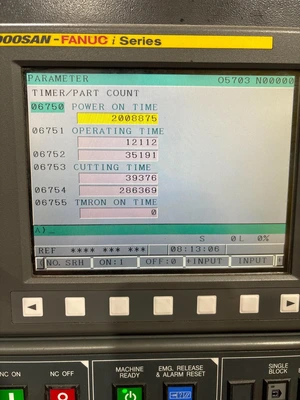

Fanuc I Series CNC
Live Tool
Tool Presetter
Collet Chuck
Tailstock
Barfeed
