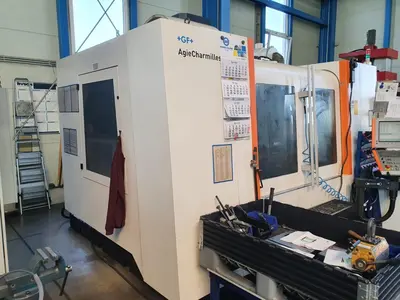

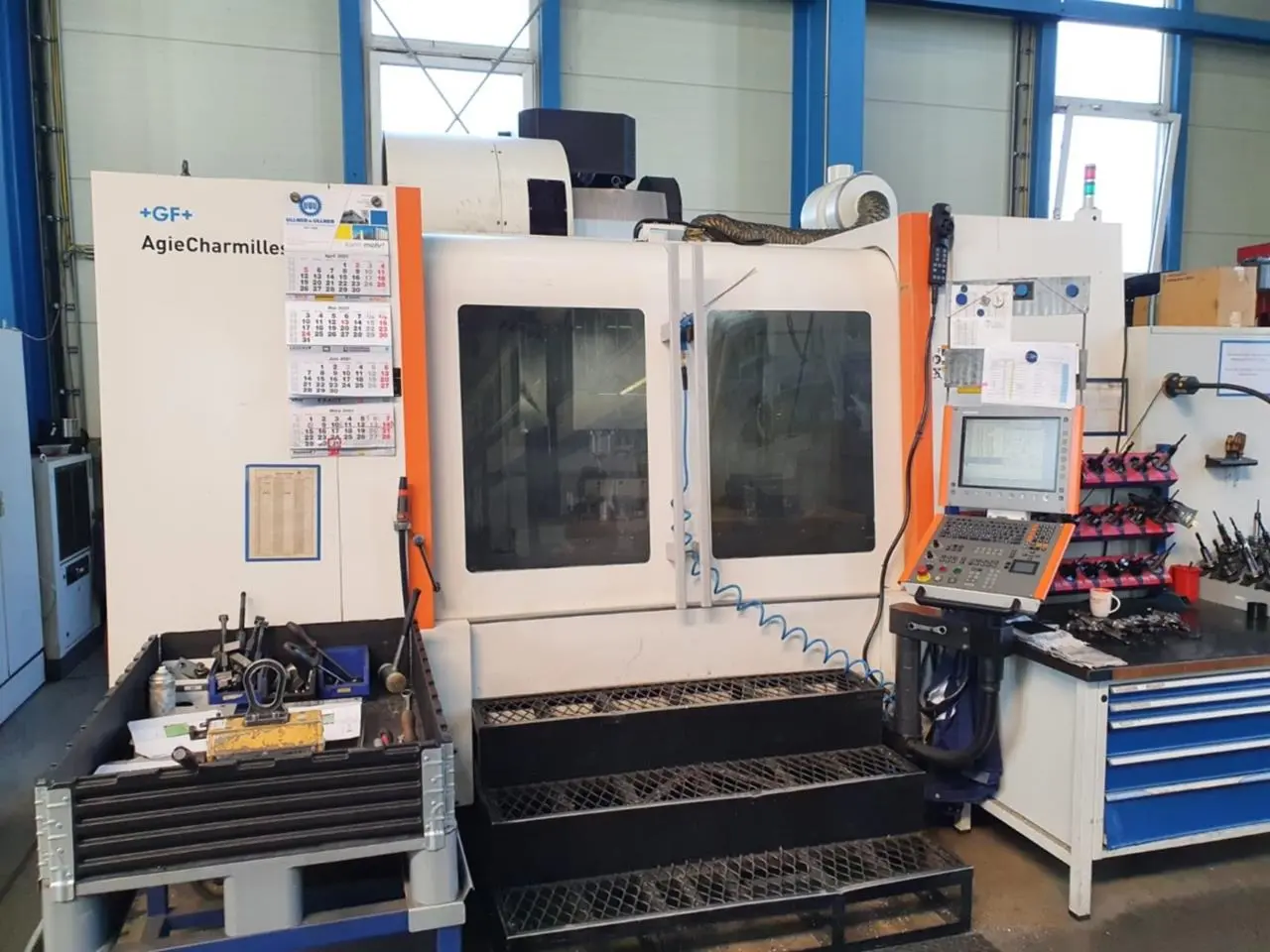

USED 2012 MIKRON VCE 1600 PRO

Control system: Heidenhein iTNC530
Total hours: 67342 h
Hours on: 32684 h
Length of the working table: 1700 mm
Width of the working table: 850 mm
Maximum table load (evenly distributed): 2000 kg
Maximum rotary speed of the vertical spindle: 10000 1/min
X-Axis travels: 1600 mm
Y-Axis travels: 900 mm
Z-Axis travels: 800 mm

Oil mist extraction
Workpiece probe
Internal cooling
In 2023:
replacement of the linear guides on the X and Y axes
replacement of the ball screws on the X and Y axes
new measuring scale on the Y axis.
