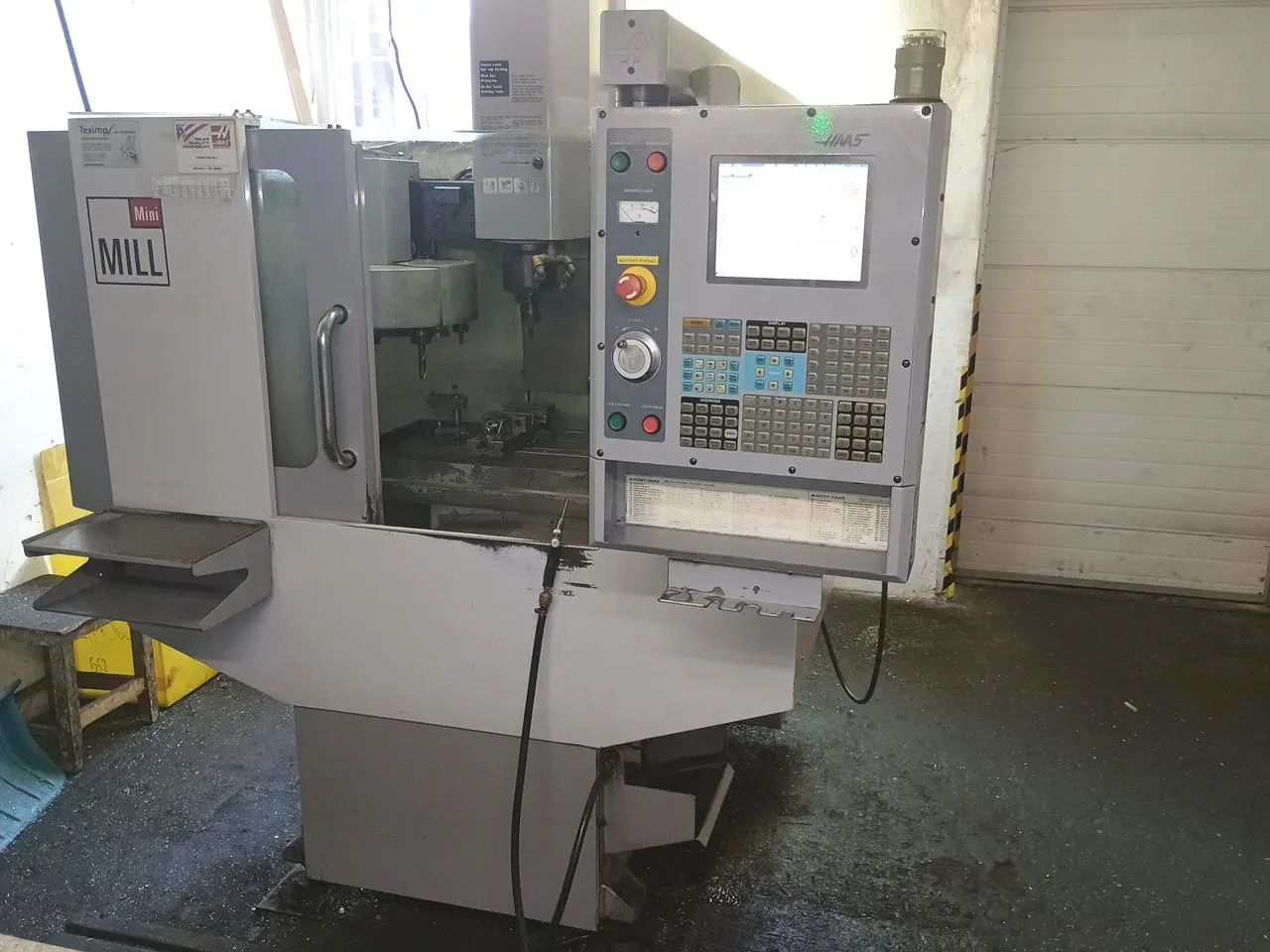

USED 2006 HAAS MINIMILL HE

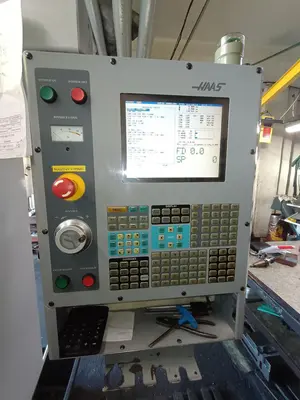

Control system: HAAS
Hours on: 23434 h
Length of the working table: 914 mm
Width of the working table: 305 mm
Maximum table load (evenly distributed): 227 kg
Power of the spindle drive: 7.5 kW
Maximum rotary speed of the vertical spindle: 6000 1/min
X-Axis travels: 406 mm
Y-Axis travels: 326 mm
Z-Axis travels: 381 mm
Taper: ISO 40
Maximum number of tools: 10 pcs
Machine height: 2565 mm
Machine length: 2119 mm
Machine width: 2077 mm
Machine weight: 2018 kg
2024: spindle bearing remeasured
2023: Y-axis thrust bearing replaced

2022: spindle runout measured

2018: Z-spindle feed bearing replaced and motor clutch replaced
