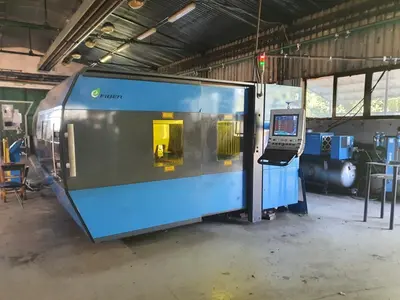

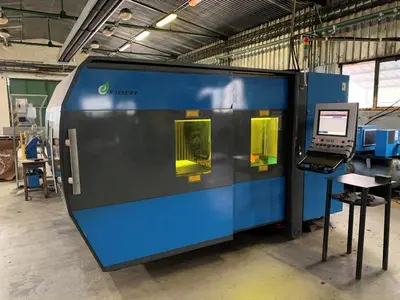

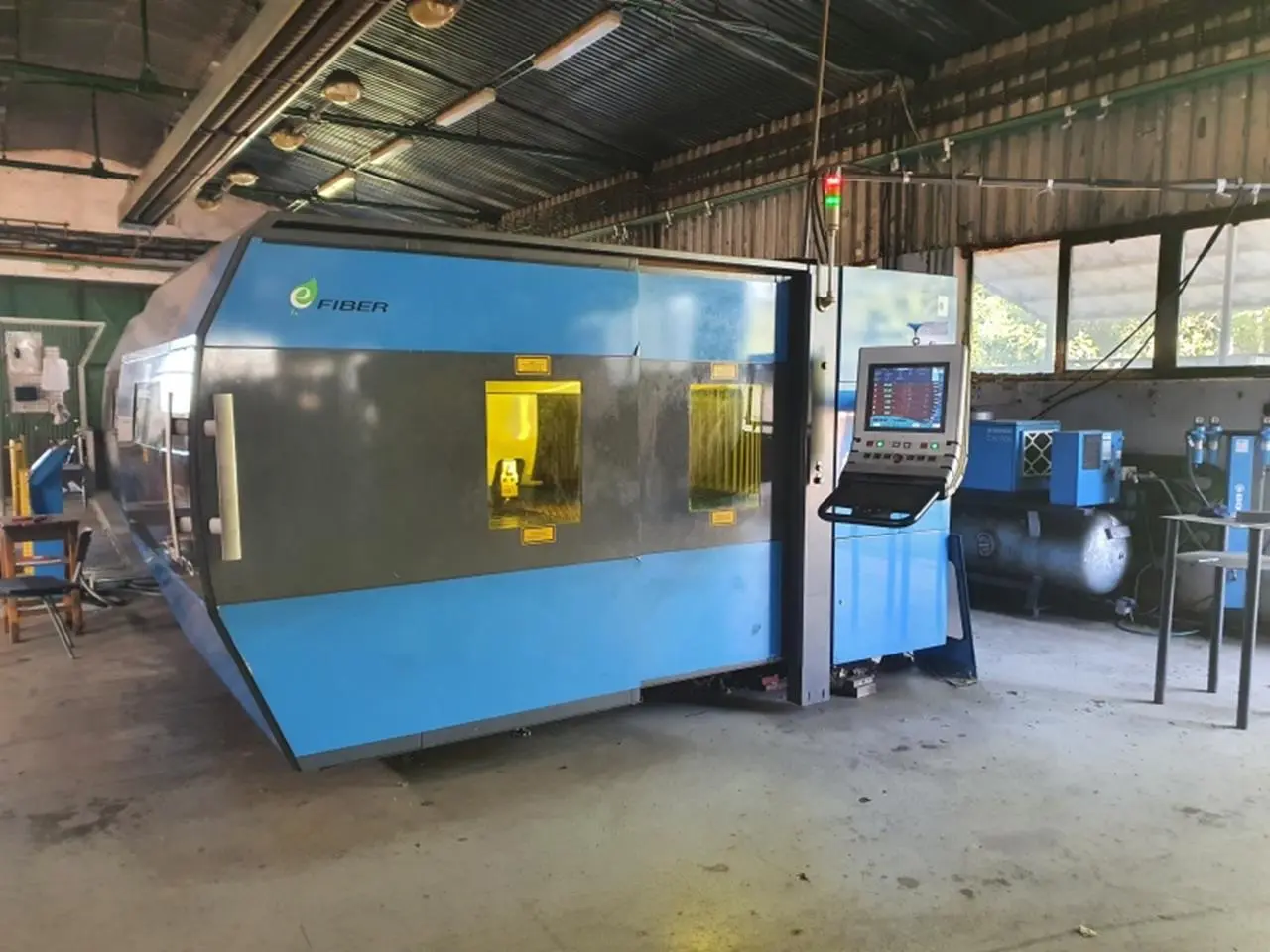

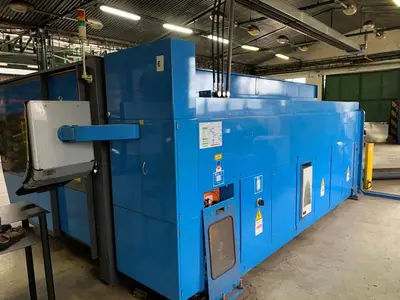

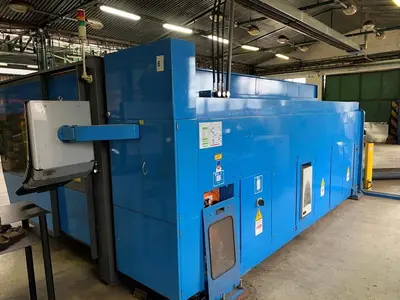

USED 2014 PRIMA POWER PLATINO FIBER

Control system: Prima Power
Total hours: 27 710 h
Beam ON: 12 424
Laser power: 3 kW
Length of the working table: 3000 mm
Width of the working table: 1500 mm
Maximum sheet thickness (carbon steel): 20 mm
Maximum thickness of the cut sheet metal (Stainless Steel): 8 mm
Maximum sheet thickness (copper): 6 mm
Maximum thickness of the cut sheet metal (Aluminum): 8 mm
Travel length X-axis: 3065 mm
Travel length Y-axis: 1560 mm
Travel length Z-axis: 150 mm
Source: IPG 3000
Machine height: 2200 mm
Machine length: 9797 mm
Machine width: 3757 mm
Machine weight: 10000 kg

Cooling
Suction
Two changing tables with steel grates
Cutting gas: nitrogen oxygen and compressed air
