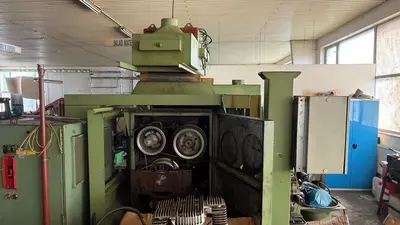

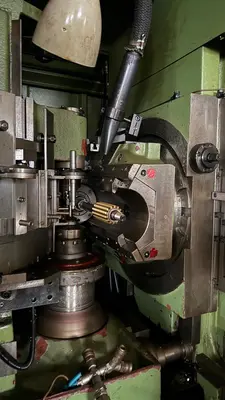

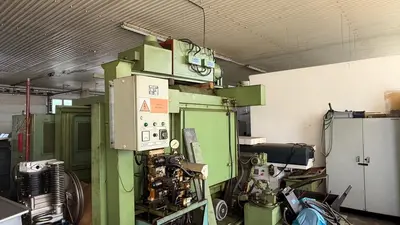

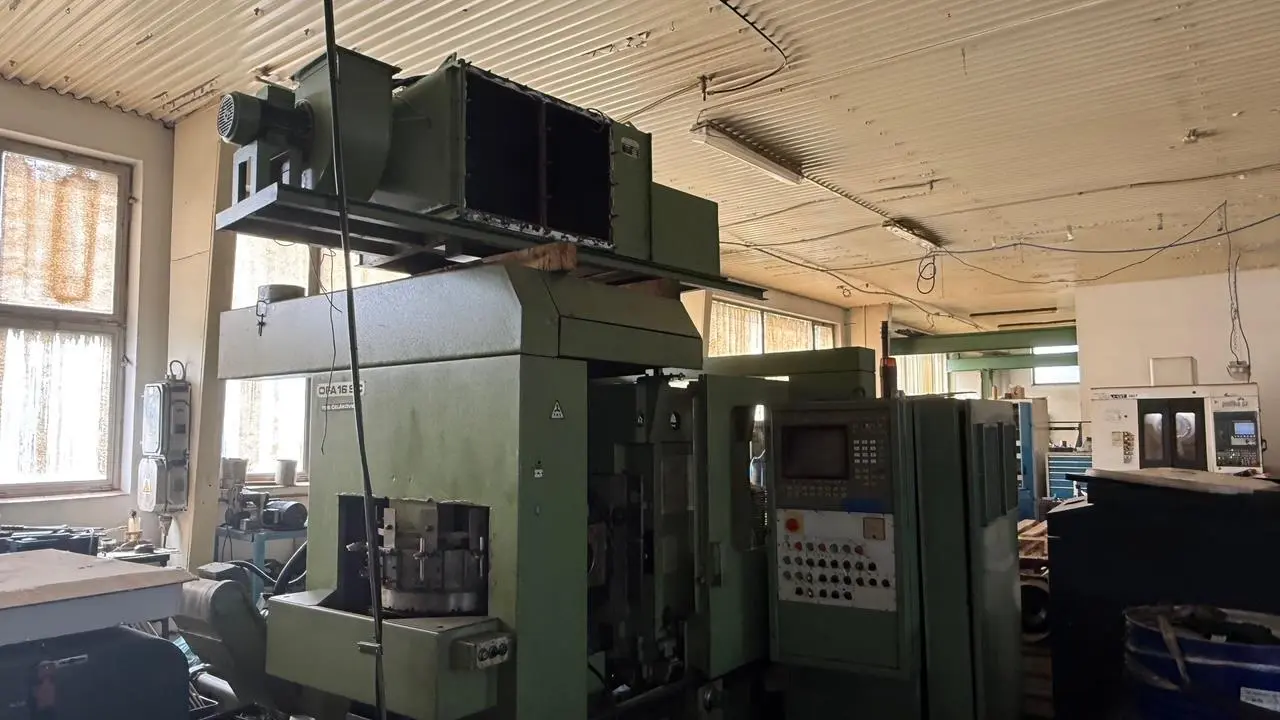

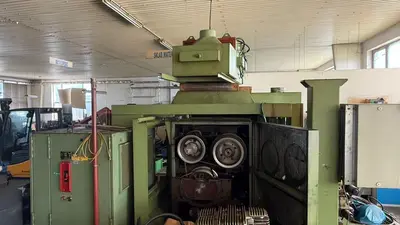

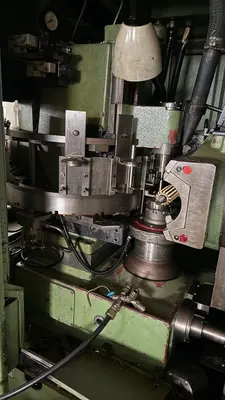

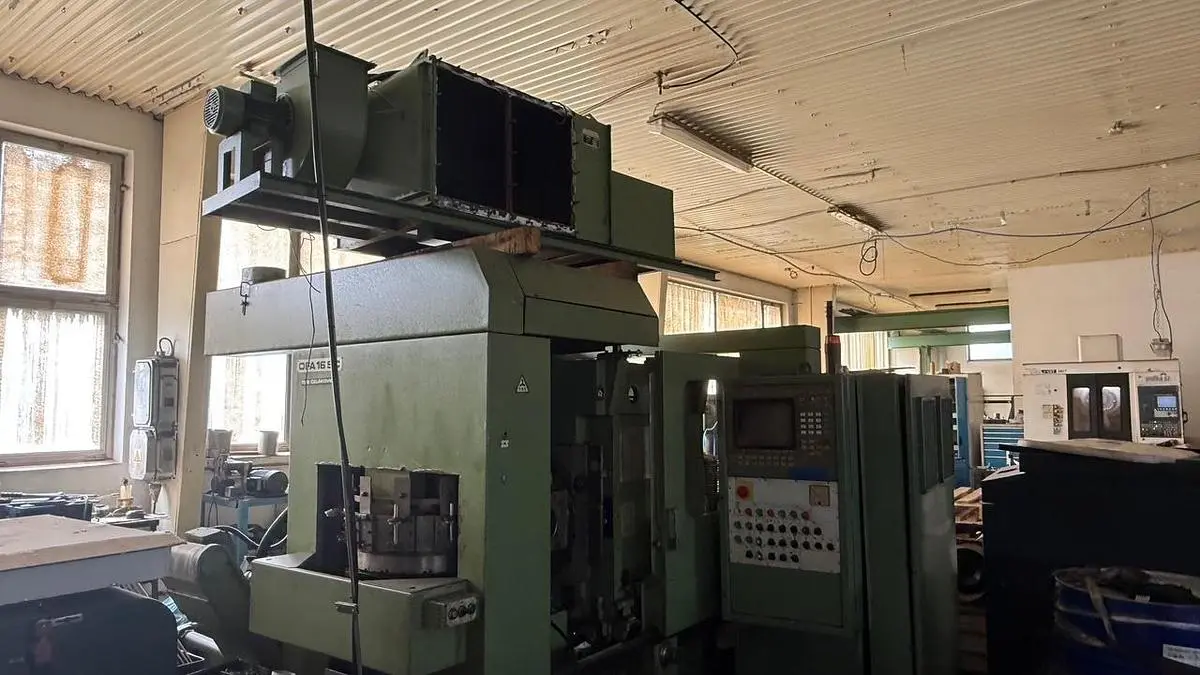

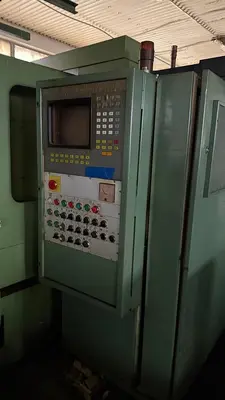

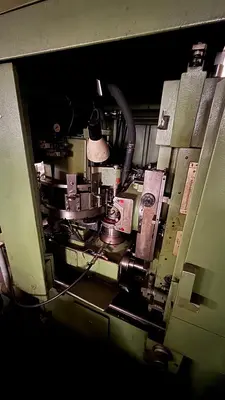

USED TOS OFA 16 SC
Overview
Machine dimensions:: 3012 x 2650 x 1995 mm
Specs
Diameter of the hole in the working table: 65 mm
Maximum diameter of the gear wheel: 160 mm
Maximal module: 4
Machine weight: 5200 kg
Maximum diameter of the milled gear: 160 mm
Maximum module of the milled gear: 4 mm
Maximum travel of the milling slide: 200 mm
Maximum distance of the support arm from the table surface: 515 mm
Minimum distance of the support arm from the table surface: 265 mm
Maximum helix angle (tooth flank inclination): ±85°
Maximum distance from tool axis to table axis: 205 mm
Minimum distance from tool axis to table axis: 25 mm
Maximum number of teeth (standard machine configuration): 160
Minimum number of teeth (standard machine configuration): 6
Maximum number of teeth with double-start dividing gear: 80
Minimum number of teeth with double-start dividing gear: 3
Maximum distance from tool axis to table surface: 370 mm
Minimum distance from tool axis to table surface: 170 mm
