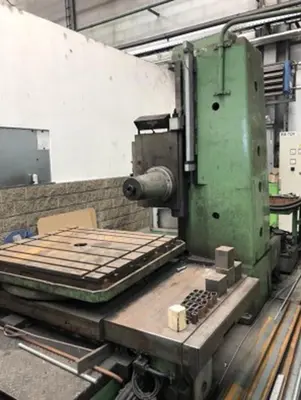

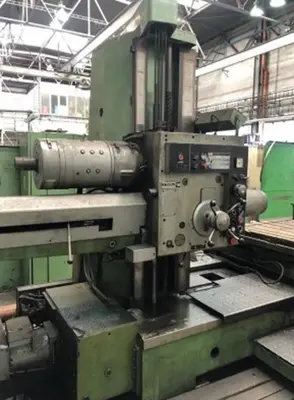

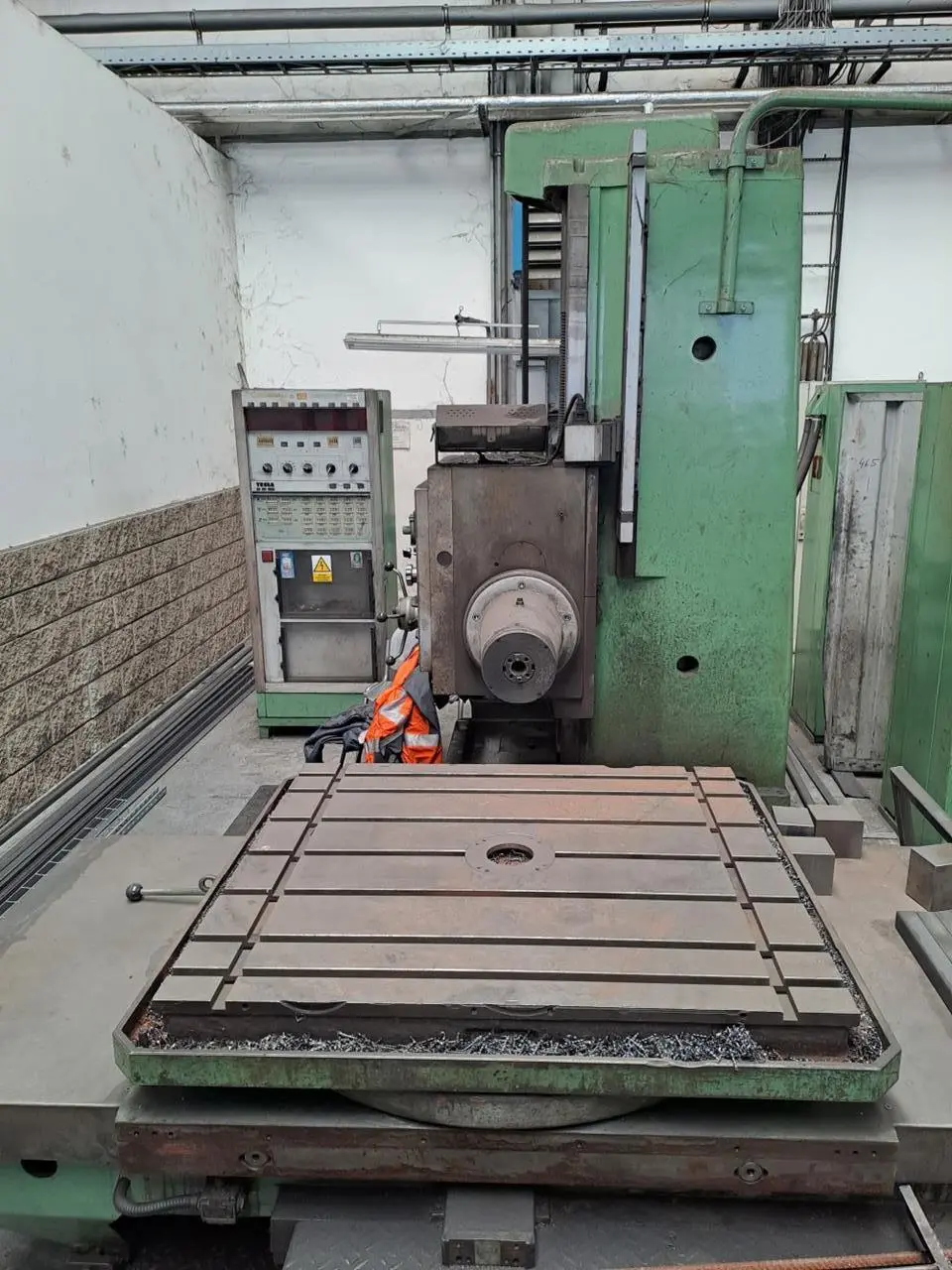

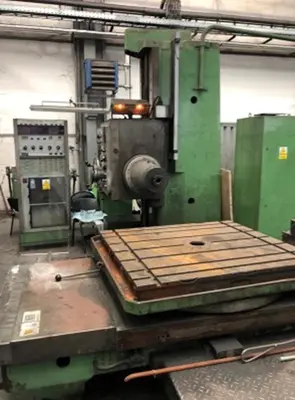

USED 1975 TOS WHN 9 B

Length of the working table: 1120 mm
Width of the working table: 1000 mm
Maximum table load (evenly distributed): 3000 kg
Maximum rotary speed of the spindle: 1120 1/min
Maximum distance from the table to the spindle axis: 900 mm
Spindle diameter: 90 mm
Taper: ISO 40
Machine weight: 12000 kg
Repair history:
30.8.2021: repair of the rotary table
31.5.2021: correction of lubrication system for guide surfaces
18.2.2021: adjustment of the rotary table clutch
22.10.2020: replacement of the sealing elements of the tool
clamping hydraulic cylinder
replacement of tool clamping bearings
replacement of tool clamping hydraulic hoses

21.10.2019: replacing the electromagnetic clutch
10.9.2019: brush holder - carbon
31.1.2017: adjusted quick-shift couplings with replaced spark plugs and switch buttons on the Y axis
3.11.2017: fixed shift clutch
