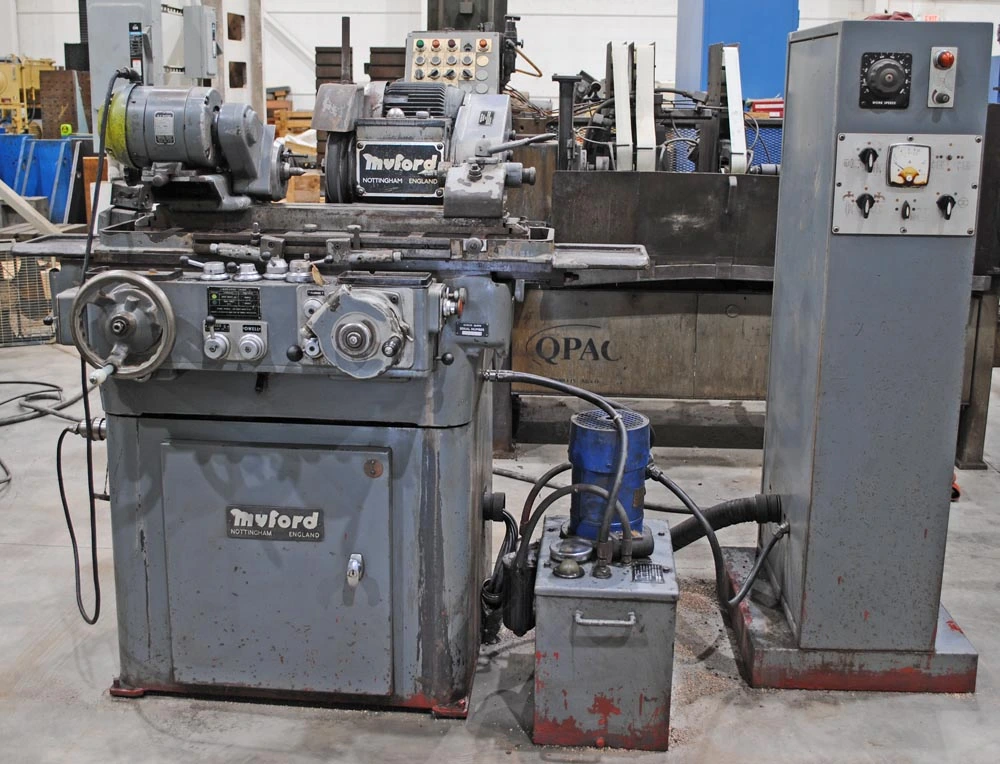

USED MYFORD MG12-HP

MYFORD MODEL MG12-HP UNIVERSAL GRINDER
Serial No. HP 102402W
*Automatic Plunge Cycle: Workhead start, Wheelhead plunge, Sparkout,

Automatic Retract, Workhead stop. Hydraulic table traverse with incremental

infeed of wheelhead.
Maximum grinding diameter: 3”

Swing over table: 5”

Maximum table travel: 13.5”

Capacity between centers: 12”

Table swivels: +7 degrees

Grinding wheel size: 12” X 1 ½” W X 5” hole Wheel speed: 1830 RPM Workhead

speeds from 100 to 1000 RPM, variable Max. collet capacity: ¾”

Machine equipped with:

Plain workhead & tailstock

Coolant system

Table mounted wheel dresser

Wheel adaptor

Centering sleeve w/ drawtube and handwheel

Centers for workhead & tailstock

Dimensions: FB X RL – 40” X 57”

Height: 70”

Est. weight: 2200#
