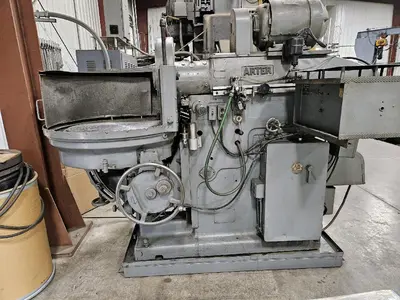

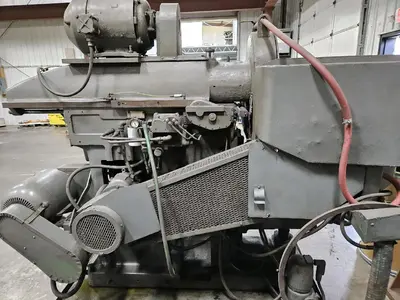

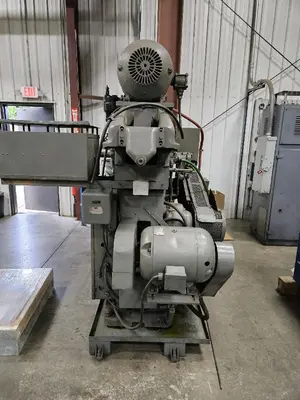

ARTER HORIZONTAL SPINDLE ROTARY SURFACE GRINDER MACHINE
Model: B30
Serial Number:
Specifications
Chuck Diameter 31 in
Max. Swing Inside Guards 38 in

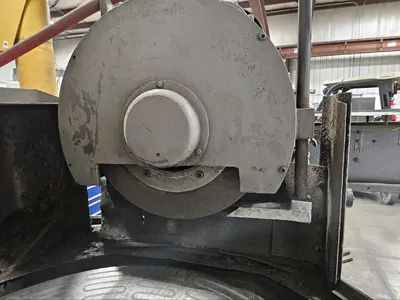

Wheel Size 20″ x 3-1/2″ x 12″ Hole
Vertical Capacity Full Diameter
Tilt of Work Table for Convex Grinding 10 °
Tilt of Work Table for Concave Grinding 10 °
Wheel Spindle Speeds 950 rpm
Wheel Motor 10 HP
Approx. Machine Weight 10,000 lb
Approx. Machine Dimensions 102 x 87 x 81 in
Equipped With:

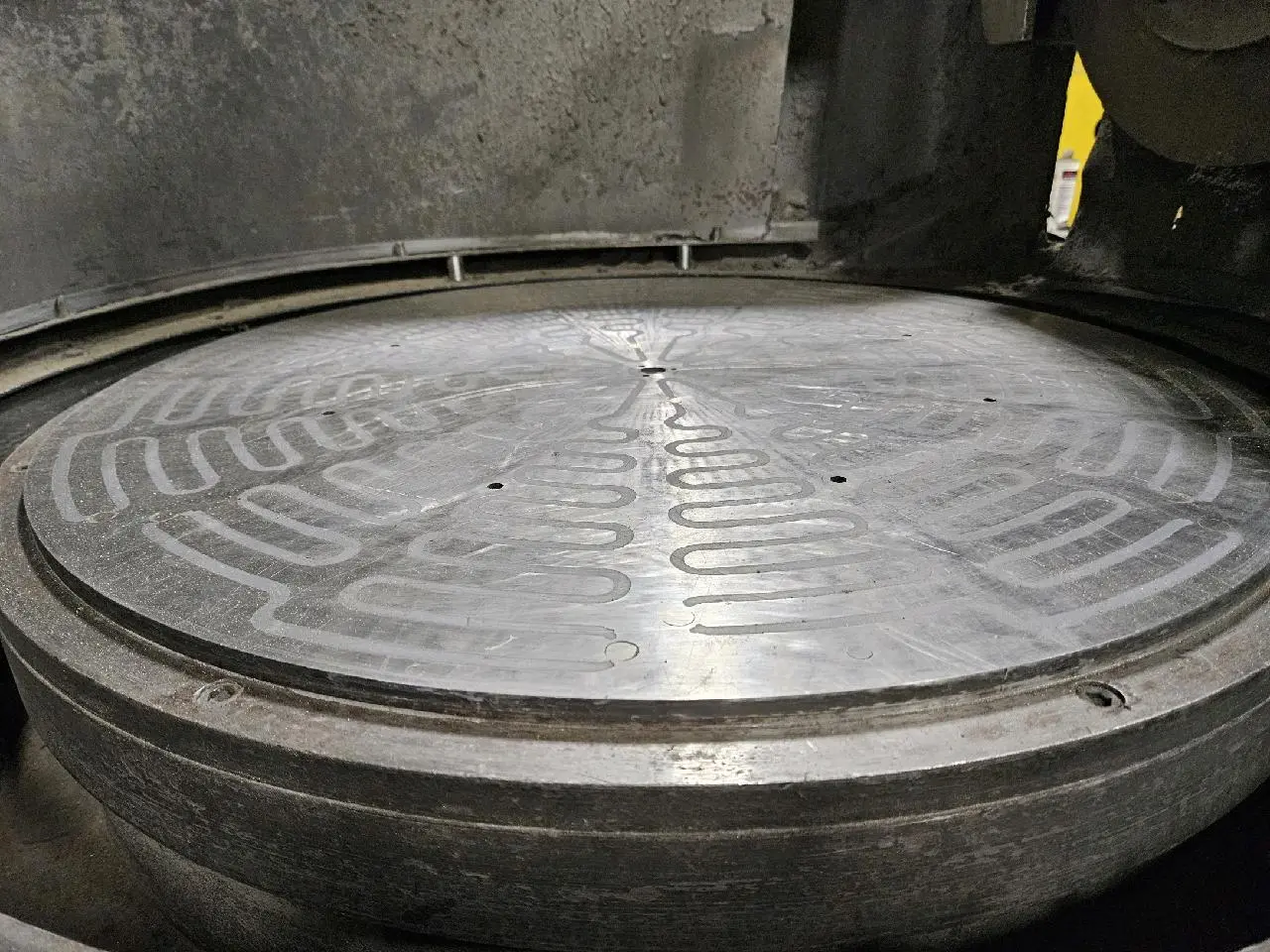

31″ Magnetic Chuck and Controls with Approx. 3/4″ Chuck Life
Coolant Pump and Tank
Automatic Lubrication
