USED PARKER MAJESTIC 16C

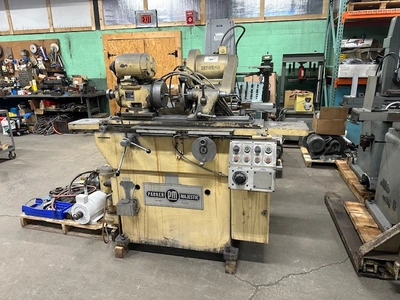

Parker Majestic 16C Universal OD / ID Grinder

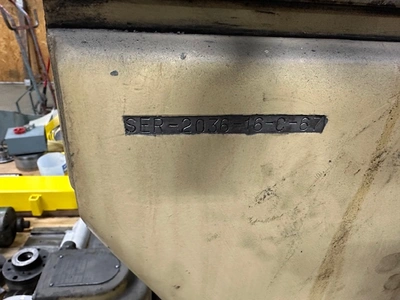

Serial No. 2036-16C-67
SPECIFICATIONS:
Swing Over Table………………………………………………….12″

Distance Between Centers…………………………………………..16″

Table Working Surface…………………………………………5″ x 38″

Power Table with Reciprocator………………………………………Yes

Tabel Swivel………………………………………………..7 Degrees

Table Travel……………………………………………………..24″

Cross Feed Travel………………………………………………3-1/2″

Cross Feed Adjustment………………………………………………4″

Cross Feed Handwheel Graduations………………………………..0.0005″

Cross Feed Precision Dial Graduations………………………….0.000050″

Grinding Wheel Size……………………………………….10″ Diameter

Grinding Wheel Bore Size………………………………………..1-1/4″

Wheelhead Motor…………………………………………….1-1/2 H.P.

Headstock Swivel……………………………………….0 to 90 Degrees

Infinite Variable Headstock Spindle Speeds………………….20 to 225 RPM

Hole Thru Spindle………………………………………………1-1/4″

Headstock Center Taper………………………………………..#6 Jarno

Tailstock Center Taper………………………………………..#6 Jarno

Spindle Motor………………………………………………1-1/5 H.P.

Electrics………………………………………………..480/3/60
Approximate Dimensions……………………………….69″L x 37″L x 57″H

Approximate Weight………………………………………….3,750 Lbs.
EQUIPPED WITH:

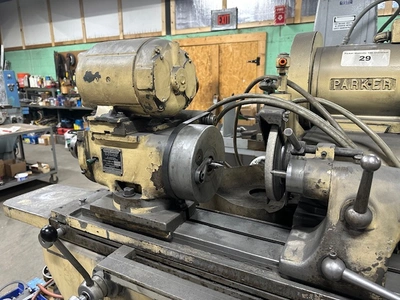

O.D. Wheelhead, Presently is Set-Up to use 10″ Diameter Wheel, 3″ Bore

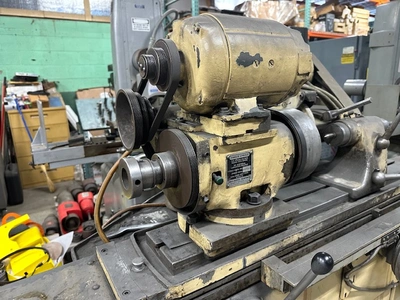

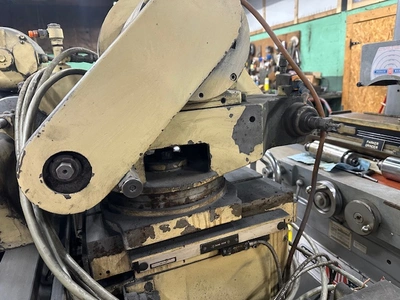

Swing-Around Internal Grinding Attachment with I.D. Spindle

Tailstock Center and Workhead Center

Parker-Majestic Super-Precision Spindle for Wheelhead

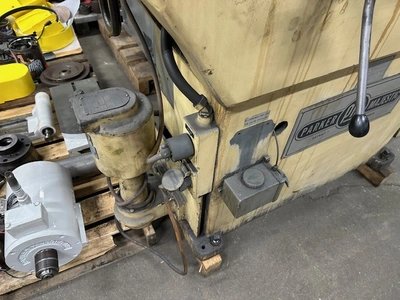

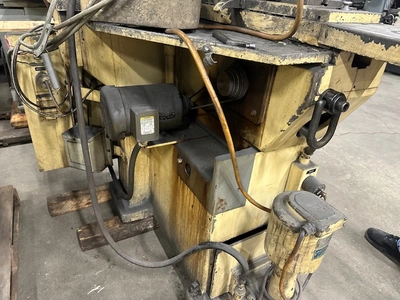

Coolant System, Self-Contained, in the Base of the Machine

One-Shot Lubricator

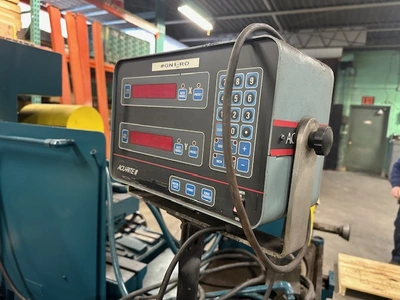

Acu-Rite II Digital Readout
