USED BROWN & SHARPE 1024U

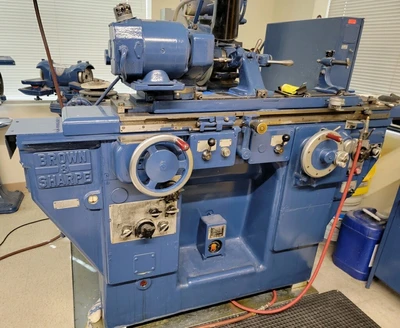

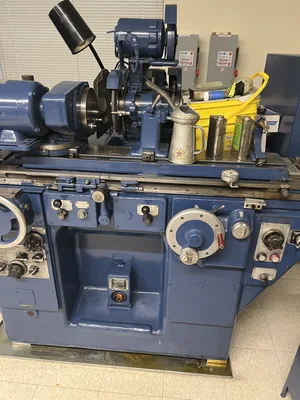

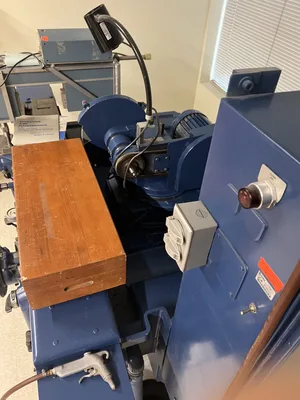

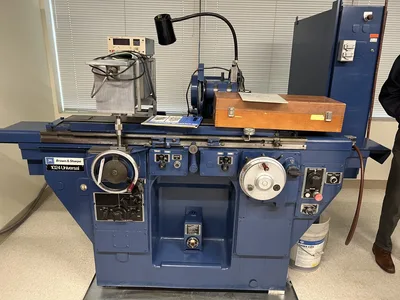

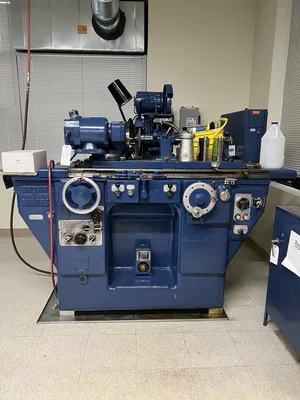

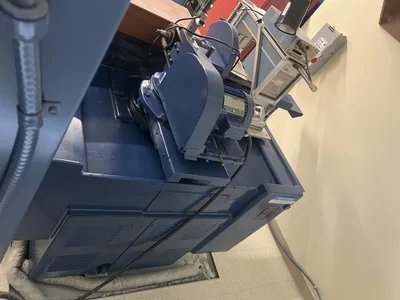

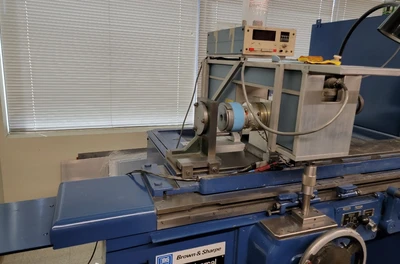

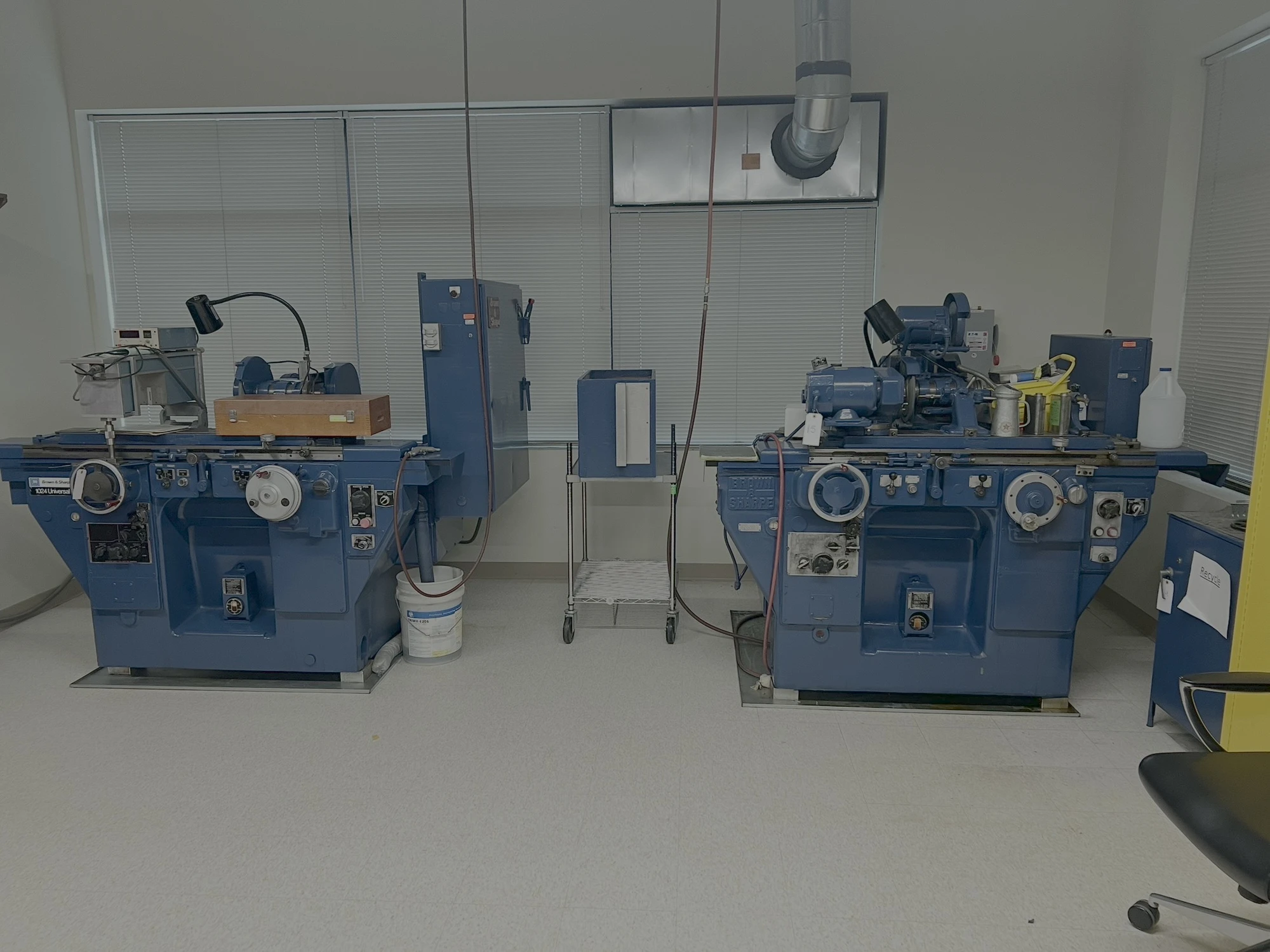

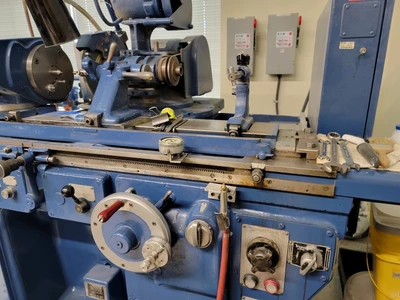

10″ X 24″ BROWN & SHARPE UNIVERSAL CYLINDRICAL GRINDER
MODEL: 1024U
SWING OVER TABLE: 10″

DISTANCE BETWEEN CENTERS, NOMINAL: 24″

DISTANCE BETWEEN CENTERS, MAXIMUM: 26-3/4″
WHEELHEAD SPINDLE SPEEDS (3) …… 2100, 2400& 2800 RPM

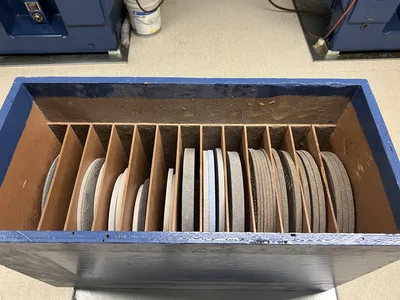

GRINDING WHEEL SIZE …………………… 12″ X 1″ X 5″

MINIMUM GRINDING WHEEL WIDTH …………………… 3/8″

SWIVEL AT THE WHEELSLIDE ……….. 90 DEGREES EITHER WAY

WHEEL SPINDLE SWIVELS ………….. 90 DEGREES EITHER WAY
INFINITELY VARIABLE SPINDLE SPEEDS …….. 60 TO 600 RPM

HEADSTOCK SPINDLE NOSE TAPER ………………….. A2-5″

HEADSTOCK SWIVELS EITHER SIDE OF ZERO ……… 90 DEGREES
INFINITELY VARIABLE TABLE SPEED ………. 3″ TO 150″ IPM

TABLE PER REV. OF HANDWHEEL:

SLOW ………………………………………… 0.1″

FAST ………………………………………… 1.5″

DWELL AT EACH OR ALTERNATE TABLE REV. ….. 0 – 2-1/2 SEC.

TABLE SWIVEL, SCALES FOR ANGULAR SETTING …… 8-1/4 DEG.

SCALES-TAPER PER FT. ………………………… 3-1/2″
MAX. TRAVEL OF WHEELSLIDE ………………………. 5″

CROSSFEED HANDWHEEL GRAD. ………………….. 0.00002″

AUTOMATIC CROSS FEED, REDUCTION IN DIAMETER

OR WORK AT EACH OR ALTERNATE REVERSALS .. 0.0001″ – .003″

HAND FEED PER REV. OF HANDWHEEL:

SLOW ………………………………………… 0.1″

FAST ………………………………………… 0.3″
TAILSTOCK SPINDLE TAPER …………………….#7 JARNO

TAILSTOCK SPINDLE TRAVEL ………………………. 5/8″
APPROXIMATE WEIGHT ………………………. 5,100 LBS
MACHINE FEATURES:

DUAL RIGHT OR LEFT END WHEEL MOUNTING

SWIVELLING AT WHEEL SPINDLE HEAD OR AT THE WHEEL

SLIDE PERMITS ANY COMPOUND SETTING REQUIRED IN

COMBINATION STRAIGHT AND TAPER GRINDING,

EXTERNAL OR INTERNAL ( no Internal Assembly ).
INFEED HANDWHEEL GRADUATED TO READ TO 0.000020″

HYDRAULIC TABLE TRAVERSE

AUTO INFEED OF WHEELHEAD @ TABLE REVERSALS

POWER RAPID WHEELHEAD ADVANCE & RETRACTION

ADJUSTABLE TABLE DWELL

SELF-CONTAINED HYDRAULIC SYSTEM

EQUIPPED WITH:
B & S “HYDROSTATIC” WORKHEAD w/DUAL DEAD/LIVE

HEADSTOCK SPINDLE

COOLANT SYSTEM

MOTORS ARE 3/60/230 VOLTS
