USED HAAS TL-2

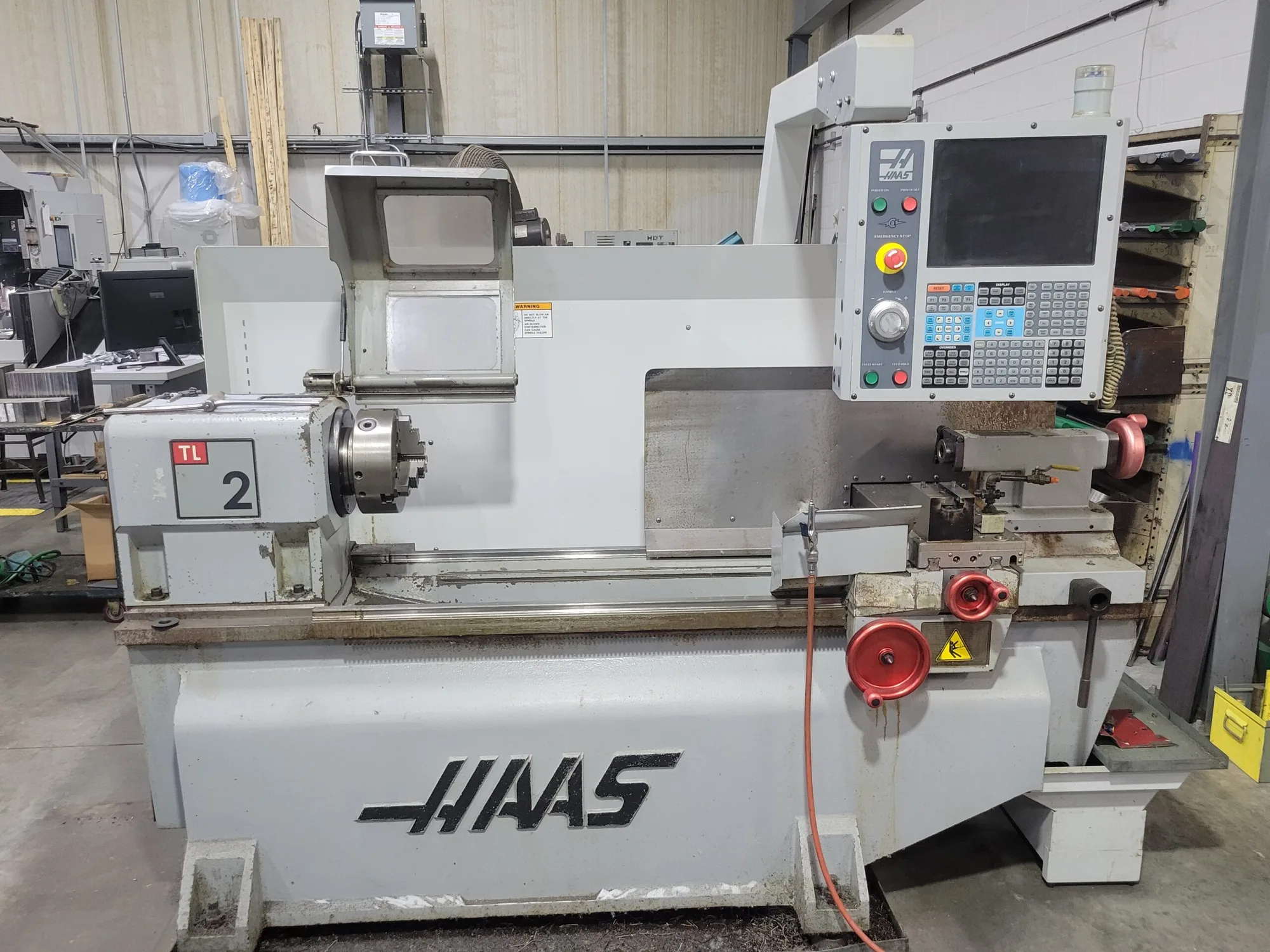

HAAS TL-2 CNC Lathe

New: 2007
SPECIFICATIONS:
SWING 20″

MACHINING LENGTH 48″

# AXIS 2

CHUCK SIZE 8″

BAR CAPACITY 2.3″

POWER 10 hp

MAX RPM 1,800 RPM

TURNING DIA 16″

TAILSTOCK ‘Yes’

LIVE TOOLING ‘No’

SUB SPINDLE ‘No’

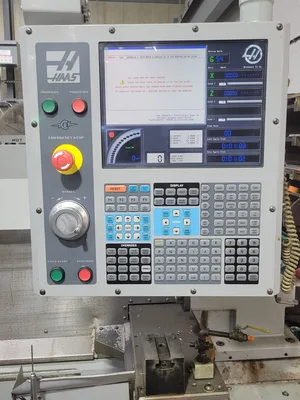

CONTROL CNC (Haas)

DIMENSIONS 110″ x 69″ x 83″

WEIGHT 4480#

Swing: (open front apron) 20″

Swing: (over cross slide) 11″

Chuck Size: 8″

Max Cutting Diameter: (w/tool post) 16″

Max Cutting Length: (w/tool post) 48″

Distance Between Centers: 48″

Travels:

X Axis: 8″

Z Axis: 48″

Feed Rates:

Rapid on X Axis: 450 IPM

Rapid on Z Axis: 450 IPM

Spindle Nose: A2-5

Bar Capacity: 2.3″

Spindle Speed: 1800 RPM Max

Motor: 10 HP / 1800 rpm / Direct Speed, Belt Drive
