USED HEALD - CINCINNATI MILACRON 273A

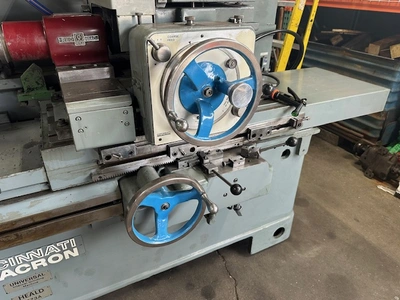

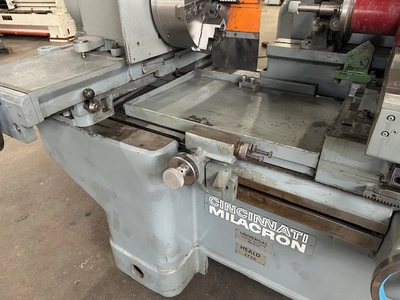

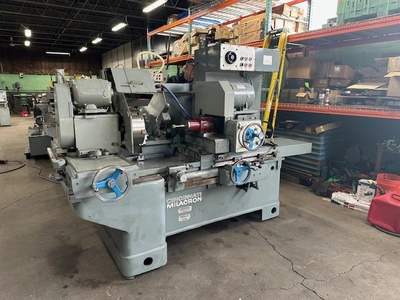

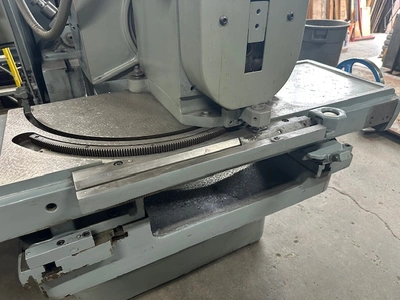

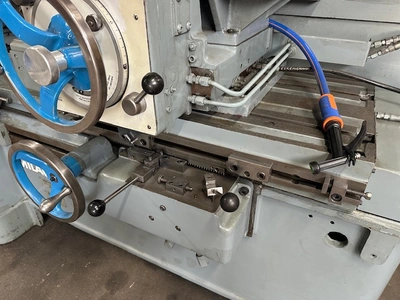

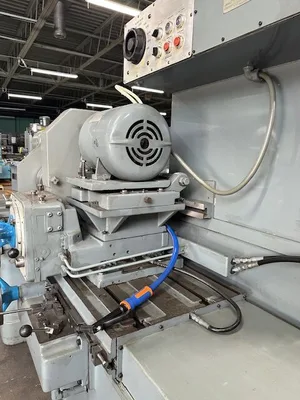

Heald 273A Universal Internal Grinder

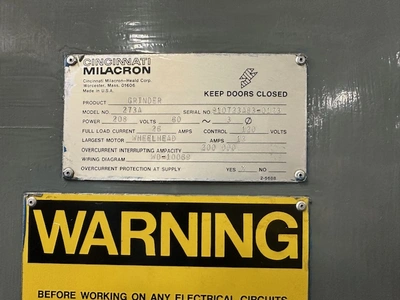

Serial Number: 910723A83-0123

12″ Extended Base
SPECIFICATIONS:

Swing over Table: 24.5″ *

Angular adjustment of Workhead: 90 Degrees

Workhead Cross Slide Travel: 11 1/2″

Table Travel: 20″ Max.

Wheelhead Cross Slide Travel: 1 1/2″

Table Speed Range: 0 to 18 FPM

Rapid Traverse of Table: 18 FPM

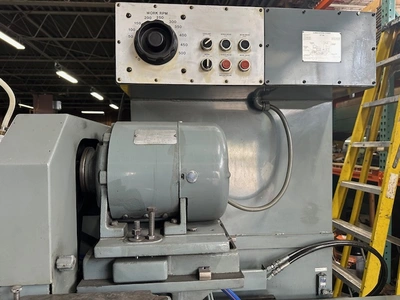

Workhead Speeds from 0 to 500 RPM, Variable
EQUIPPED WITH:

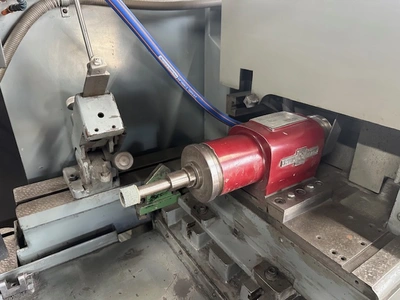

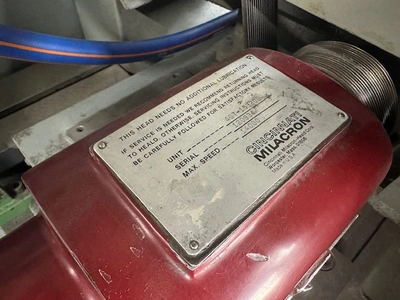

Red Head Spindle – 14,000 RPM

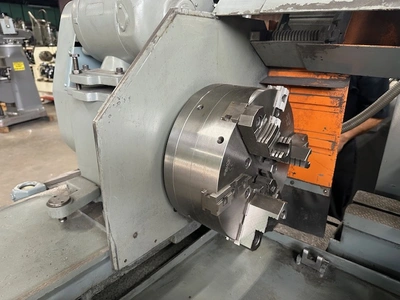

6 Jaw Chuck

Table mounted dresser

12″ Extended base

Workhead Sine bar

4 Barrel Stop / Facing Attachment

Hydrostatic Ways

Forward & Reversing Switch for Workhead

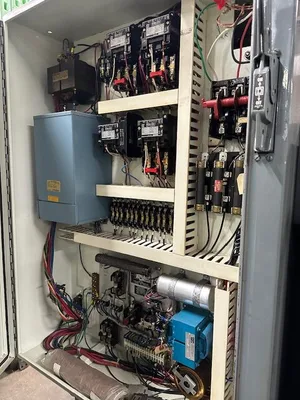

Electrical Motors & Controls Voltage 208/3/60

Dimensions: FB X RL – 62″ X 92″

Height: 77″

Est. Weight: 7,000 lbs

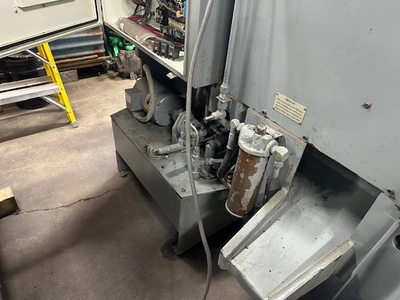

Coolant Tank & Pump
