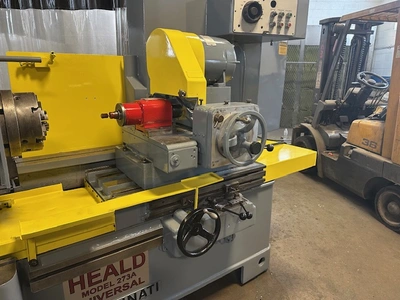

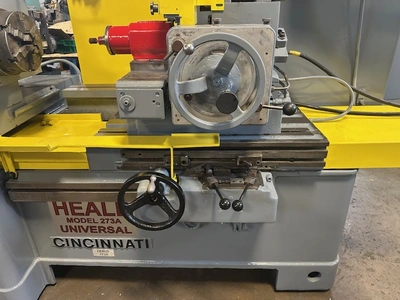

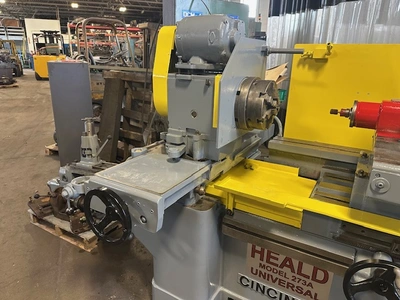

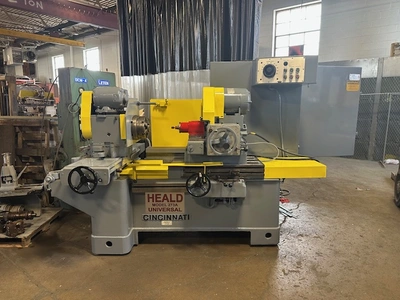

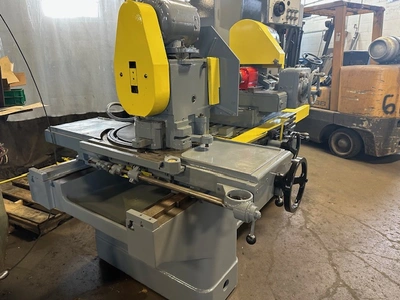

HEALD MODEL 273A UNIVERSAL INTERNAL GRINDER
w/ 12″ Extended Base & 4″ Risers

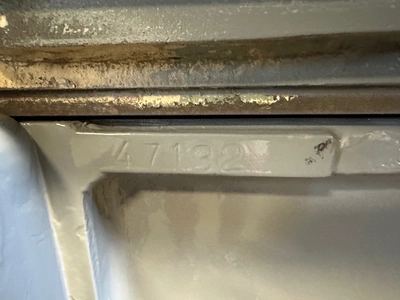

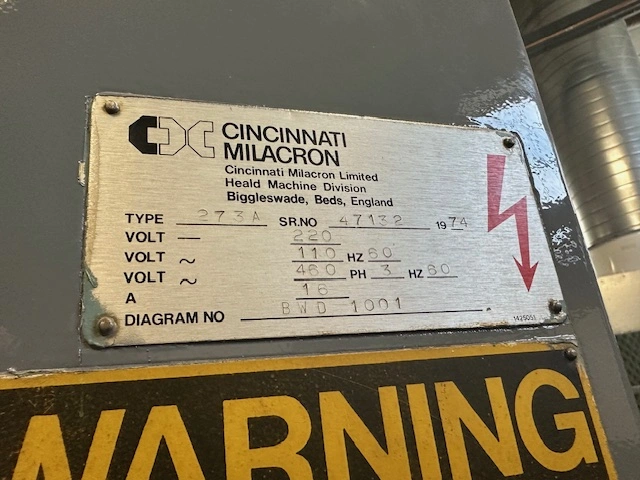

Serial Number: 47132
SPECIFICATIONS:
Swing over Table: 28”
Angular adjustment of Workhead: 90 Degrees
Workhead Cross Slide Travel: 11 1/2″
Table Travel: 20″ Max.
Wheelhead Cross Slide Travel: 1 1/2″
Table Speed Range: 0 to 18 FPM
Rapid Traverse of Table: 18 FPM

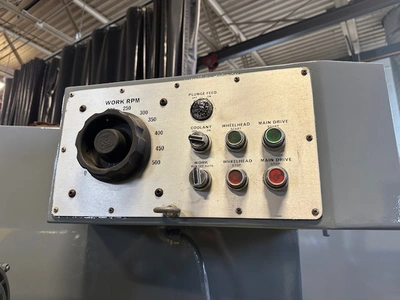

Workhead Speeds from 0 to 500 RPM, Variable
EQUIPPED WITH:
Table mounted dresser
4” risers
12″ Extended base
Workhead Sine bar
Hydrostatic Ways

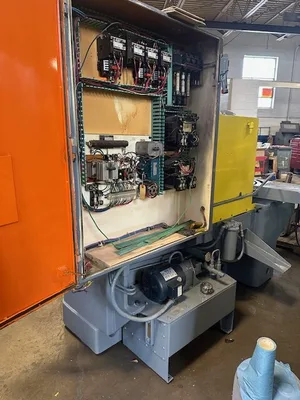

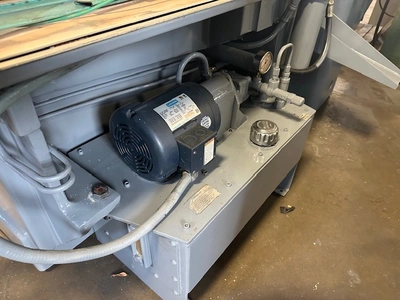

Electrical Motors & Controls 220/3/60
Dimensions: FB X RL – 62″ X 92″
Height: 77″
Est. Weight: 7,000 lbs
