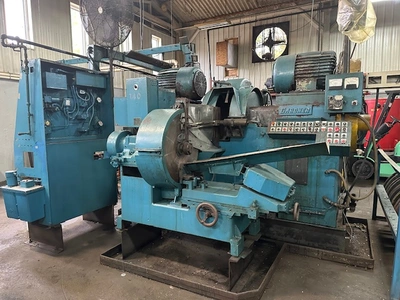

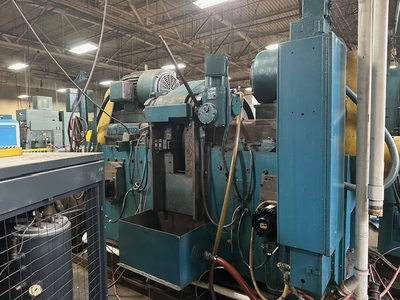

SDG5-30 GARDNER HORIZONTAL OPPOSED DOUBLE DISC GRINDER

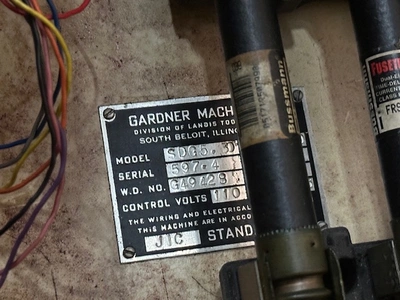

S/N 597-4
SPECIFICATIONS:

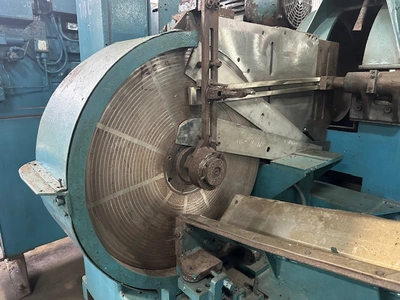

30″ Abrasive disc diameters.
3″ Abrasive disc thickness.
15″ Max. opening.
Servo incremental feed
MACHINE FEATURES AND EQUIPMENT

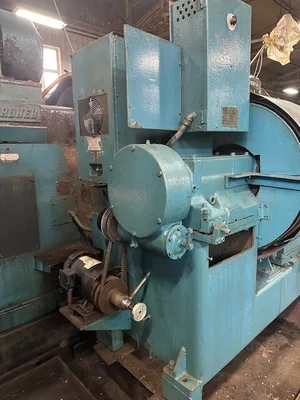

RH Spindle motor drive 60 HP.
LH Spindle motor drive 60 HP.
Magnetic Rotary Fixture

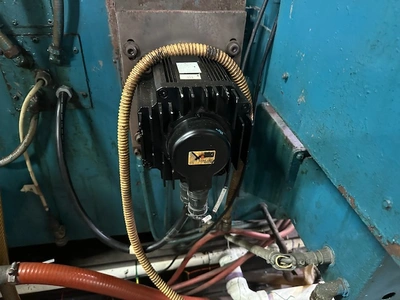

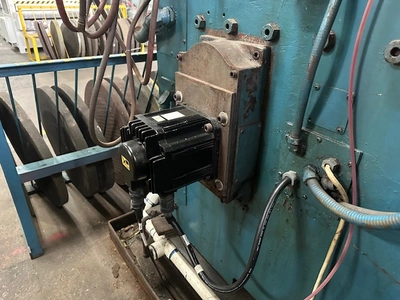

Servo Infeeds

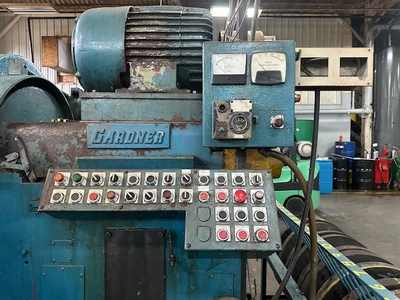

Push button control station.

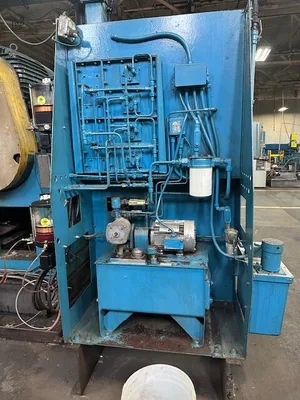

Hydraulic hood raising assist.
Swing arm wheel dresser.

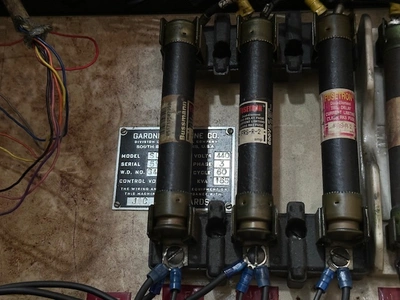

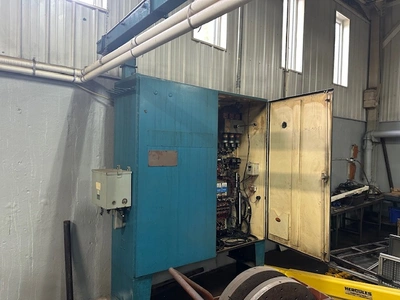

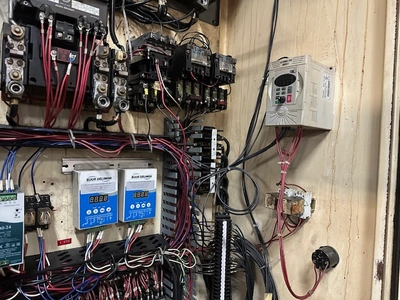

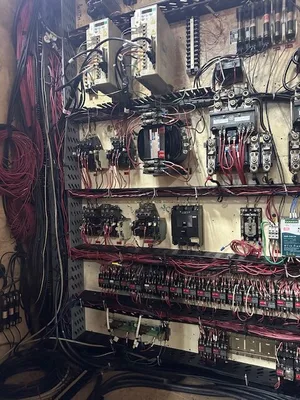

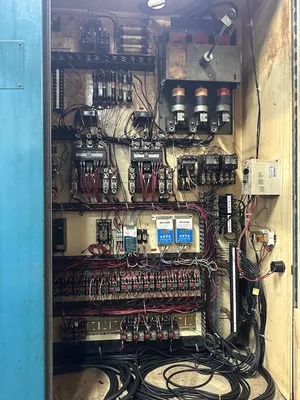

Free standing electrical cabinet
480 V / 3 Phase / 60 Cycle
Weight: 22,500 lbs.
Machine Converted to Servo Feeds, Ball Screws & Rebuilt Drive Boxes in 2021
