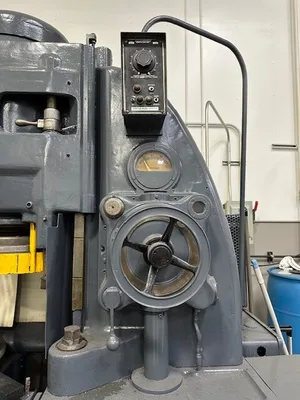

USED BLANCHARD 18-36

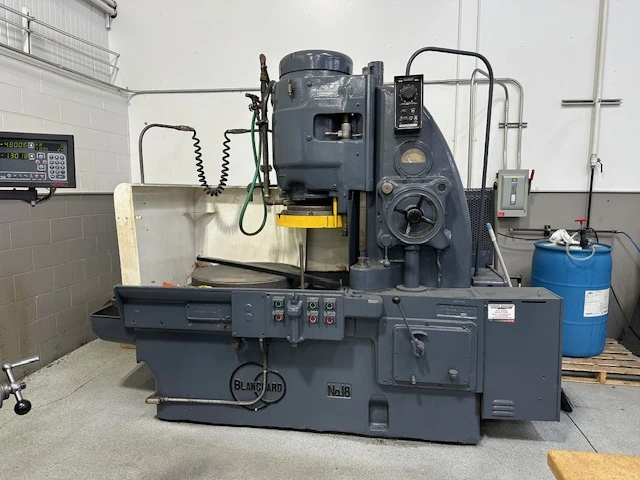

Blanchard Vertical Spindle Rotary Surface Grinder

Model: 18-36

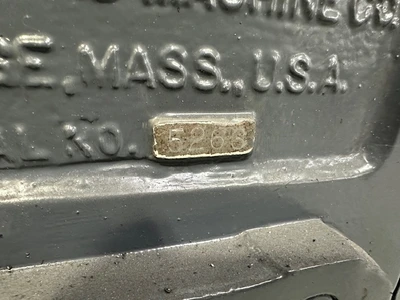

Serial Number: 5266
SPECIFICATIONS:

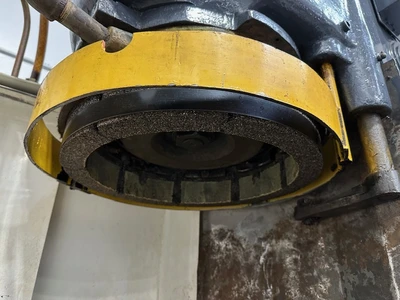

Grinding Wheel Diameter 18″

Magnetic Chuck, Diameter 36″

Magnetic Chuck, Work Load Capacity 3000 LBS

Grinding Wheel Speed 720 RPM

(6) Chuck Speeds, Range 6 to 33 RPM

Power Down Feed, Range .005 to .080 IPM

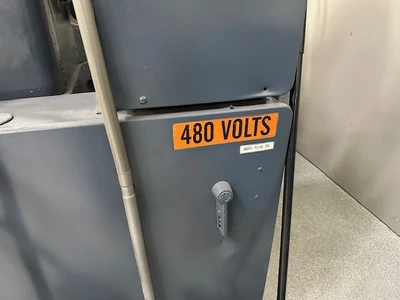

Electrical System 480/3/60

Overall Dimensions, W x D 112″ x 65″

Weight Approximately 12900 LBS

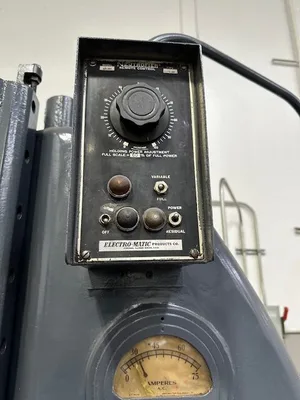

Neutrofier Chuck Control

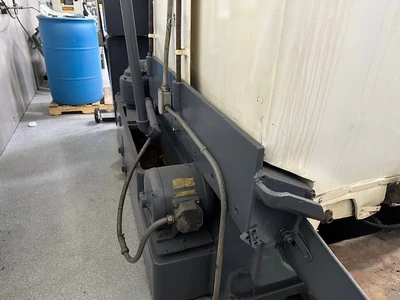

Wet Base Coolant
Machine was gone through 2024

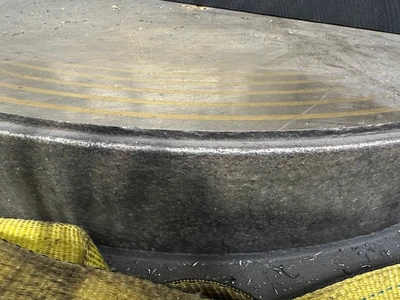

Chuck Reworked

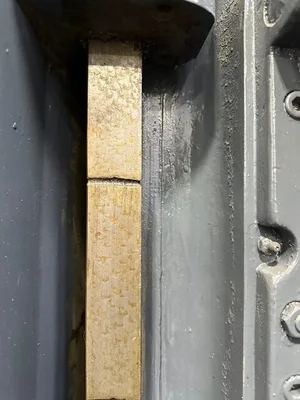

Ways Scraped
