USED HEALD 261

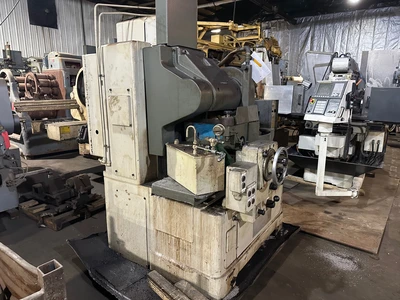

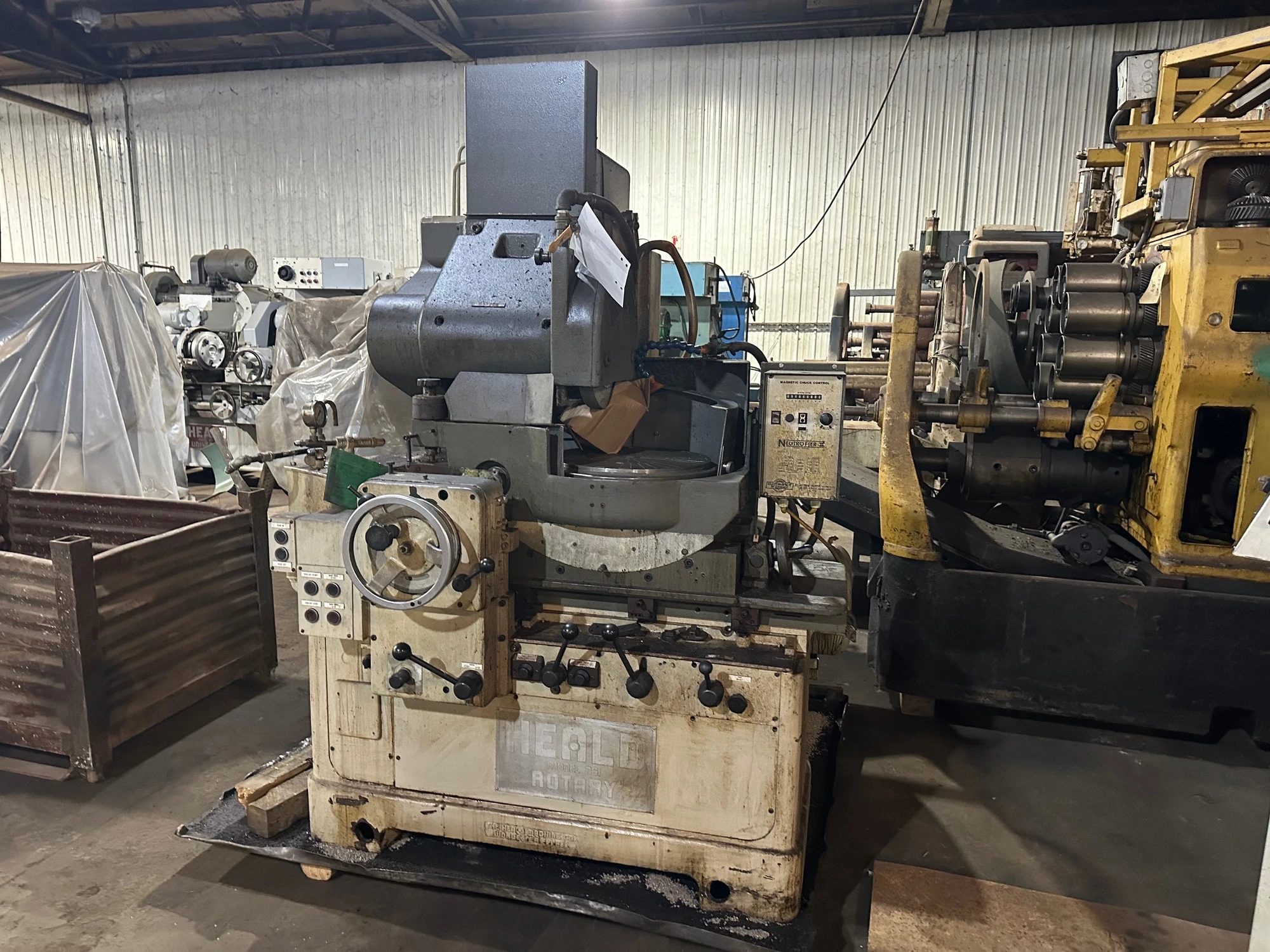

Heald 261 Horizontal Spindle Rotary Surface Grinder
Specifications:

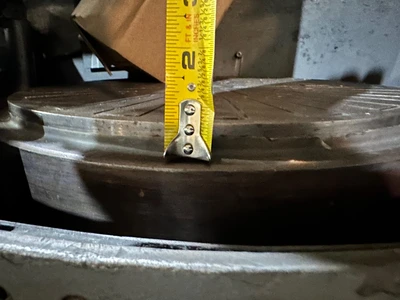

Table Magnetic Size: 17″

Swing Inside Pan: 18 1/2″

Wheel Size: 14″ x 1″ x 5″

Spindle Drive: 15 HP

Distance Top of Chuck To Center Of Grinding Wheel: 17 1/2″

Max & 4 1/2″ Min

Table Travel: 12″

Grinding Stroke: 8″

Max Angle Convex: 17 deg & Max Angle Concave: 10 deg

Chuck Speed: 50 to 225 RPM

Wheel Speed: 1680 RPM

Table Speed Grinding: 0 to 35 FPM

Table Speed Runout: 0 to 20 FPM

Power Feed Adjustment: .0001 to .0006 By .0001

Lubrication System

Coolant Tank & Pump
