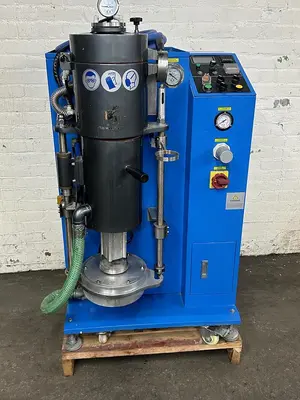

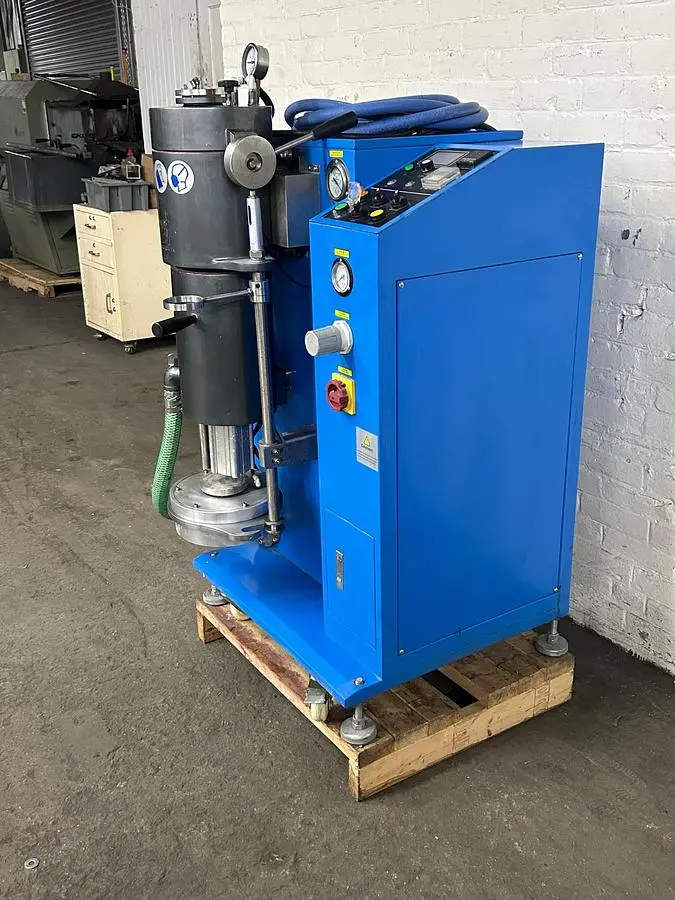

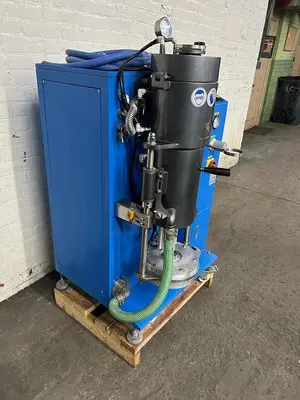

USED 2020 SUPERBMELT SPB-DM

SuperbMelt jewelry casting machine (SPB-DM), also known as an automatic casting machine for jewelry, can be used for casting any precious metal in the weight range of 1-6kg. Precious metals such as gold, copper, and silver, or any other metal artwork, can be processed with this product. The vacuum jewelry making machine is the ideal choice when it comes to an automatic casting machine for jewelry. It offers exceptional speed and energy efficiency.

SuperbMelt jewelry casting machine (SPB-DM) ensures that you’ll never have to bother about density, shrinkage or air hole in your final piece. The casting machine comes with gas chamber which releases pressurized inert gases. This completely eliminates any of form of porosity or shrinkage. Thereby giving your final piece an impeccable appearance and a touch of class.

Strong induction stirring makes the gold alloy more uniform

Voltage: 220V/Single phase 50/60Hz
Power: 8.5 kw
Casting system: Vacuum pressure casting system
Applicable metal: Gold, Silver, Copper, Brass, Bronze, and their alloys
Melting time: 3-5 min
The Max capacity: 24K Gold: 2.0 kg, 18K Gold: 1.5kg, 925 Silver: 1.0 kg
Max temperature control R-type: 1600℃
Max. temp control k-type: 1100℃
Dimension: 720 x 700 x 1150 mm
Control of temperature: by PID
Pressure applied: Max. 0.25 Mpa
Protective gas: Nitrogen or Argon
Vacuum pump: 63 m³/hour
Oscillation: Induction heating
Max flask size: D101 x H254 mm
Ultimate vacuum: 10hPa
Accuracy of temperature: ±2 degrees Celsius
Vacuum filter: Yes
Vacuum leakage detector: Yes
Flask check before casting: Yes
Flask and chamber lift: Yes
