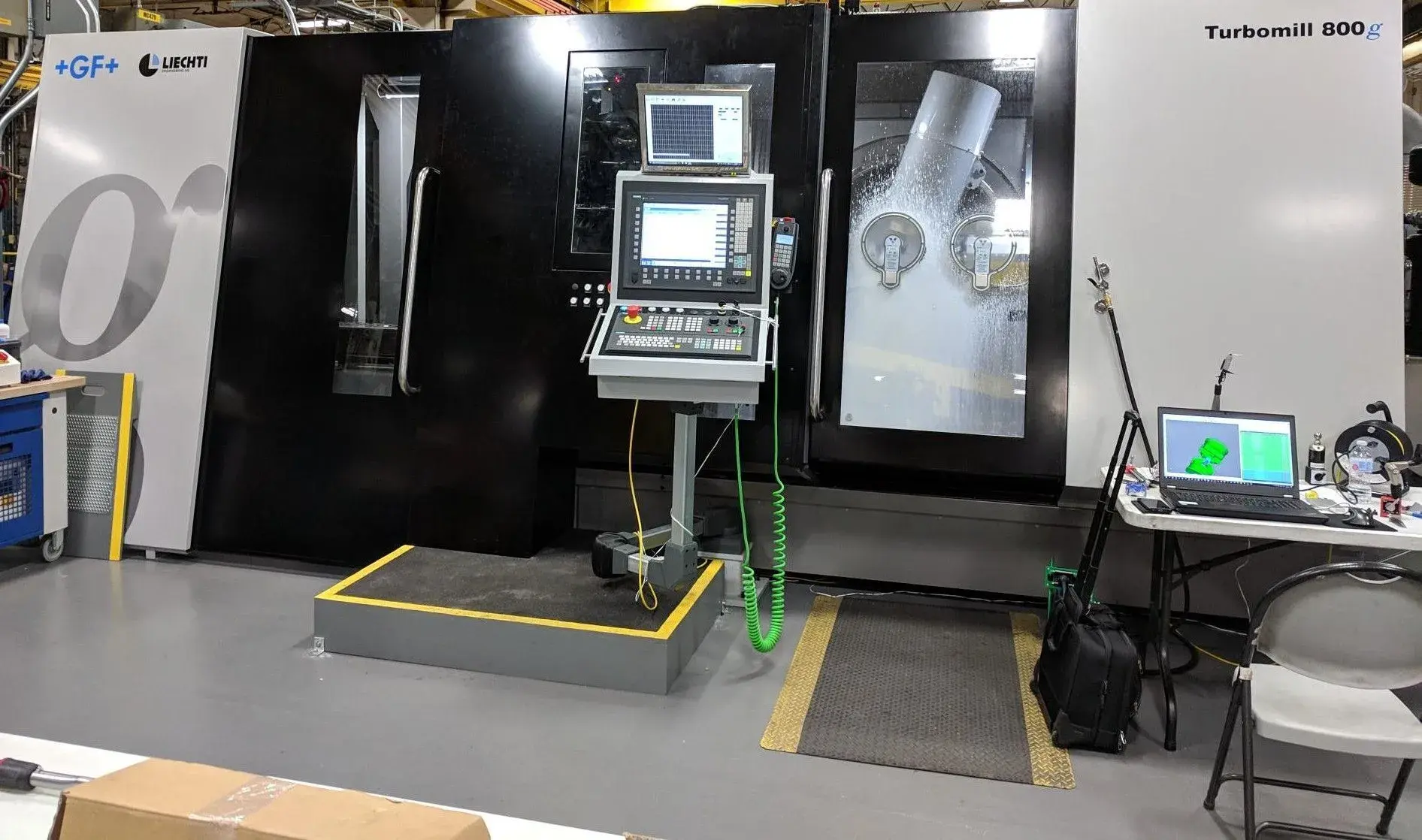

USED 2018 LIECHTI TURBOMILL 800G
Overview
Liechti Turbomill 800G 5 Axis High Speed Machining Center (2018), This low utilization Liechti Turbomill 800g 5 Axis High Speed Machining Center is a highly dynamic five-axis milling machine with maximum axis
acceleration, designed for high-speed milling in 5 axes.
This milling machine is used for the rough and fine machining of complex shapes, especially in the
engine and turbine industry (turbine blades), in mold making (die production) and in aeronautical
engineering (airframe components)
Specs
Liechti Turbomill 800G 5 Axis High Speed Machining Center (2018)
Axes: X,Y,X,A/B
Max. Blade Length 800 mm (31.5")
Max. Swing Diameter 450 mm (17.7")
Spindle Speed 19,000 rpm
Spindle Power/Torque. 37 HP 28 kW / 200 Nm
Spindle Interface HSK-A63
Tool Magazine 60 positions
Work Piece Magazine 16
Control System Siemens 840D-SL
Axis Travels and Dynamics
X-Axis (Longitudinal): 1,370 mm
Y-Axis (Cross): 450 mm
Z-Axis (Vertical): 400 mm
A-Axis (Rotary): 360° endless rotation
B-Axis (Swivel): 100° swivel head
Feed Rates: Up to 55,000 mm/min for X, Y, and Z axes
Feed Ranges
X- Axis 0-55,000 mm/min
Y- Axis 0-55,000 mm/min
Z- Axis 0-55,000 mm/min
A- Axis 0-72000 mm/min
B-Axis 0-18000 mm/min
Tool Pivot Point (TPP): Concentrates all control axes at the cutting tool tip for superior high-speed contouring.
Direct Drive Motors: Used on all five axes to ensure high accuracy and stability.
Current Electrical Arrangement 400/3/60
Machine Dimensions 314" x 177" x 125"
Machine Weight 48500 LBS
Equipped With
Siemens 840D-SL CNC Control
Parts loader option and lots of tooling, extra chucks
Approximately 50 holders
(2) Additional Chucks
Loader racks
Parts Loader
Renishaw probe
Blume probe
Capable of machining hard metal inconel stainless steel 17-4. Able to machine a complete turbine blade from a solid block.
Replacement Cost is $2.9MM
