USED COE CPR-P0-2512 / CPPS-225-12 / CPRE-M12PLUS

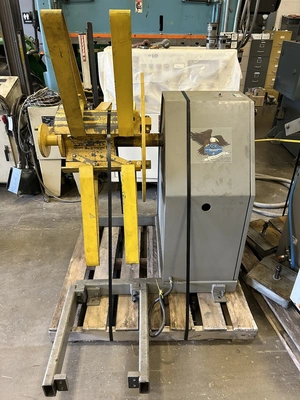

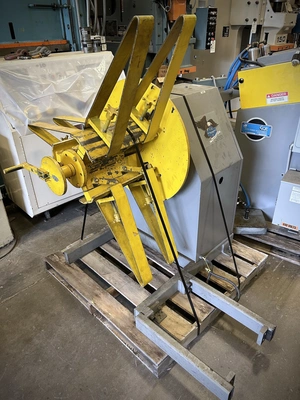

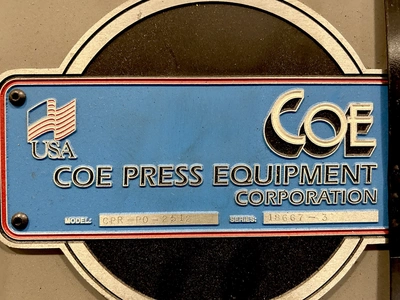

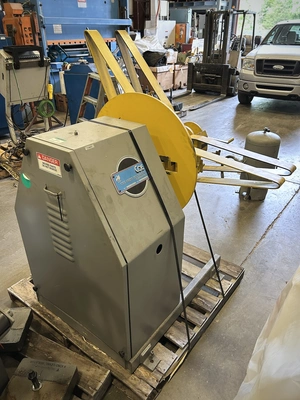

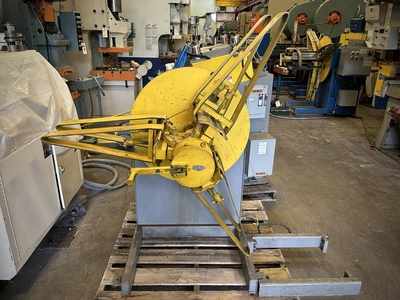

non motorized coil reel: coe model cpr-p0-2512 s/n 18667-3
capacity: 12" wide x 2,500 lbs
max coil od: 54"
coil id: 16 - 21"
heavy duty backplate diameter: __

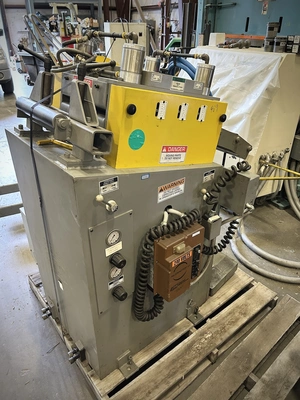

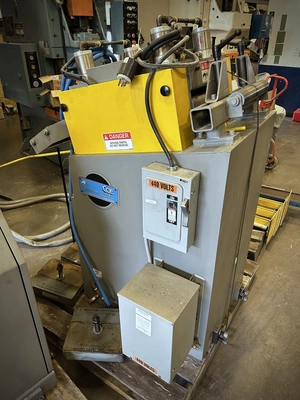

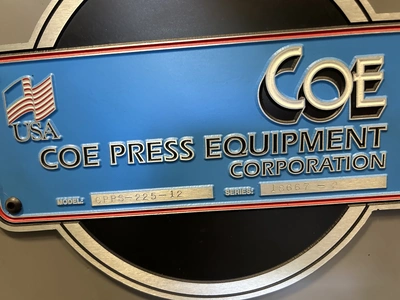

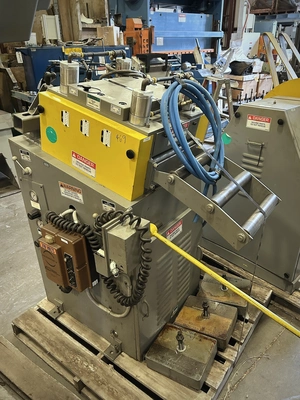

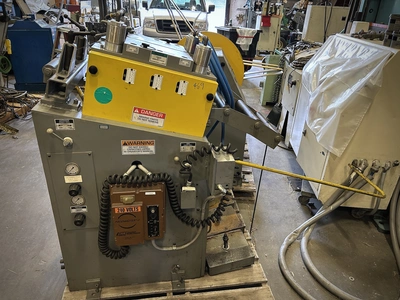

7-roll powered straightener: coe model cpps-225-12 s/n 18667-2
capacity: 12" wide x .020"-.090" thick
max speed: 125 fpm
number of rolls: 7 (4 over 3)
straightening rolls: 2.25" od
pinch & exit rolls: 3" od
electrics: 3 hp motor w/dc drive

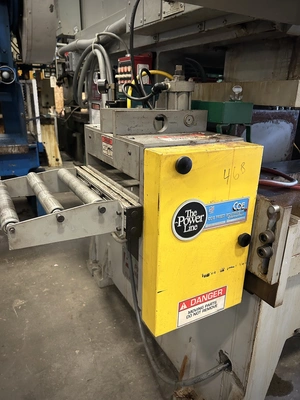

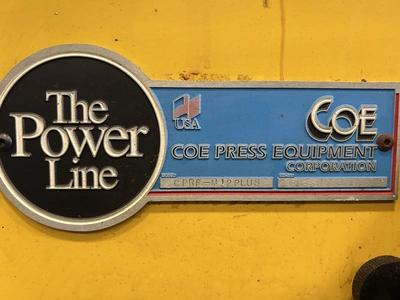

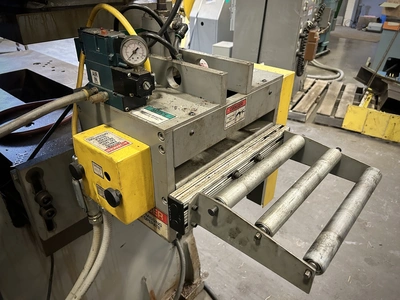

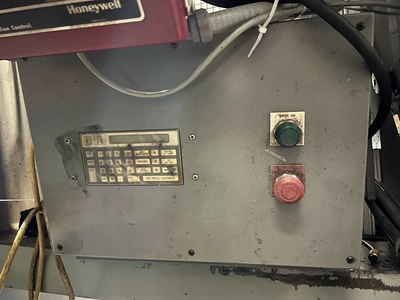

servo feeder: coe model cpre-m12plus s/n 18667-1
max thickness @ full width: .125" th x 12" wide
maximum velocity: 392 fpm
max acceleration: 80 fps
standard drive ratio: 3.0:1
Note: __
Location: This Used COE CPR-P0-2512 / CPPS-225-12 / CPRE-M12PLUS Complete Feedline is located in our Columbia, TN Warehouse

reel: steel fabricated cabinet, 3 pad mandrel, 3 coil keepers, manual expansion, & air brake straightener: independent roll adjustment, pneumatic pinch rolls adjustment straightener: slide & camp edge guides for accurate material alignment, worm gear adjustment of upper straightener rolls, remote jog pendant for material threading servo feed: high performance ac brushless servo motor, low inertia high torque servo motor & drive, precision cluster gear driven upper feed roll, press mount bracket with +/-3" adjustment
