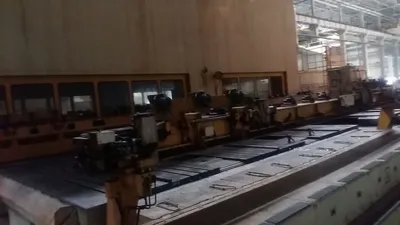

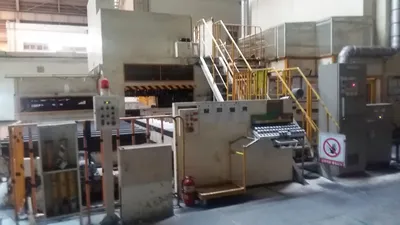

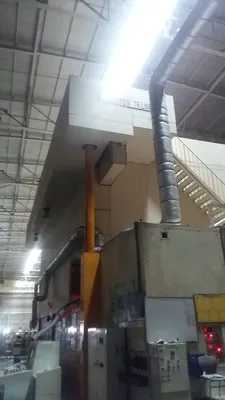

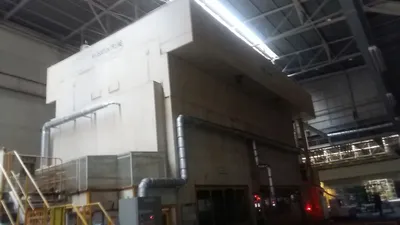

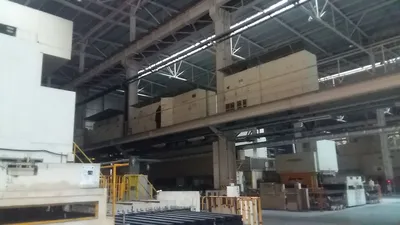

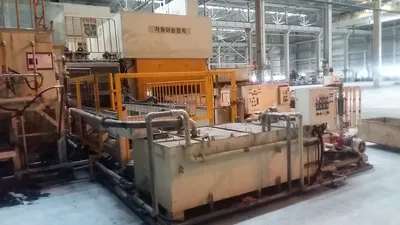

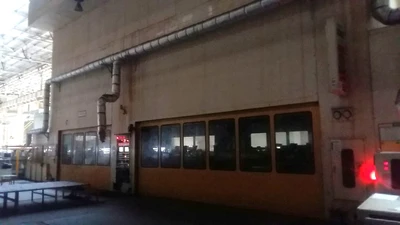

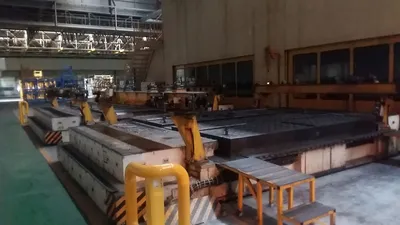

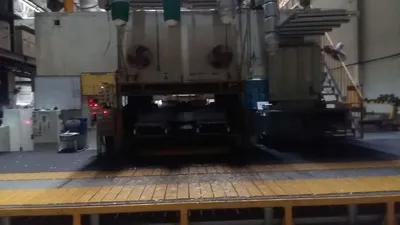

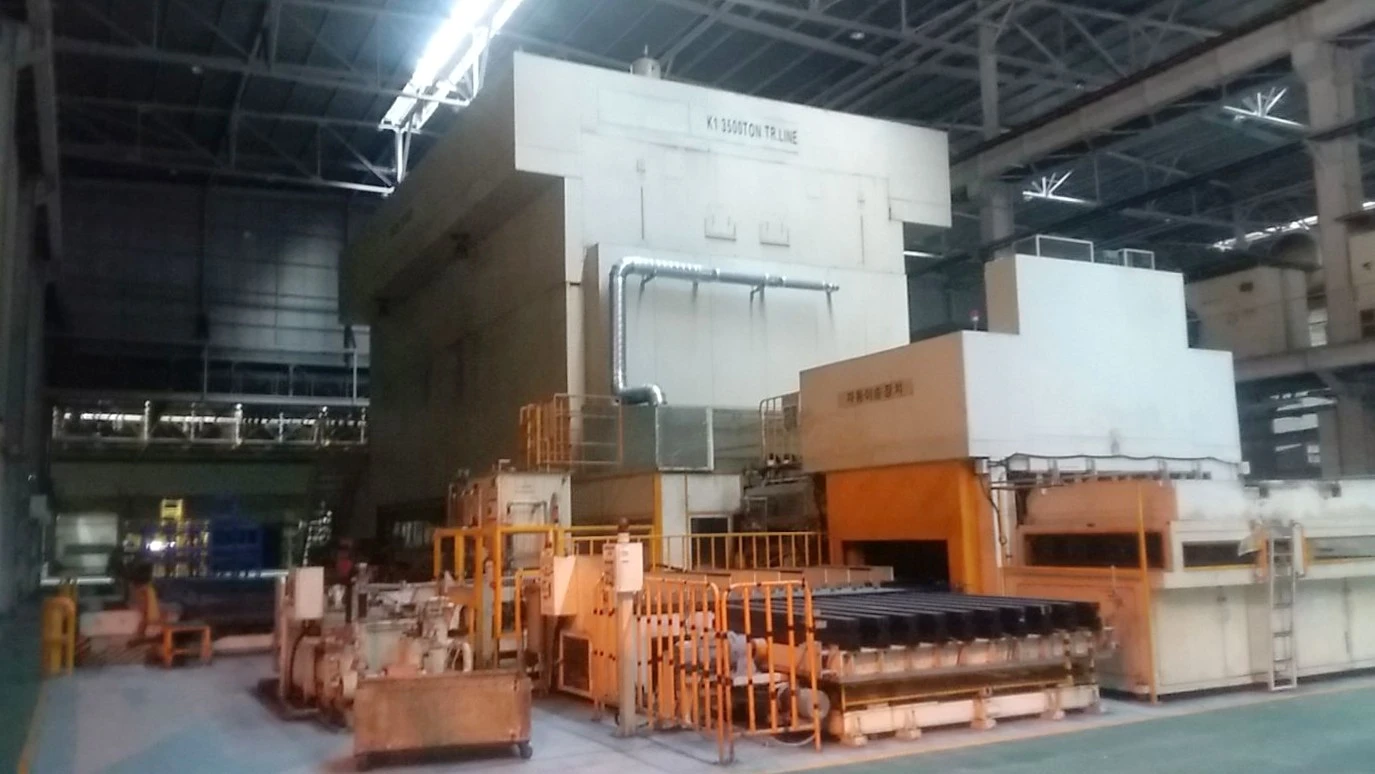

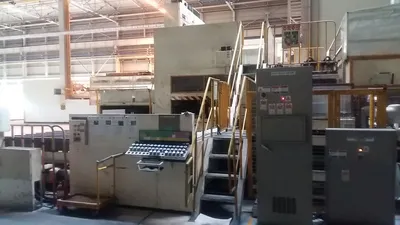

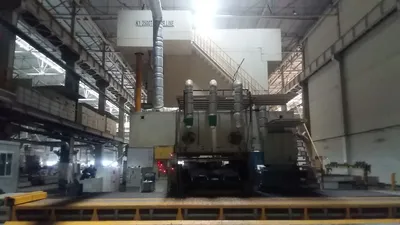

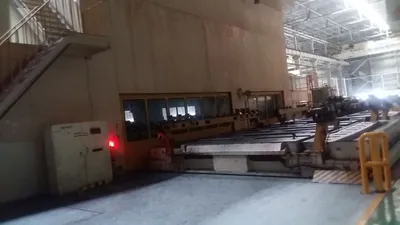

USED 1995 KOMATSU PRESSES KOMATSU K1 3500TON TR.LINE PRESS
Overview
Description
39.37" Stroke, 240" X 141" Bed Area, 8-16 SPM,
Specifications
STATION 1 / DIE SPACE 1: __
CAPACITY: 2,300 TON (2,535 US TONS)
STROKE: 39.37"
BED AREA: 157.48" X 141.73" (RL X FB)
RAM / SLIDE AREA: 165.35" X 141.73" (RL X FB)
STATION 1 CLEAR DISTANCE: 175.20"
STATION 1 M/B CARRIAGE CAPACITY: 50 TONS
STATION 2 / DIE SPACE 2: __
CAPACITY: 1,200 TONS (1,323 US Tons)
STROKE: 39.37"
BED AREA: 240.16" X 141.73" (RL X FB)
RAM / SLIDE AREA: 248.03" X 141.73" (RL X FB)
STATION 2 CLEAR DISTANCE: 257.87"
STATION 2 M/B CARRIAGE CAPACITY: 75 TONS
CUSHION CAPACITY: 200 TONS
CUSHION STROKE: 11.81" (EFFECTIVE)
CUSHION STROKE ADJUSTMENT: 0 - 11.81"
NUMBER OF STAMPING STAGES: 5
TRANSFER FEED STROKE: 82.68"
TRANSFER CLAMP STROKE: 19.69"
TRANSFER LIFT STROKE: 9.84"
CLAMPER TRAVELING STROKE: 51.18"
FEED BAR INNER DISTANCES: 141.73", 129.92", 118.11", 106.30", 94.49", 82.68", 74.80", 70.87"
BLANK LENGTH: 7.87" (15.75") TO 70.87"
Note: __
Location: This Used Press is Located in Our **On Location**
Equipped With

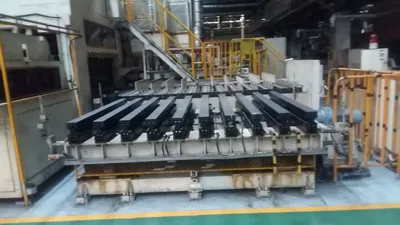

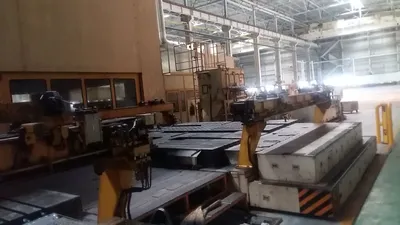

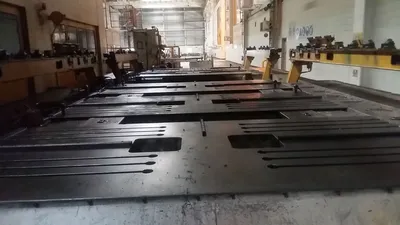

5-STAGE TRANSFER FEED SYSTEM, DUAL DIE SPACES WITH INDEPENDENT MOVING BOLSTERS (50-TON AND 75-TON CAPACITIES), 200-TON BED CUSHION, AND FULL BLANK HANDLING CAPABILITIES.
