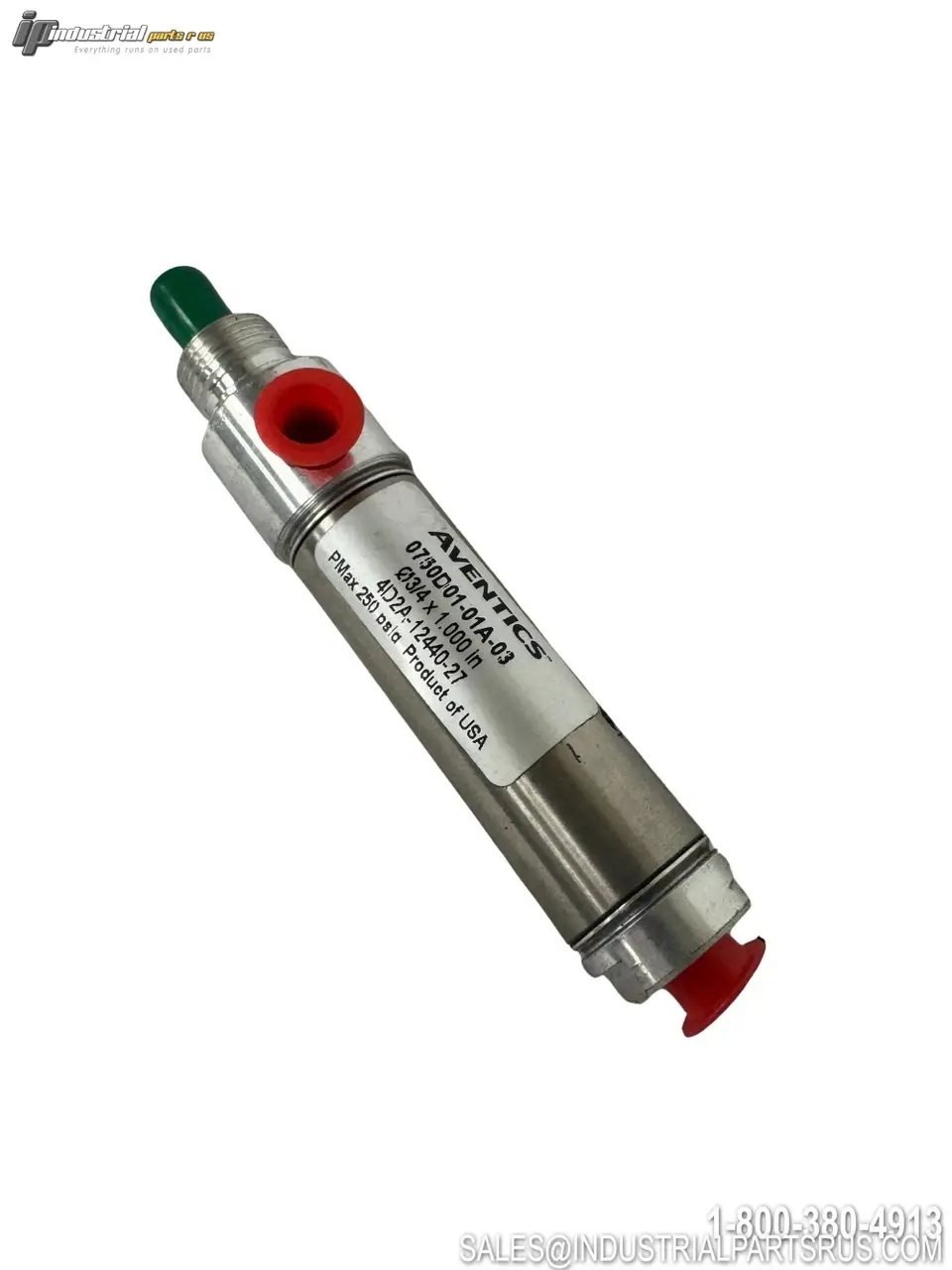

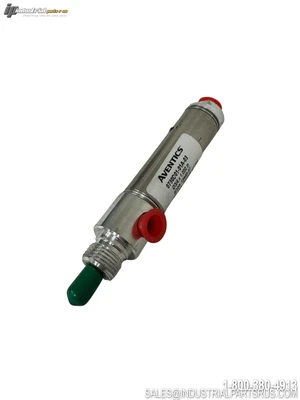

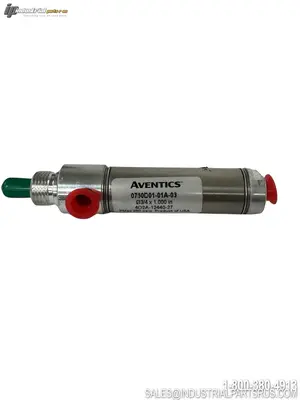

NEW AVENTICS 0750D01-01A-03

The Aventics 0750D01-01A-03 is a Round Line M Series pneumatic cylinder designed for light-duty industrial applications. This stainless steel bodied cylinder features a 3/4" bore and 1" stroke with double acting operation, nose mounting configuration, and includes a magnetic piston for position sensing.
Specification
Value
Brand
Aventics
Model/Part Number
0750D01-01A-03
Series
M Series
Bore Diameter
3/4" (0.75")
Stroke Length
1"
Cylinder Type
Double Acting
Mounting Type
Nose Mount (Front Mount)
Maximum Pressure
250 PSI (Air)
Piston Rod Material
303 Stainless Steel
Cylinder Tube Material
304 Stainless Steel
Head and Cap Material
Aluminum
Magnetic Piston
Yes (Option 03)
Port Size
1/8" NPTF
Operating Temperature Range
-10°F to +165°F (-23°C to 74°C)
Base Weight
0.24 lbs (0.21 + 0.03 lbs per inch)
Construction
Non-Repairable Round Line
We warranty all items for 30 days from date of purchase.

SKU: AI1534
UPC: 679523686222
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686222
Manufacturer: Aventics
Part Number: 0750D01-01A-03
Shelf: A-15
Bore Diameter: 3/4 in
Model: 0750D01-01A-03
MPN: 0750D01-01A-03
Type: Pneumatic Cylinder
