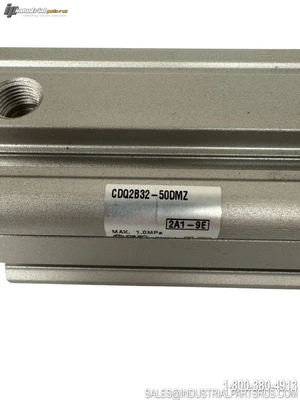

USED SMC CDQ2B32-50DMZ
Overview
Description

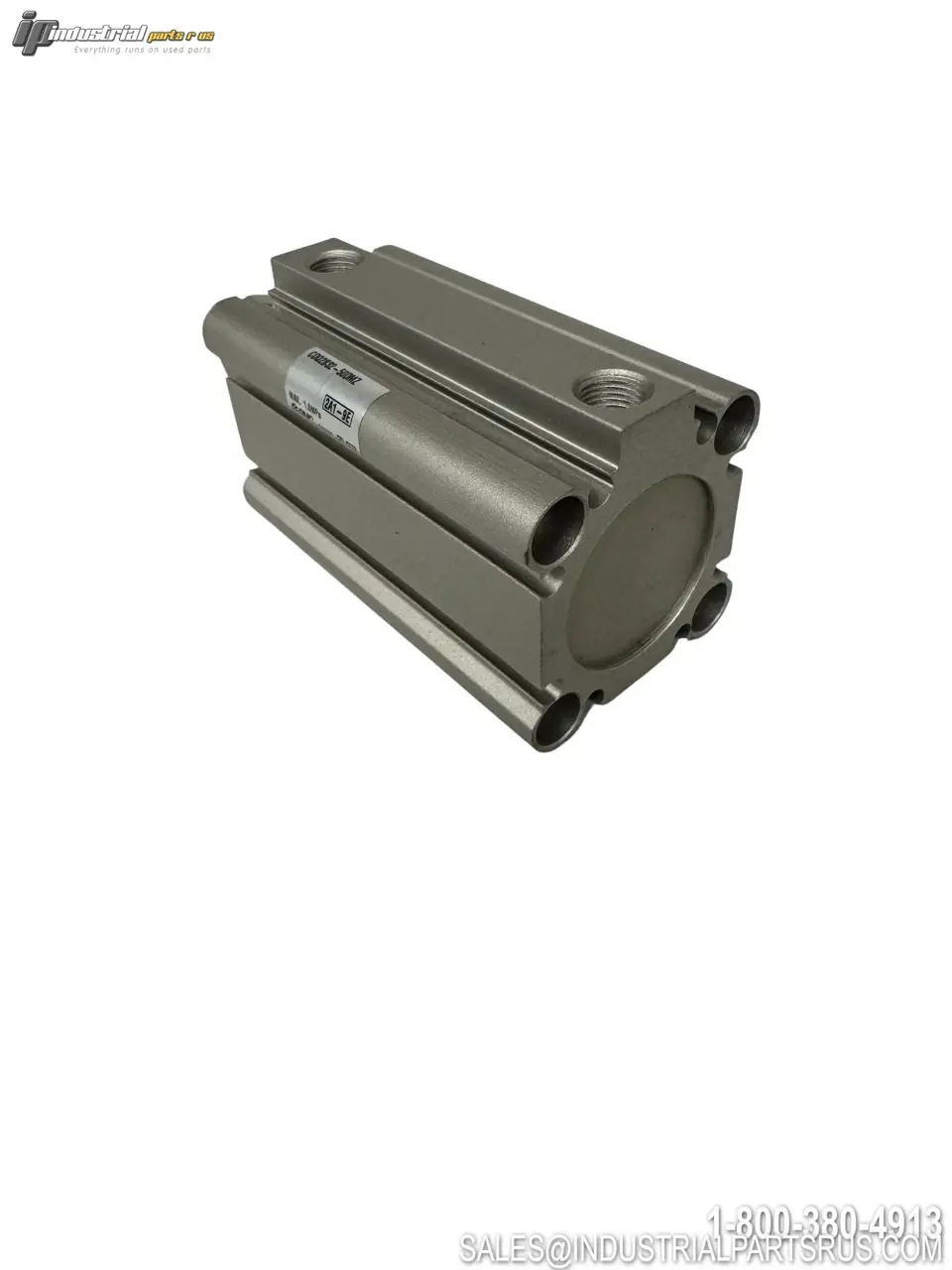

The SMC CDQ2B32-50DMZ is a compact pneumatic cylinder from the CQ2 series featuring a 32mm bore and 50mm stroke. This double-acting single rod cylinder includes a built-in magnet for position sensing and is designed with through-hole mounting configuration and rod end male threads.
Specification
Value
Brand
SMC
Model/Part Number
CDQ2B32-50DMZ
Product Series
CQ2 Z
Cylinder Type
Compact Pneumatic
Bore Diameter
32mm
Stroke Length
50mm
Action Type
Double Acting
Rod Configuration
Single Rod
Built-in Magnet
Yes
Mounting Type
Through-hole (Standard)
Rod End Thread
Male Thread
Port Thread Type
Rc1/8"
Operating Pressure Range
0.05 to 1.0 MPa
Proof Pressure
1.5 MPa (218 psi)
Operating Temperature Range
-10°C to +60°C
Piston Speed Range
50-500 mm/s
Auto Switch Mounting
4 surfaces (32-100mm bore)
We warranty all items for 30 days from date of purchase.
Specifications
| Weight | 1.00 LBS | 1.00 LBS |
|---|
SKU: AI1535
UPC: 679523686246
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686246
Manufacturer: SMC
Part Number: CDQ2B32-50DMZ
Shelf: B-7
Bore Diameter: 32 mm
Model: CDQ2B32-50DMZ
MPN: CDQ2B32-50DMZ
Type: Pneumatic Cylinder
