SPECIFICATION:
Spindle Diameter: 5.375"
Vertical Head Travel, Y-Axis: 120"
Table Travel, X-Axis: 192"
Column Infeed Travel, W-Axis: 48"
Spindle Travel, Z-Axis: 35"
Spindle Speeds: 15-1500 RPM
Spindle Taper: CAT 50
Table Size: 60" x 192"
Table Weight Capacity: 60,000 LBS
Floor Space: 474" x 288"
Overall Height To Top of Pendant: 205.25"
Equipped With:

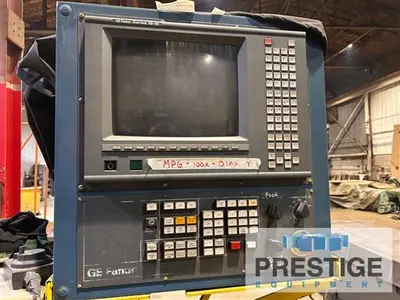

Fanuc 18-M CNC Control
Fanuc Red Cap Servo Motors

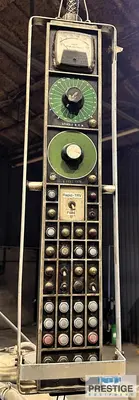

Full Pendant For Manual Operation

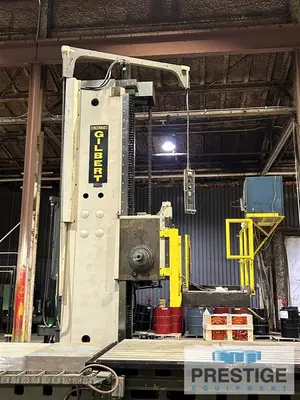

3-Way Column
Power Draw Bar
Ball Screws & Independent Servo Drives
Hardend Ways On All Axes
Sliding Steel Way Covers on X-Axis
Right Angle Head
30 HP Spindle Motor
NOTE:
Reconditioned In 2018 Including, New Spindle Bearings, Re-Ground Bed and
Column Ways.
Features:
Fanuc 18M CNC Control
Machine Reconditioned in 2018 Including Reground Ways
Full Pendant Control For Manual & CNC Operation
T-Type Construction, No Pit Required
60,000 Lb Table Weight Capacity
