Used Trinity Industries 4,500 Gallon Stainless Steel Holding Tank | Admix Rotosolver High Shear Mixing System

Used Trinity Industries 4,500 Gallon Stainless Steel Holding Tank | Admix Rotosolver High Shear Mixing System. ADMIX Agitation System, CIP spray balls. 9 diameter x 11 long. Total height is 11 4". Admix Rotosolver high-shear mixer, model 180RS159SS. Based on Admix model numbering and published Rotosolver specs, this is a sanitary stainless high-shear disperser/emulsifier. Here are the likely specs for your unit: Spec Value Manufacturer Admix Series Rotosolver Model 180RS159SS Type In-tank sanitary high-shear mixer Construction Stainless steel (SS") Mixing head dia. ~6.25 in Standard motor size 20 HP Standard speed 1800 RPM Typical batch capacity Up to ~600 gal Max shaft length ~72 in Approx. weight ~500 lb Typical applications Powder wet-out, emulsifying, dispersion, gum hydration, food/pharma/cosmetics. Early 2000s vintage.

Used Equipment Facts About This Machine
Manufacturer: Trinity Industries
Equipment Type: Stainless Steel Holding / Mixing Tank
Capacity: 4,500 Gallons
Material: Stainless Steel
Condition: Used
Vintage: Early 2000’s

Description

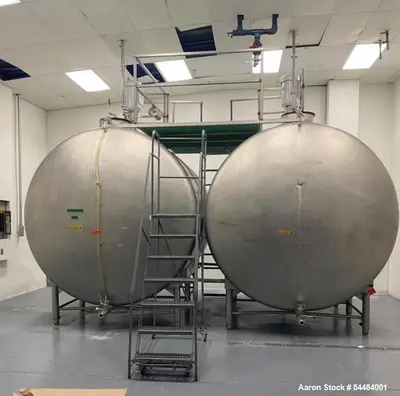

Used Trinity Industries 4,500 gallon stainless steel horizontal holding tank equipped with an ADMIX agitation and high-shear mixing system for sanitary blending, emulsification, and liquid processing applications. This vessel is ideal for food, beverage, pharmaceutical, cosmetic, and chemical processing operations requiring consistent product mixing and cleanability.

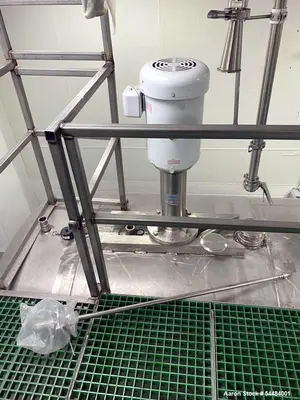

The tank includes CIP spray balls for efficient clean-in-place sanitation and features an Admix Rotosolver high-shear mixer, model 180RS159SS. The Rotosolver system is a sanitary stainless steel disperser/emulsifier designed for rapid powder incorporation, emulsification, dispersion, and gum hydration.
Powered by an estimated 20 HP motor operating at approximately 1800 RPM, the mixer delivers high-energy mixing performance suitable for demanding process applications. The tank’s horizontal design provides stable operation and efficient processing for batch production systems.

Specifications
Tank

Manufacturer: Trinity Industries
Capacity: 4,500 gallons
Orientation: Horizontal
Material: Stainless steel
Diameter: Approx. 9’
Length: Approx. 11’
Overall Height: Approx. 11’ 4”

Features

ADMIX agitation system
CIP spray balls
Sanitary process configuration

Admix High Shear Mixer Specifications

Manufacturer: Admix
Series: Rotosolver

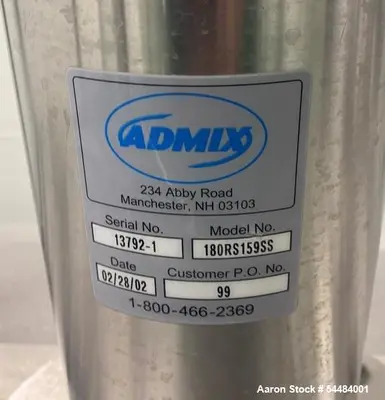

Model: 180RS159SS
Type: In-tank sanitary high-shear mixer
Construction: Stainless steel

Mixer Details

Mixing Head Diameter: Approx. 6.25”

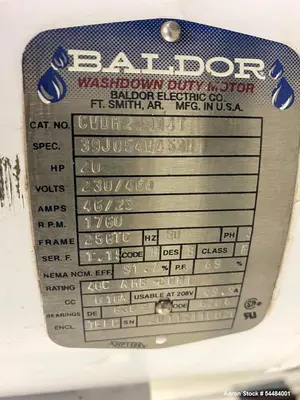

Estimated Motor Size: 20 HP
Speed: Approx. 1800 RPM
Typical Shaft Length: Approx. 72”
Approximate Weight: 500 lbs

Typical Applications

Powder wet-out
Emulsification
Dispersion
Gum hydration
Food processing
Pharmaceutical processing
Cosmetic production

Applications
Ideal for sanitary mixing, blending, emulsification, and liquid holding applications.

Products This Equipment Would Be Used For

Sauces and dressings
Dairy products
Beverage concentrates
Cosmetic creams and lotions
Pharmaceutical liquids
Food ingredients
Syrups and flavorings
Nutraceutical products
Chemical emulsions
Personal care products
