USED GEA PROCESS ENGINEERING PMA 600 ADVANCED

Manufacturer: GEA
Model: PMA 600 Advanced
Equipment Type: High Shear Mixer / Granulator System
Capacity: 240–450 Liter Working Capacity
Condition: Unused
Year Built: 2015
Serial Number: 14369.1310

Description

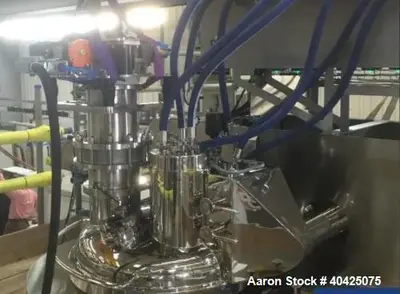

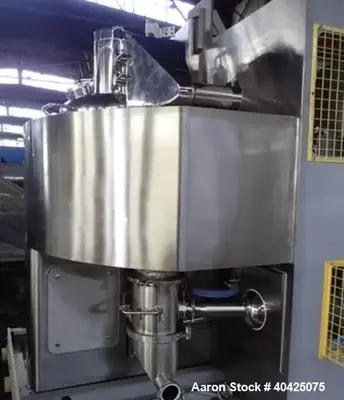

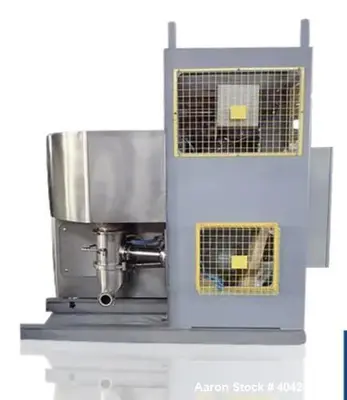

Unused GEA PMA 600 Advanced high shear mixer system engineered for pharmaceutical, nutraceutical, food, and specialty chemical granulation applications. Designed for high-performance mixing and wet granulation, this advanced processing system features 316L stainless steel product contact surfaces and a full vacuum-rated jacketed bowl for precise thermal and process control.
The mixer is equipped with a 36 kW main impeller operating from 1–170 RPM and an 11 kW chopper operating from 1000–3000 RPM, delivering intensive shear mixing and efficient particle distribution. The machine is designed to a 16 bar shock rating for demanding processing environments.
This fully integrated system includes an 8” side discharge valve, integrally mounted Quadro Comil Model U20, integrally mounted blade hoist, and associated Allen-Bradley PLC/HMI control systems designed for Class 1 Division 2 hazardous area applications.
Additional equipment includes a GEA PMS 600 temperature control unit with WIP (Wash-In-Place) capability and through-the-wall mounting design, as well as a PL600 IBC hoist with four approximately 750-liter IBCs for material handling and transfer operations.

Specifications
Mixer System

Manufacturer: GEA
Model: PMA 600 Advanced
Type: High shear mixer / granulator
Working Capacity: 240–450 liters
Product Contact Material: 316L stainless steel

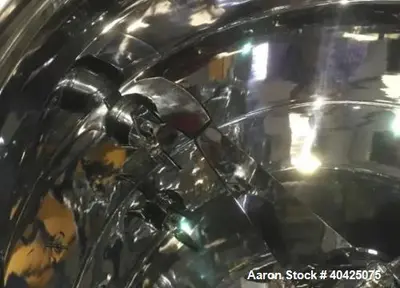

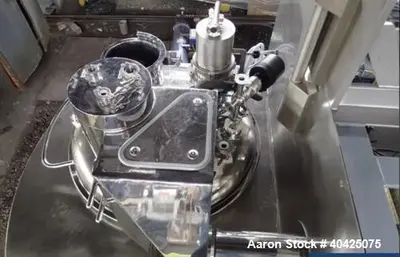

Bowl Type: Jacketed, full vacuum rated
Shock Rating: 16 bar

Main Mixing System

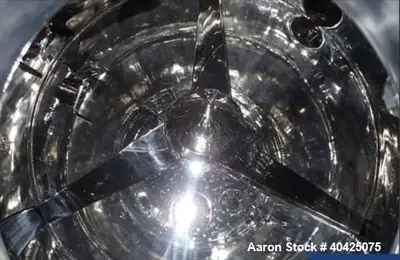

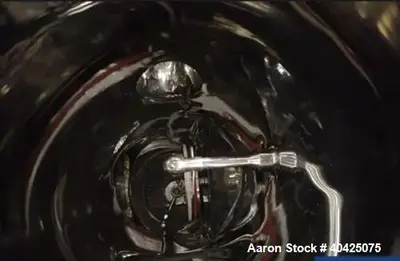

Main Impeller Power: 36 kW
Main Impeller Speed: 1–170 RPM

Chopper System

Chopper Power: 11 kW
Chopper Speed: 1000–3000 RPM

Discharge

8” side discharge valve

Integrated Equipment

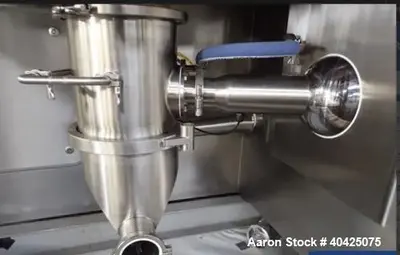

Quadro Comil Model U20
Integrally mounted blade hoist

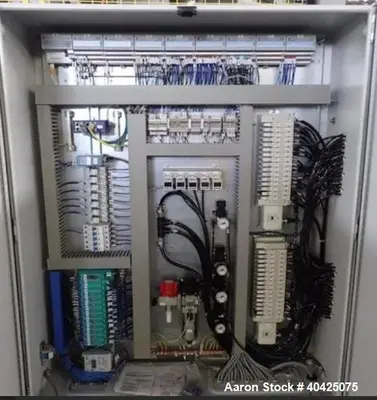

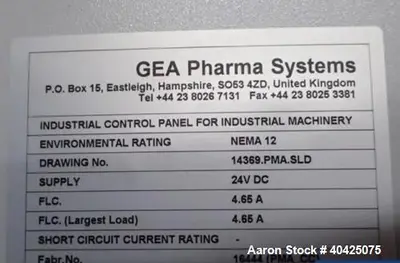

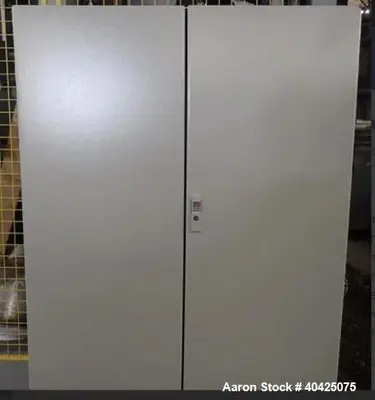

Allen-Bradley PLC controls

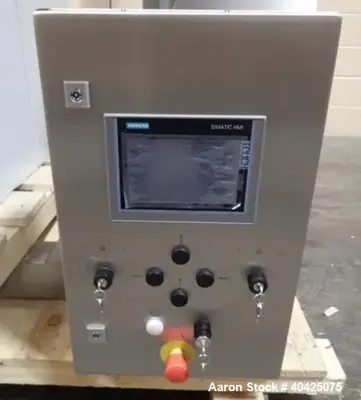

HMI operator interface
Class 1 Division 2 design
Electrical: 480 Volt

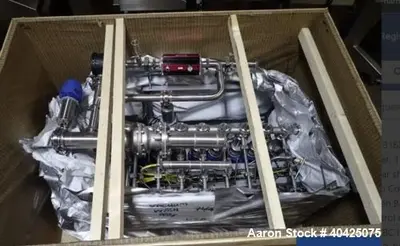

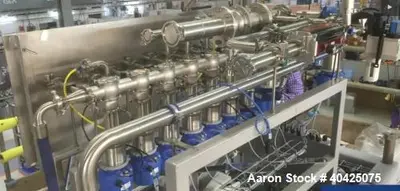

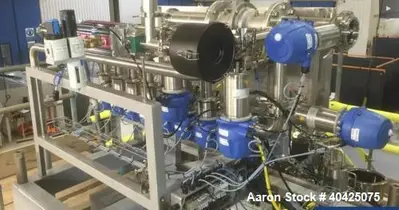

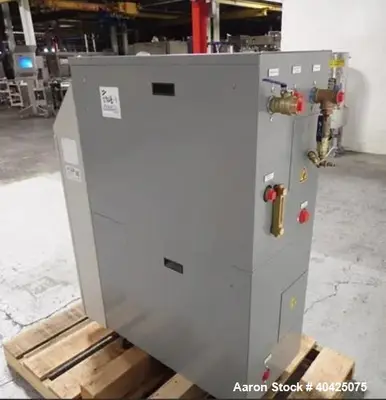

Temperature Control Unit

Manufacturer: GEA
Model: PMS 600
WIP design
Through-the-wall mounted on base

Material Handling

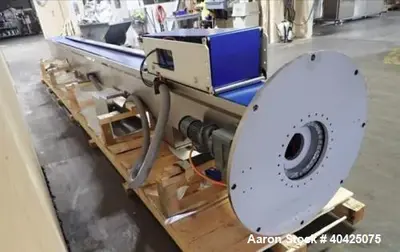

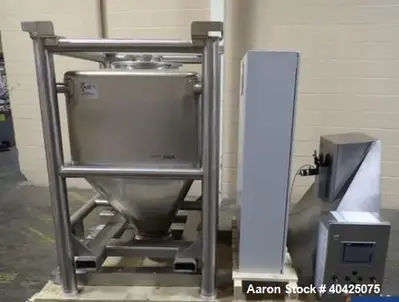

PL600 IBC hoist

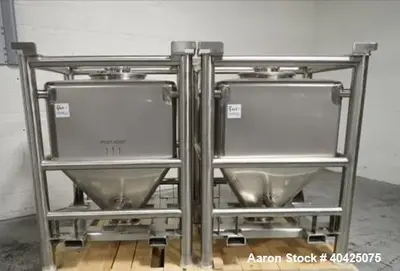

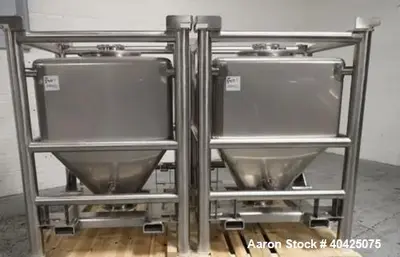

Includes (4) approximately 750 liter IBCs

Identification

Serial #: 14369.1310
Year Built: 2015

Applications
Ideal for high shear granulation, blending, powder processing, and pharmaceutical batch manufacturing.

Products This Equipment Would Be Used For

Pharmaceutical granules
Tablet formulations
Nutraceutical powders
Food ingredient blends
Cosmetic powders
Specialty chemical powders
Wet granulation products
Powder dispersions
Dry blending applications
High-value formulations
