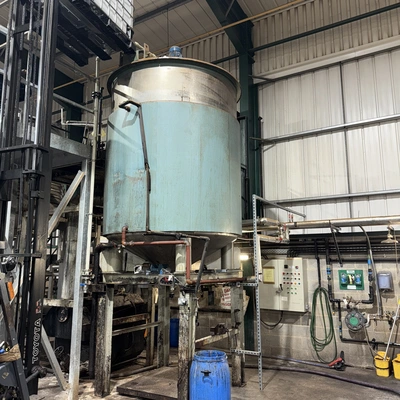

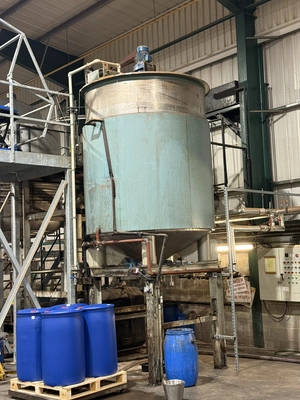

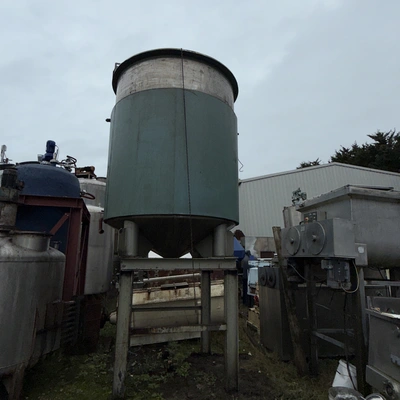

8,000L Stainless Steel Paddle Mix Tank – 7.5 kW

8,000-litre stainless steel paddle mix tank fitted with a mild steel jacket tested to 85 P.S.I., designed for efficient heating and mixing duties. The vessel measures approximately
2,000 mm diameter x 2,600 mm deep
, with 700 mm deep cone
 bottom
 with a
central 80 mm dia outlet
for complete discharge. mounted on legs to give 1,650 mm ground clearance.

Supplied with a

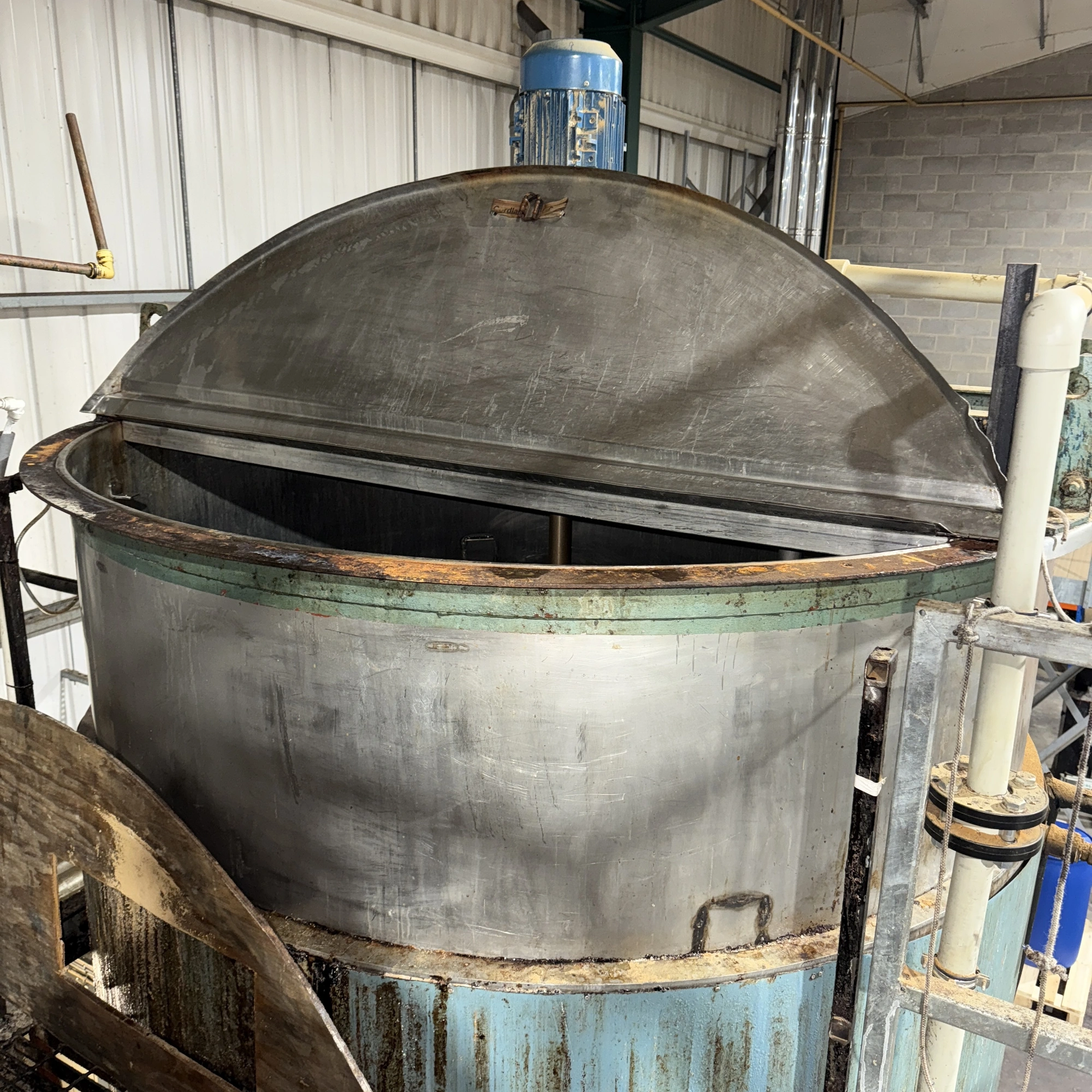

flat, bolted, removable stainless steel lid
, incorporating a
mild steel support bridge
. Mixing is achieved via a

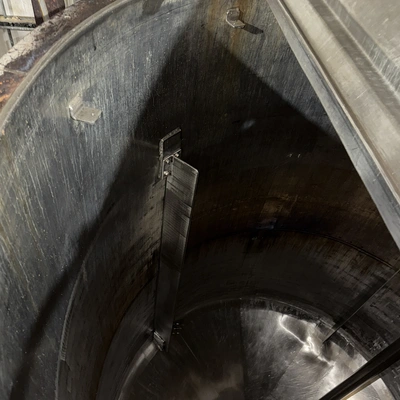

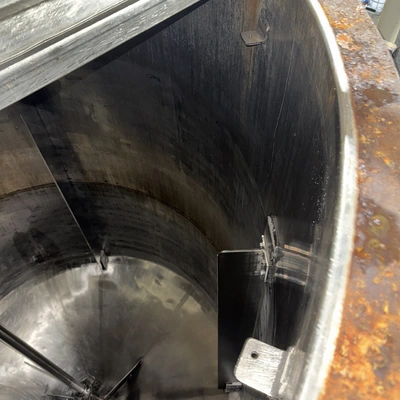

centre-mounted turbine agitator
, driven by a
7.5 kW motor
, operating at approximately
80 RPM
.
Key Features

Capacity:
8,000 litres

Construction:
Stainless steel vessel

Heating Jacket:
Mild steel, pressure tested to 85 PSI

Dimensions:
Approx. 2,000 mm diameter x 2,600 mm straight side

Cone Bottom:
700 mm deep conical base

Outlet:
80 mm diameter central discharge for complete emptying

Ground Clearance:
1,650 mm on support legs

Agitation System

Centre-mounted turbine agitator

7.5 kW drive motor

Operating speed approx. 80 RPM

Mild steel support bridge integrated into lid structure

Lid Arrangement

Flat, bolted, removable stainless steel lid

Designed for secure operation and easy maintenance access
