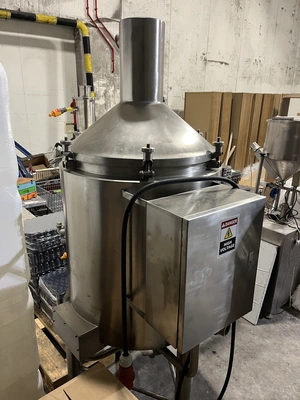

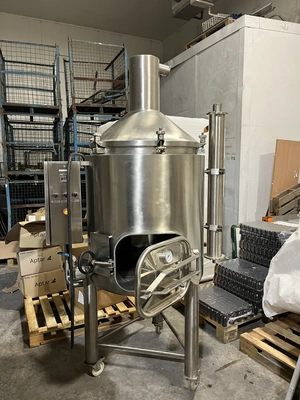

450L S/S GMM JKTD Elec Heated Still

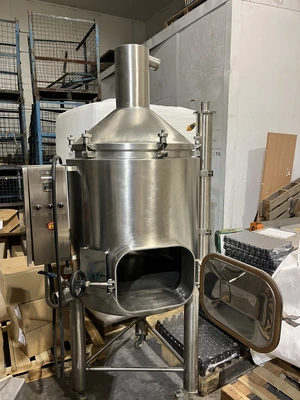

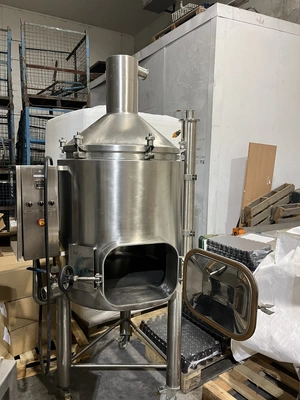

Stainless Steel jacketed still 850 mm dia x  800mm deep with flat base, to suit product basket,  with side inspection way 400 mm x 320 mm

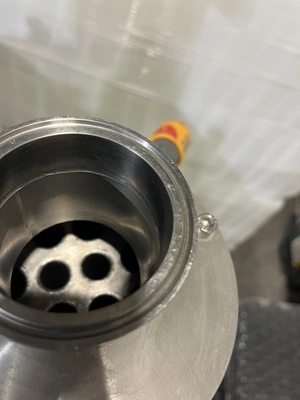

cone bolt removable lid, 200 mm dia vapour discharged, to  condenser

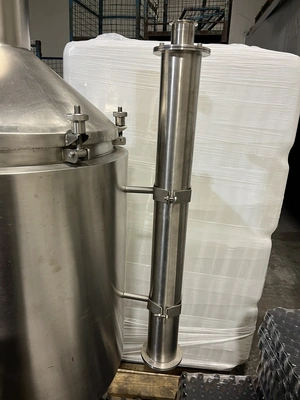

with about 14 off 20 mm od tubes 750 mm long to give 0.7 sq.m of cooling

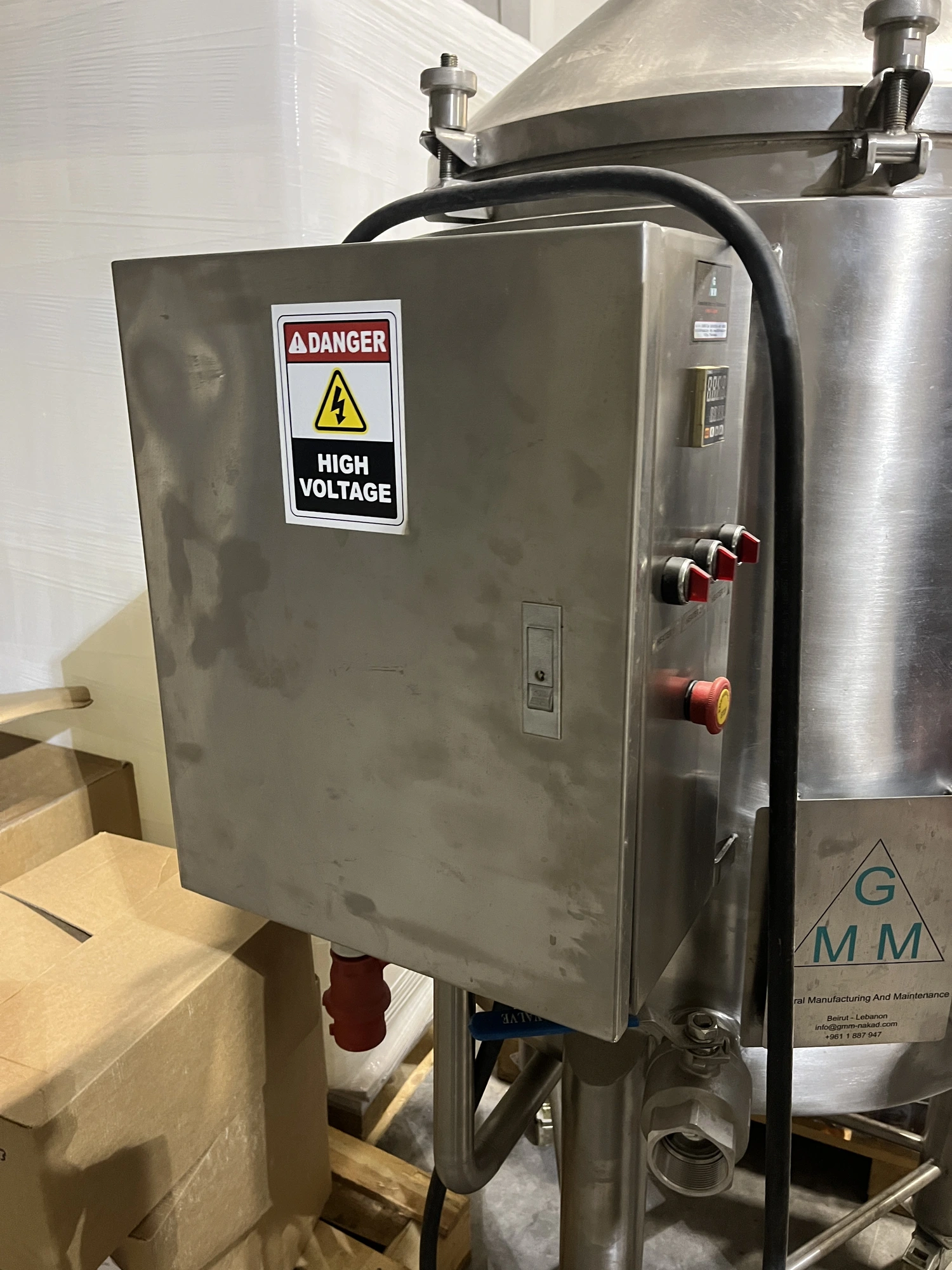

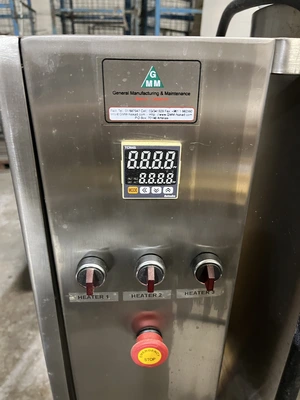

area. with electric heated Hot oil jacket heat source 3 off about 9 kw elements
