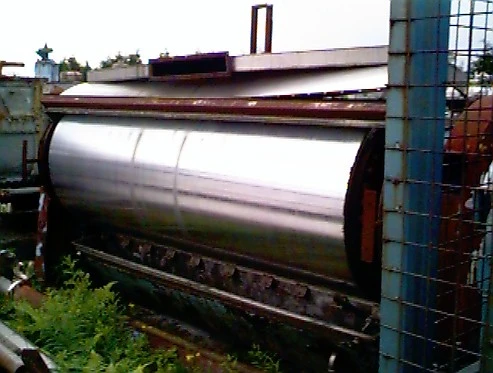

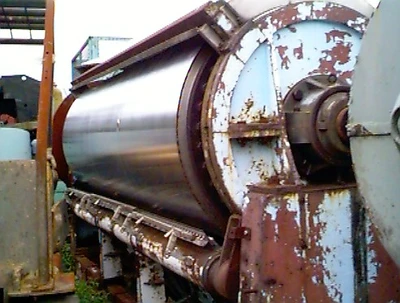

Apv Mitchell Roll Drier 1,220 Dia X 3,050mm
Overview
Description
All Stainless Steel Parts with Chrome Plated Roll Designed for Steam Heating with Variable Speed Carter Drive. One Unit with Dip Feed Trough. One with Side Feed Trough. Scraper Discharge in 3 Sections, Pneumatically Controlled with 12 Sq. M Surface Area
High-quality APV Mitchell stainless steel roll drier with chrome-plated drum, designed for efficient steam-heated drying of slurries, pastes, and food products. Supplied with two feed configurations and pneumatically controlled scraper discharge.
Technical Description
Roll Diameter: 1,220 mm
Roll Length: 3,050 mm
Construction: All stainless steel parts
Roll Finish: Chrome-plated roll
Heating Method: Steam heated
Drive: Variable-speed Carter drive system
Feed Arrangements
Unit 1: Dip feed trough
Unit 2: Side feed trough
Discharge System
Scraper discharge in three sections
Pneumatically controlled for consistent product removal
Drying Capacity
Total Surface Area: 12 m²
