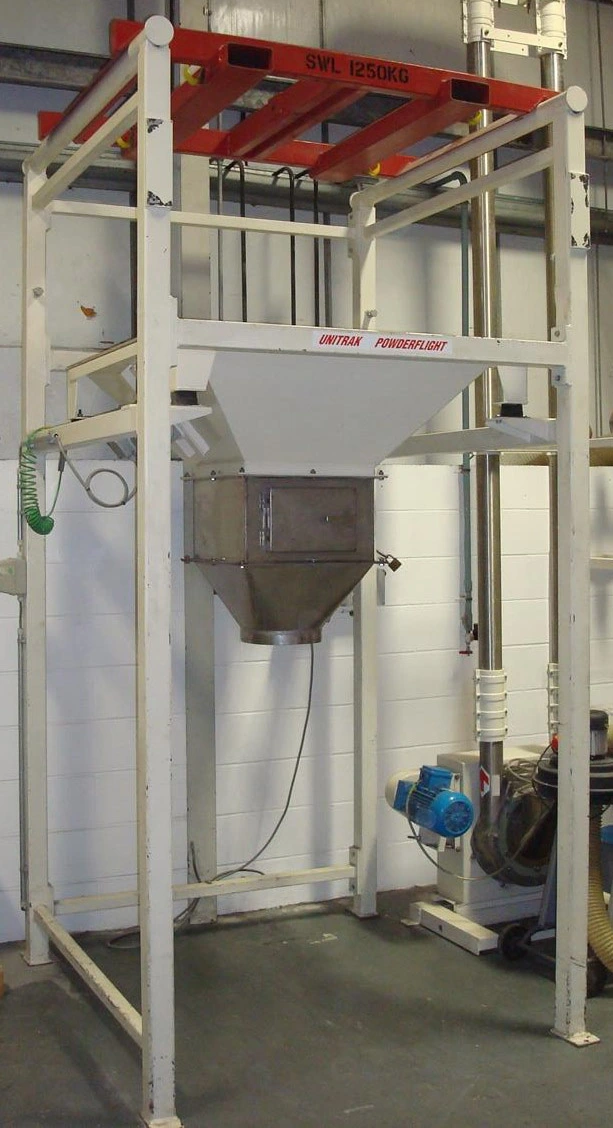

1,000L Big Bag Fork lift Truck Discharge Station

Mild
steel painted main frame 1,500 mm x 1,670mm x 3,200 mm closed height
with vertical adjustment of 1,800 mm to give maximum height 4,400 mm
supports.  Forklift  Truck mobile frame  Cruciform frame for lifting the
bag,Bag tensioning system, 304 Stainless steel contact parts locating
hopper with 300 mm dia outlet mounted  with 1340 mm ground clearence,
with Vibrator motor/s to help discharge the product, with side mounted
hatch to remove IBC plll string Cruciform
