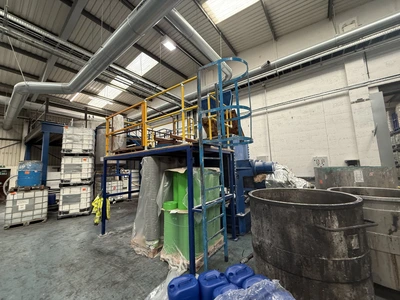

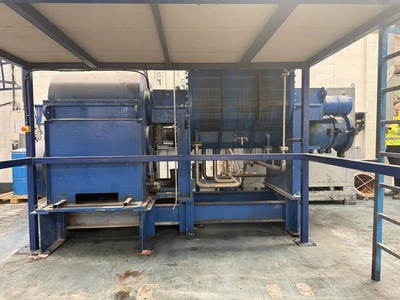

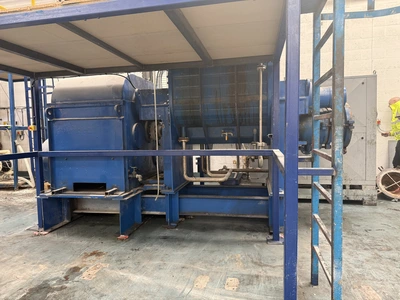

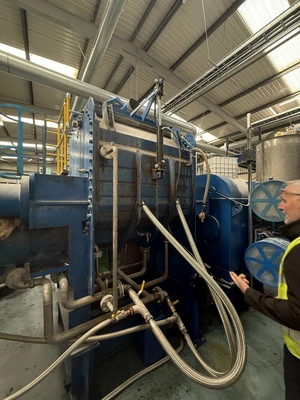

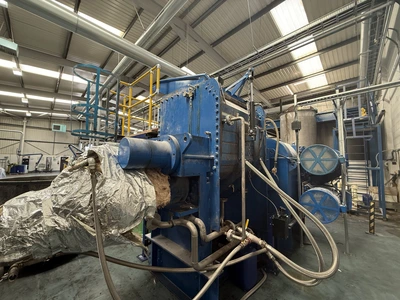

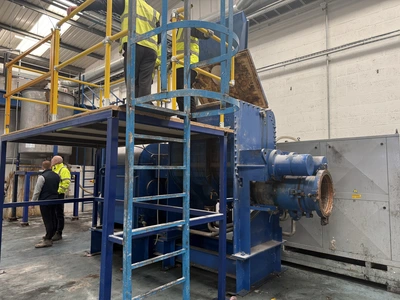

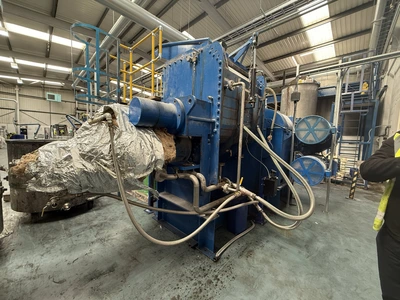

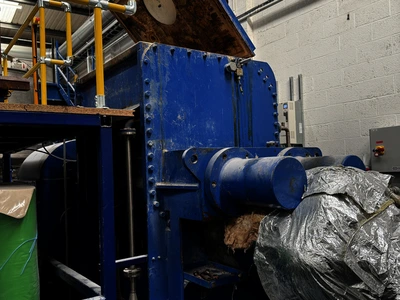

800L AMK Z Mixer/Extruder132 kw

Mild
Steel Jacketed Sigma Z blade Mixer chamber about 1,220 mm  x 1,200 mm x
1,200 mm tall deep with 270 mm dia extruder auger with hinged lid, with
132 kW belt driven Geared drive in sigma arms and 37 kW on the
Extruder. Inverter speed control.Over all size 6,000 mm x 2,900 mm x 3,500 mm tall   Weight approx 13,000 kgs.
Key Specifications
Mixing Chamber

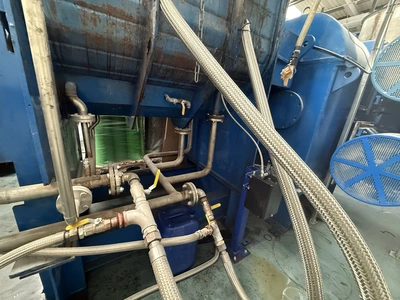

Capacity: 800 litersMaterial: Mild steel, jacketed for heating or cooling (steam, oil, or water circulation).Dimensions:
1,220 mm (Diameter)1,200 mm (Width)1,200 mm (Depth/Height)

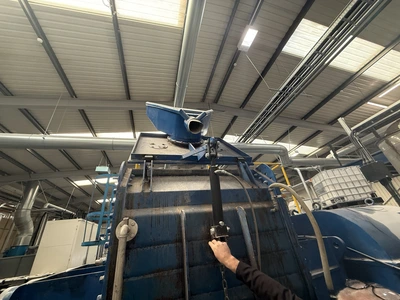

Lid: Hinged for easy loading, inspection, and cleaning.
Mixing System

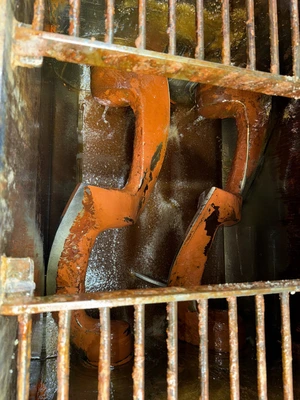

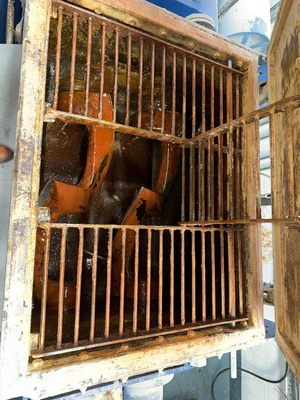

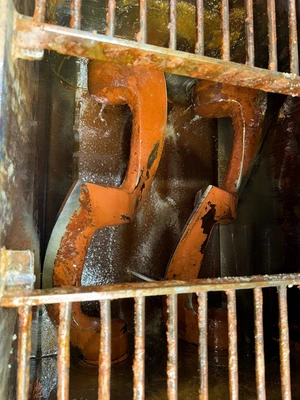

Blade Type: Sigma Z-blades (high-shear kneading action for heavy-duty mixing).Main Drive:
132 kW belt-driven geared motor powering the Sigma arms.Inverter speed control for adjustable mixing speed and energy efficiency.High torque for processing thick and highly viscous materials.

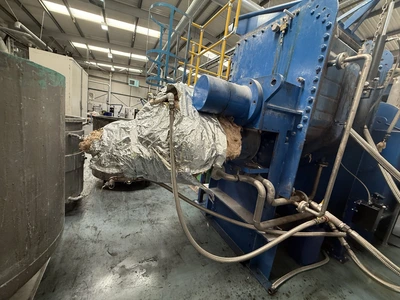

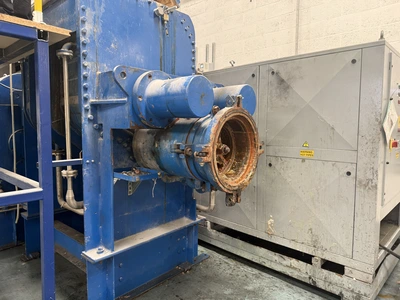

Extruder System

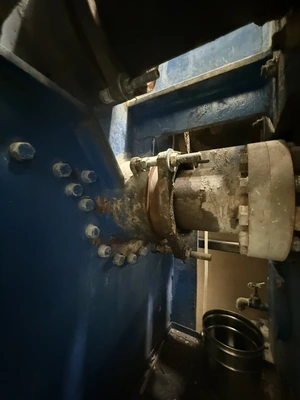

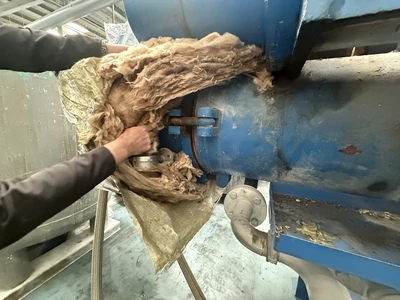

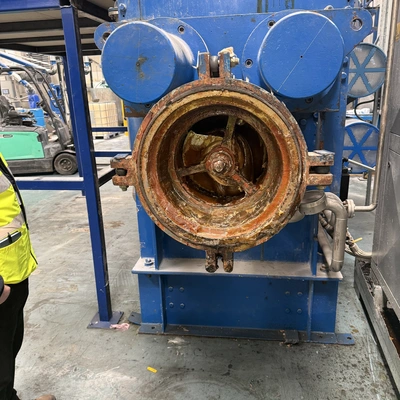

Auger Diameter: 270 mmDrive System:
37 kW motor independently driving the extruder.Inverter speed control for precise material flow.
Functionality:
Facilitates continuous discharge of mixed material.Can be used for forming, pelletizing, or direct processing into molds.

Overall Dimensions & Weight
Total Size: 6,000 mm (L) x 2,900 mm (W) x 3,500 mm (H)Weight: Approx. 13,000 kgHeavy-duty frame supports high torque and operational stress.

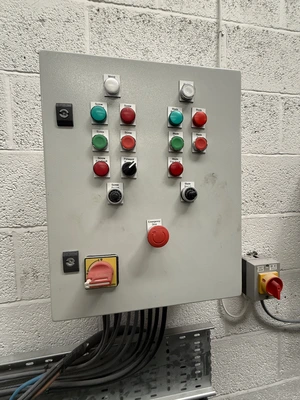

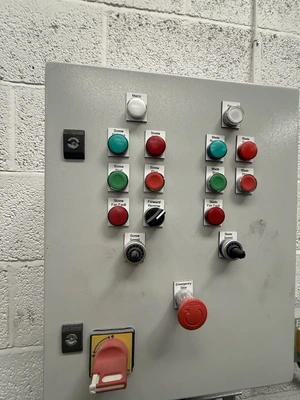

Control & Features
? Jacketed Chamber for temperature regulation.

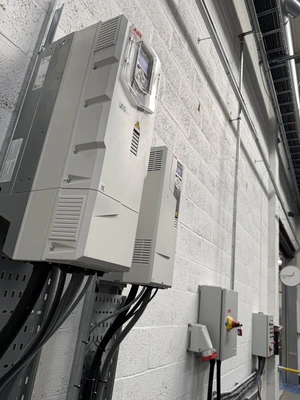

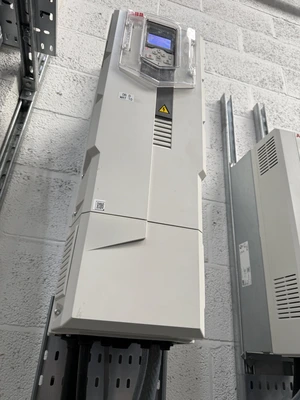

? Inverter Speed Control for both mixer and extruder for optimal performance.
? High-Torque Gear Drive for processing thick, heavy materials.
? Sigma Z-Blades for superior kneading and shear mixing.
? Hinged Lid for easy access and maintenance.
? Rugged Mild Steel Construction for durability and long service life.

Applications
This machine is ideal for industries that require high-viscosity mixing and extrusion, including:
? Rubber & Plastics – Silicone, masterbatches, elastomers.
? Adhesives & Sealants – Polyurethane, butyl, epoxy.
? Chemicals & Resins – High-viscosity pastes, putties.
? Food Processing (if food-grade material is used) – Gum base, confectionery pastes.
Mild
Steel Jacketed Sigma Z blade Mixer chamber about 1,220 mm  x 1,200 mm x
1,200 mm tall deep with 270 mm dia extruder auger with hinged lid, with
132 kW belt driven Geared drive in sigma arms and 37 kW on the
Extruder. Inverter speed control.
Over all size 6,000 mm x 2,900 mm x 3,500 mm tall   Weight approx 13,000 kgs.
