240L S/S Vertical Pressure vessels
Overview
Description

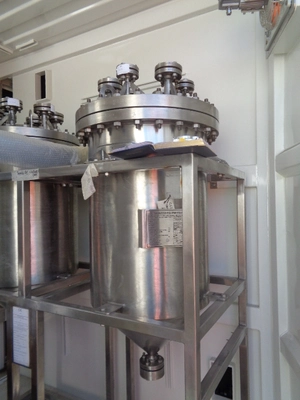

Stainless Steel chamber about 620 mm dia x 720 mm deel dish top

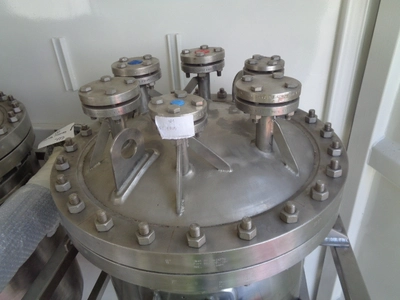

& bottom bolt on lid with 6 off 25 mm dia flanged inlets cone bottom
with 25 mm Dia flanged outlet on base plus one part way up side of the
cone chamber rated 5 bar test 7.5 bar, duty -20 /170 deg.c Built by Snowtech Equipment India

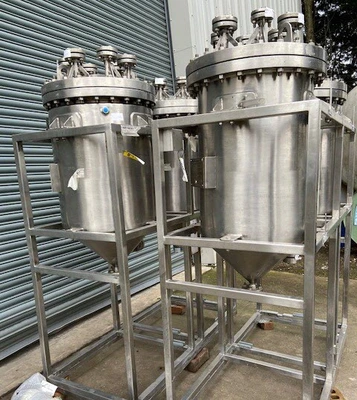

2018 new & Unusedmounted on Stainless steel frame currently in pairs 1,600 mm x 760mm x 2100 mm tall with 700 mm ground clearance from the outlet
Stainless Steel chamber about 620 mm dia x 720 mm deel dish top
& bottom bolt on lid with 6 off 25 mm dia flanged inlets cone bottom
with 25 mm Dia flanged outlet on base plus one part way up side of the
cone chamber rated 5 bar test 7.5 bar, duty -20 /170 deg.c Built by Snowtech Equipment India
2018 new & Unused
