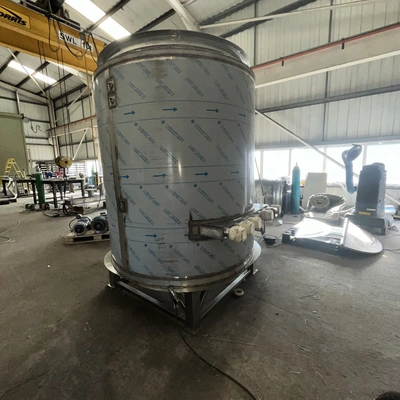

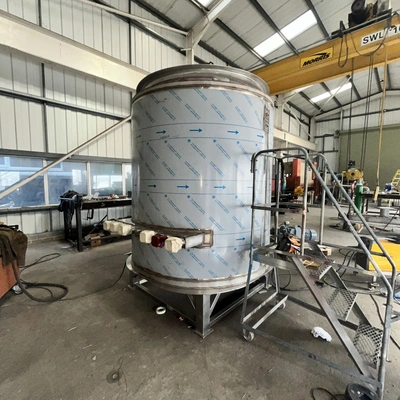

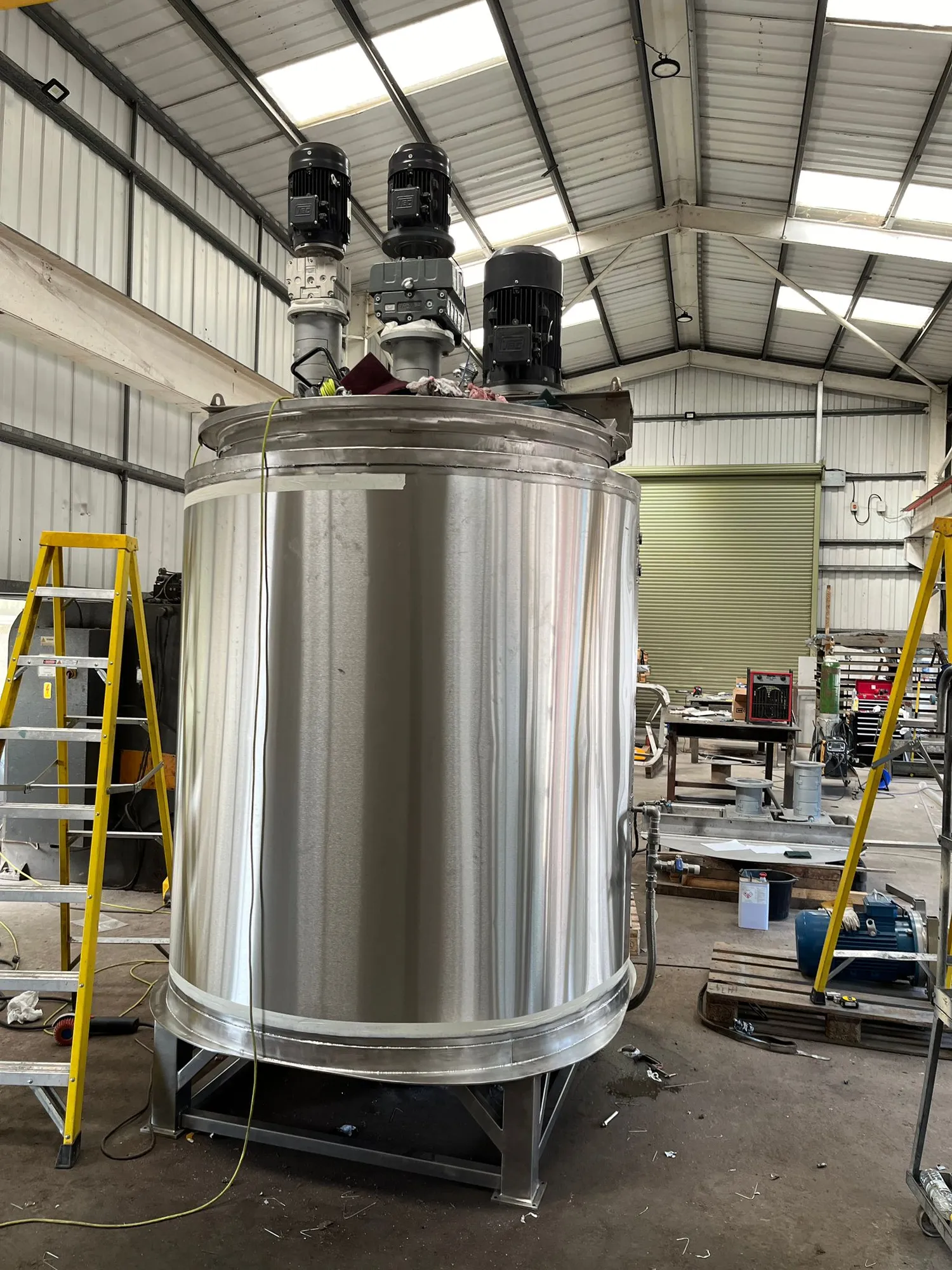

2,500 L S/S Electrically Heated Combination Mixer Jktd Tank

2,500 L S/S Electrically Heated Jktd Tank
New
and unused All Stainless Steel 316 Grade Vessel 1,450mm Dia X 1,185mm
Deep with Dish Bottom to 50 mm dia RJT Outlet Stainless Steel 304 Grade
Eco Oil Jacket. Open to Atmosphere. Fitted with Rockwool Insulation and
Stainless Steel Outer Cladding 6 X 12 kW Immersion Heaters for
120
Deg C. Higher Temp available. 50mm Outlet. With Stainless Steel Lid
& Bridge to suit Combination Mixer. Brim Height 2,470 mm Mounted on
Stainless Steel Base Frame to Give Clearance 400mm Ground from outlet. {
control Panel can be supplied At Extra Cost.}

Specifications:Vessel: New, unused, constructed from 316-grade stainless steel.Dimensions: 1,450mm diameter x 1,185mm depth with a dish bottom.Outlet: 50mm diameter RJT outlet in 304-grade stainless steel.Jacket: Eco Oil Jacket, open to atmosphere.Insulation: Rockwool insulation with stainless steel outer cladding.Heating: Six 12 kW immersion heaters, designed for up to 120°C (higher temperatures available).Design Features:Lid and Bridge: Includes stainless steel lid and bridge to accommodate a combination mixer.Brim Height: 2,470mm, mounted on a stainless steel base frame with 400mm clearance from the outlet.
