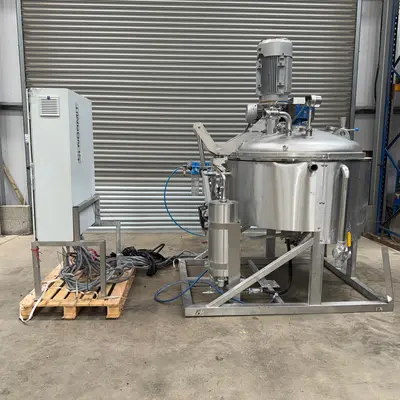

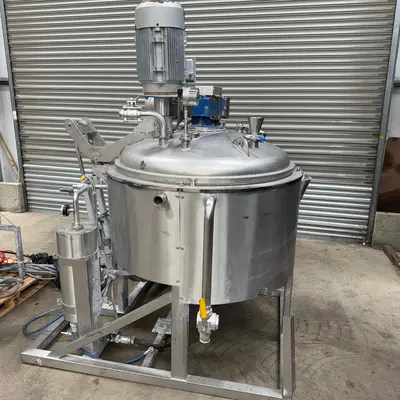

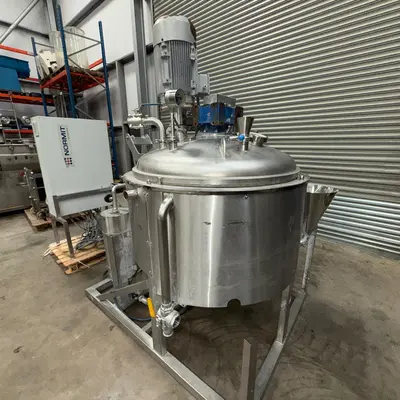

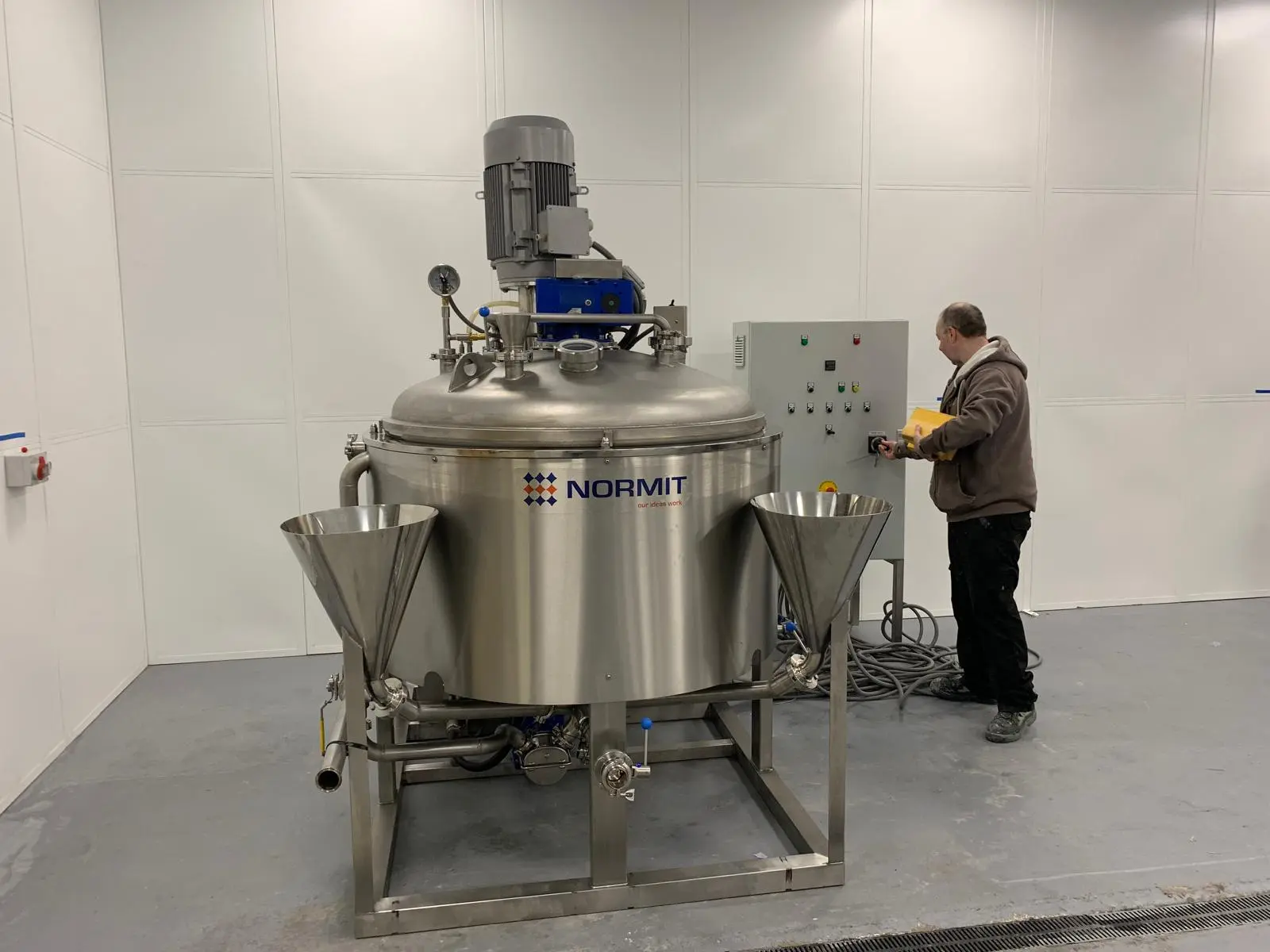

550L Normit S/S Jacketed Vacuum Homogeniser Cream & Paste Mixer VMG 650

550 L Normit Stainless Steel Jacketed Vacuum Homogeniser – Model VMG 650

Working Volume:
550 litres

Vessel:
Stainless steel jacketed mixing chamber approx. 1200 mm Ø × 650 mm deep

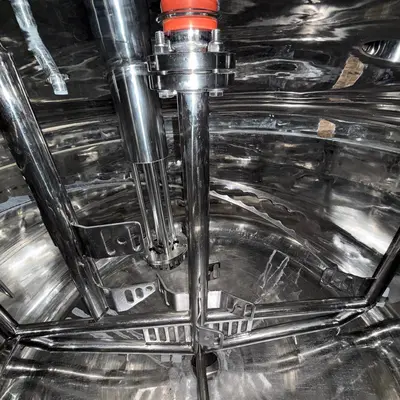

Primary Agitator:
2.2 kW, 36 rpm anchor-type mixer profiled to vessel, with PTFE hinged sidewall scrapers

High Shear Mixer:
18.5 kW top-entry high-speed shearhead unit

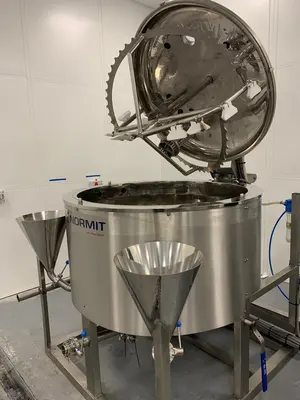

Lid:
Stainless steel dished hinged lid with
hydraulic lift
for internal access and cleaning

Heating:
3 × 9.5 kW electric elements, capable of heating product to approx. 80 °C

Infeed:
2 × product fill hoppers

Auxiliary Equipment:
Integrated product recirculation pump and vacuum pump set

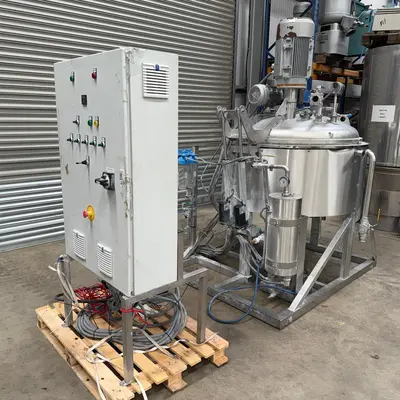

Controls:
Self-contained electrical control panel for all operating functions

Approx. Overall Dimensions:
2000 mm × 1665 mm × 2320 mm high
