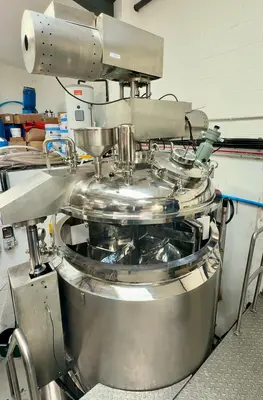

1,000L S.K. Pharma Contra-Rotational JKTD Reactor – S/S

1,000L S.K. Pharma Contra Rotational JKTD Reactor

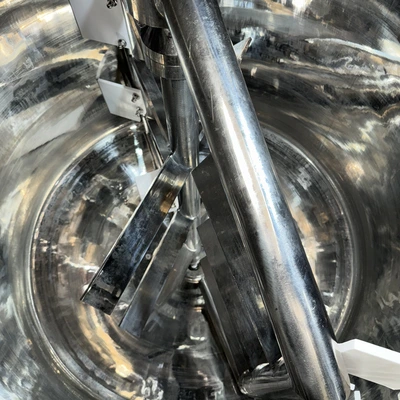

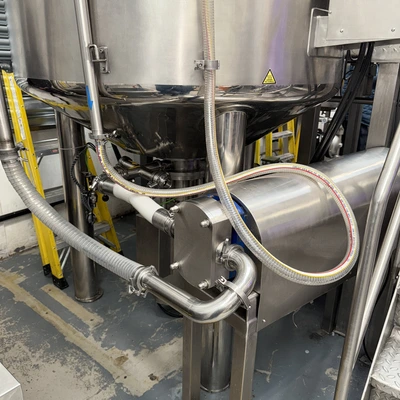

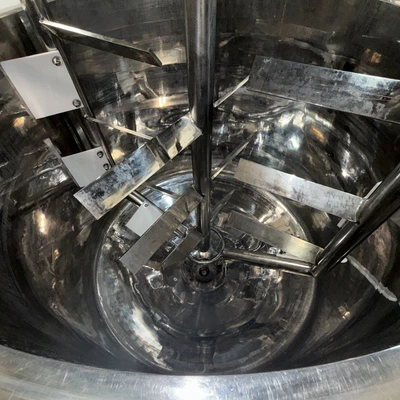

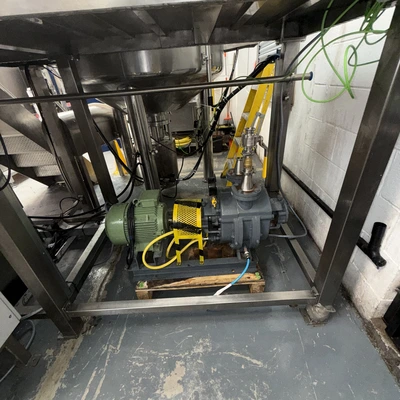

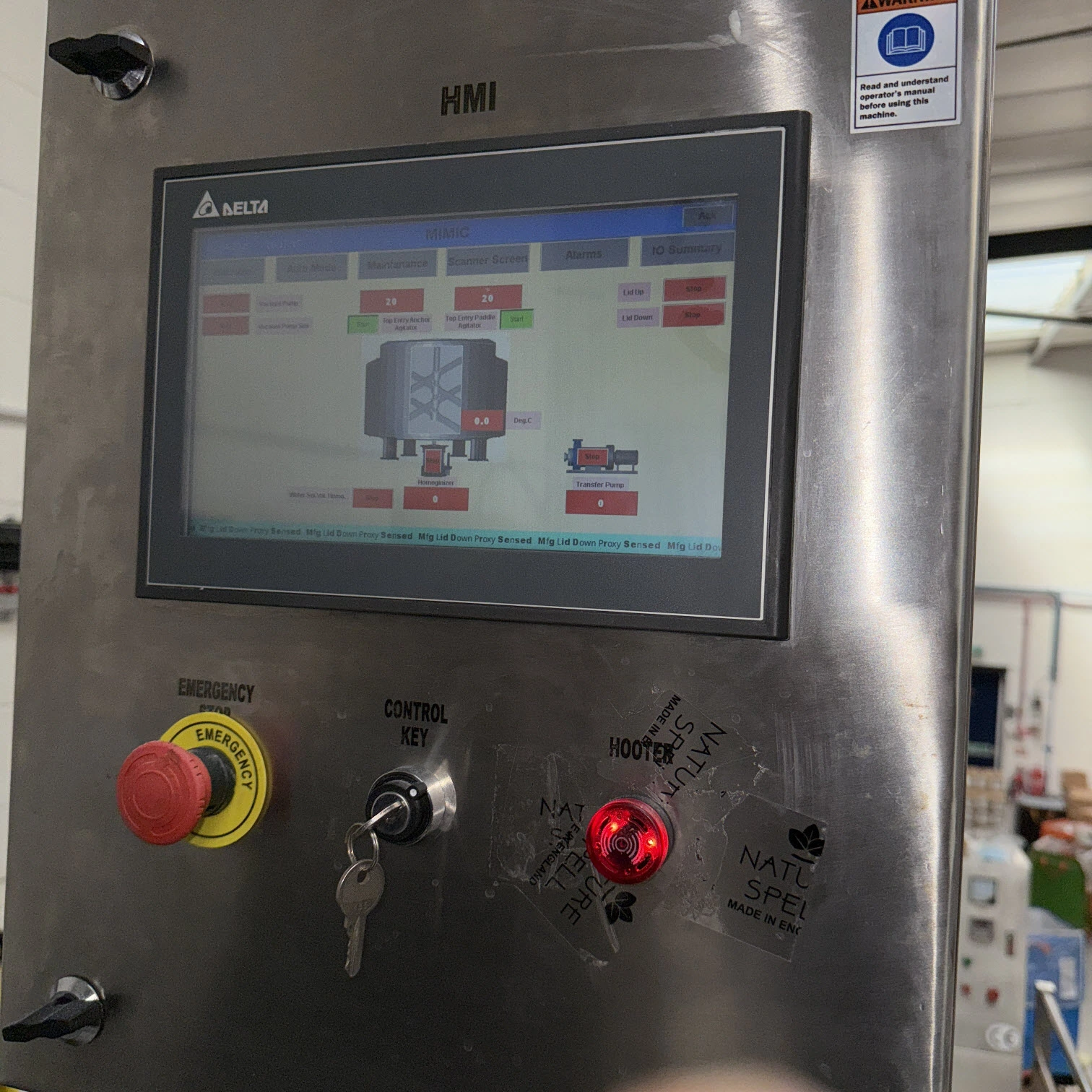

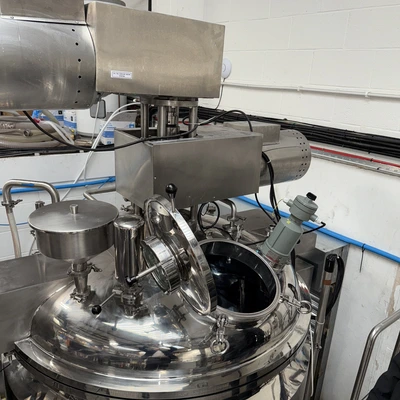

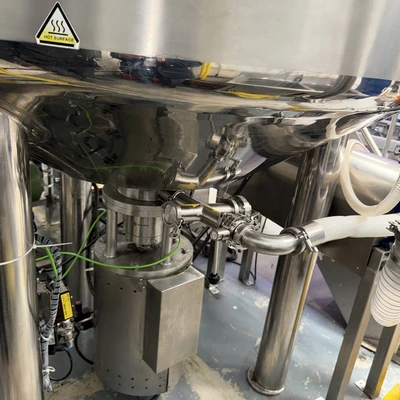

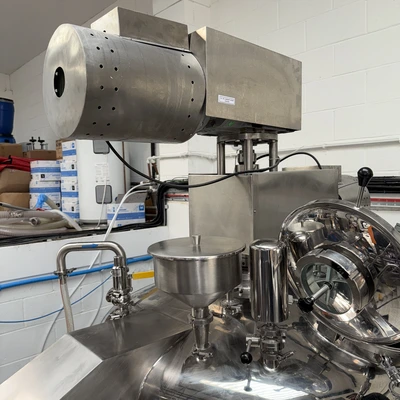

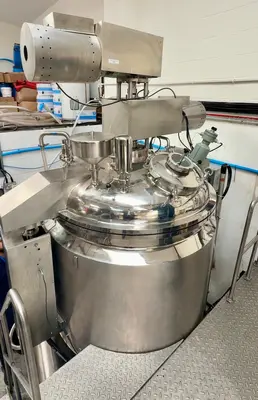

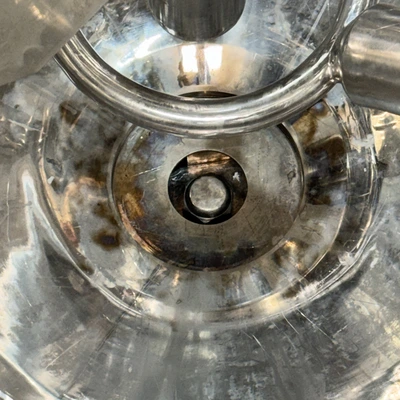

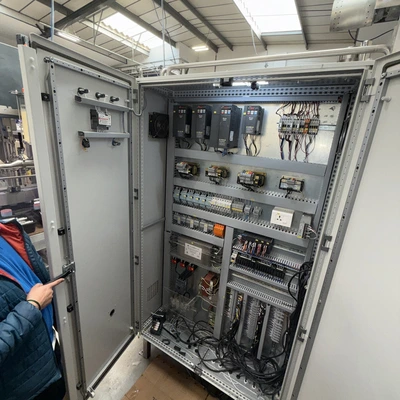

Stainless Steel Jacketed Reactor chamber 1,300 mm dia x 1,100 mm Deep with Hemispherical base Chamber with Top Entry contra rotational mixer and Bottom entry high shear mixer with 38 mm dia Tri Clover outlet mounted on legs to give 910 mm clearence. with hydraulic raise lower lid for easy cleaning.  Chamber rated Full vacuum 2 bar design temp 0 to 150 deg.c Test pressure 6 bar. with PLC touch screen controls. with electrically heated  hot water  heater, vacuum pump. access platform is 3,000mm x 1,000mm x 1,500 mm tall. Overall size 2,200 mm x 2,900mm x 3,700 mm tall closed open height 4,900mm used on cosmetic product.

1,000L S.K. Pharma Contra-Rotational JKTD Reactor – Stainless Steel, JacketedSpecifications:Chamber Capacity: 1,000 LitresMaterial: Stainless Steel (SS)Reactor Design: Jacketed Chamber with Hemispherical BaseChamber Dimensions: Ø1300 mm x 1100 mm DeepMixing System:Top Entry Contra-Rotational MixerBottom Entry High Shear MixerLid: Hydraulic Raise/Lower Mechanism for Easy CleaningMounting: Reactor Mounted on LegsOperating Parameters:Design Pressure: Full Vacuum to 2 BarDesign Temperature: 0°C to 150°CTest Pressure: 6 BarControl System:Automation: PLC Touch Screen ControlsHeating System:Type: Electrically Heated Hot Water SystemVacuum pumpDimensions:Overall (Closed): 2,200 mm (W) x 2,900 mm (D) x 3,700 mm (H)Overall (Open): Height up to 4,900 mmApplication:Previously Used For: Cosmetic Product Manufacturing
