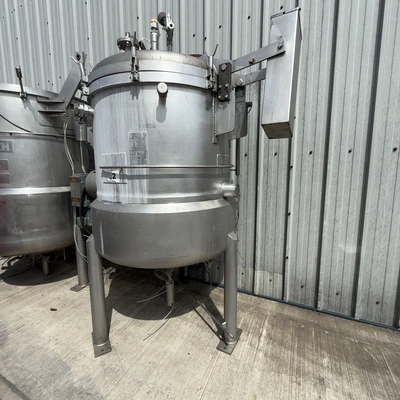

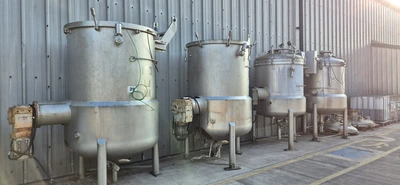

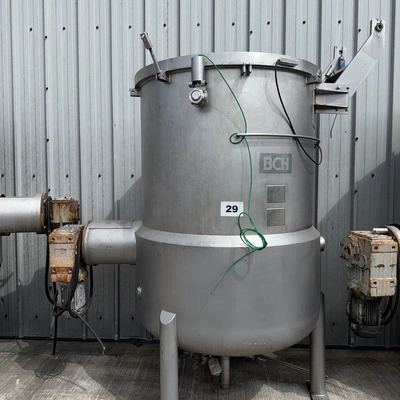

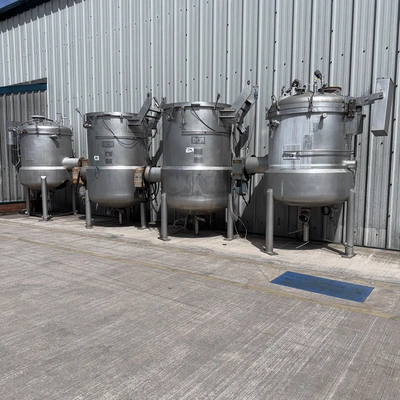

1,450L S/S BCH JKTD Reactor / Cooker 2.2 kw

1,450L S/S BCH JKTD  Reactor / Cooker
Stainless Steel
jacketed Reactor / Cooker 1,220 mm dia x 1,800 mm deep dished bottom
with 100 mm dia bottom outlet with plug valve to suit. Swing bolt hinged
lid with counter weight to open lid. with 2.2 kw 21 Rpm side mounted
s/s full circular round blade paddle with PTFE hinged scrapers. vessel

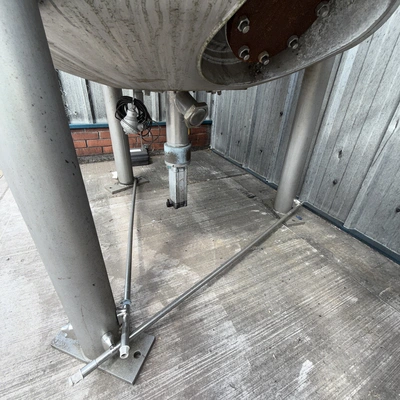

mounted on three legs to give a brim height of about 2,200 mm overall  size 1,500 mm x 2,100mm x  2,800 mm tall Chamber tested 1 bar. Jacket tested 9.75 Bar design
pressure 5.5 bar at 162 deg.c

Capacity:

Total volume: 1,450 Litres

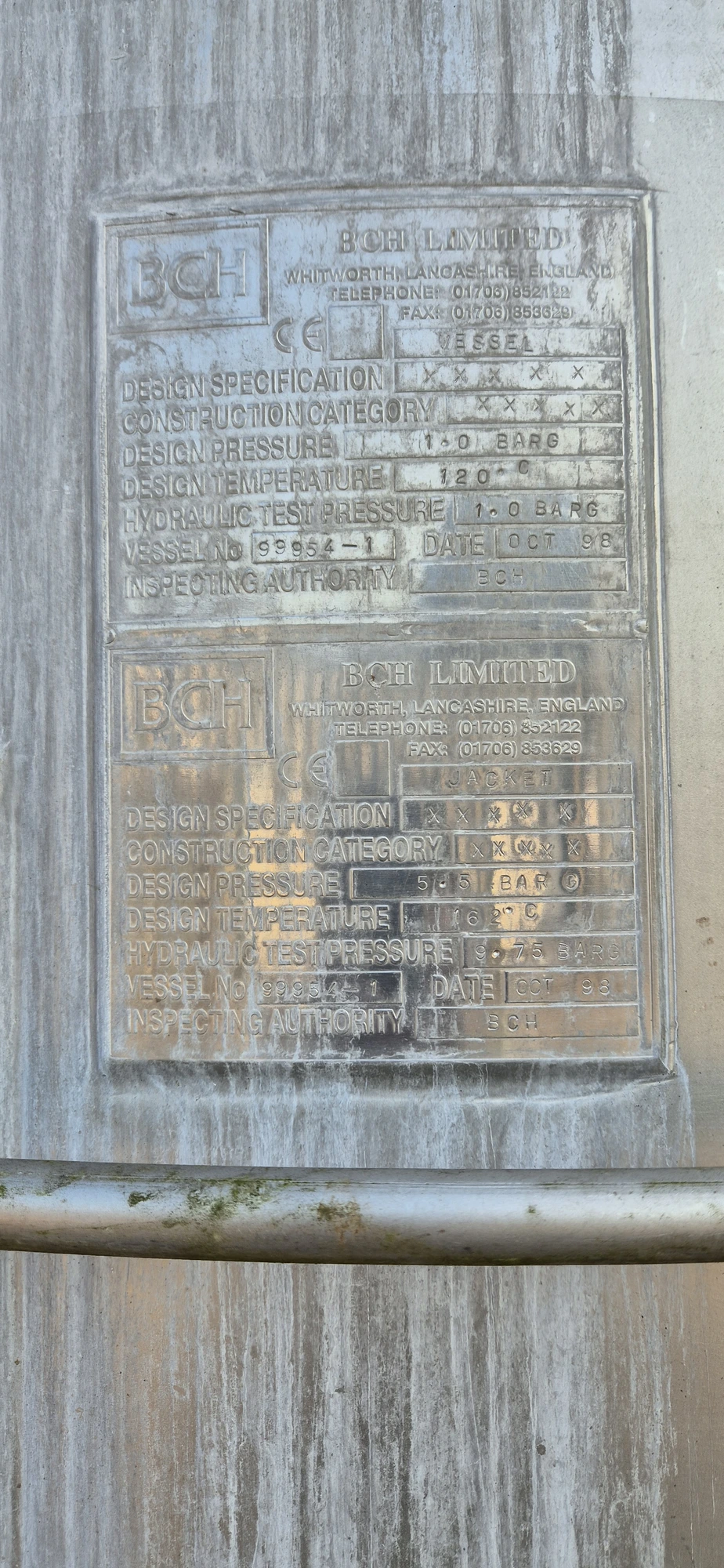

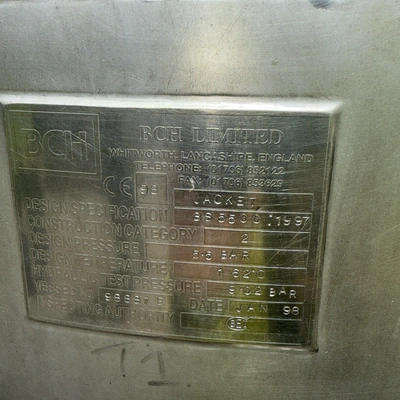

Chamber tested: 1 bar

Jacket tested: 9.75 bar

Design pressure (jacket): 5.5 bar at 162°C

Construction:

Material: Stainless Steel (S/S)

Vessel type: Jacketed, dished bottom

Internal diameter: 1,220 mm

Internal depth: 1,800 mm

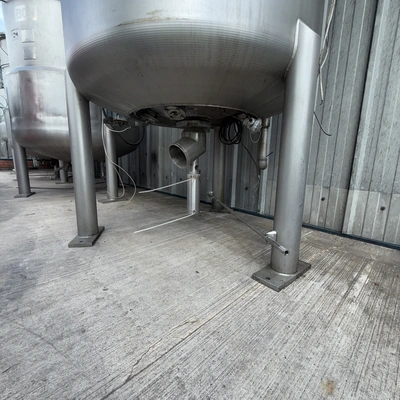

Bottom outlet: 100 mm dia. with plug valve

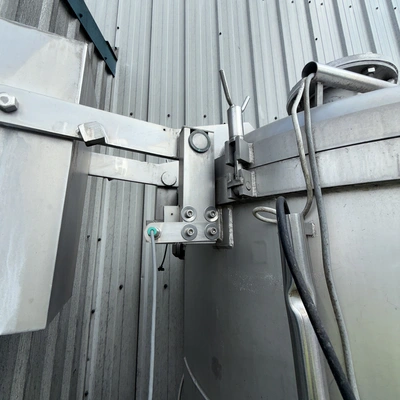

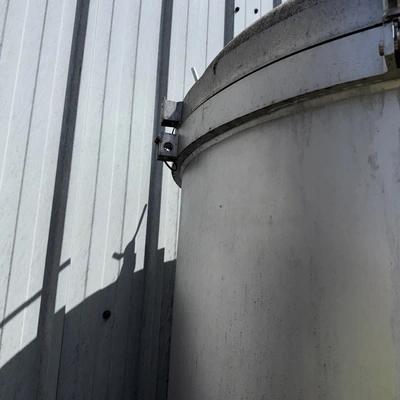

Lid: Swing bolt hinged with counterweight for assisted opening

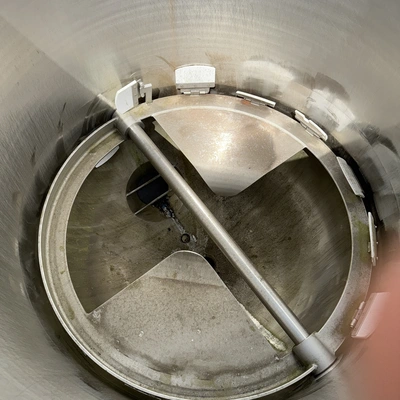

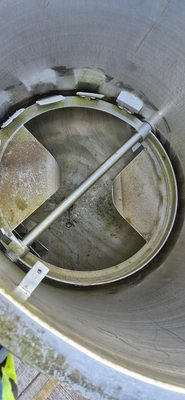

Agitator / Mixing System:

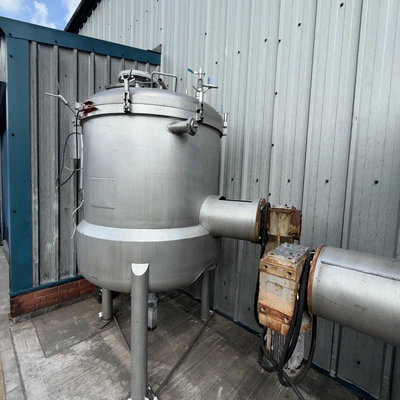

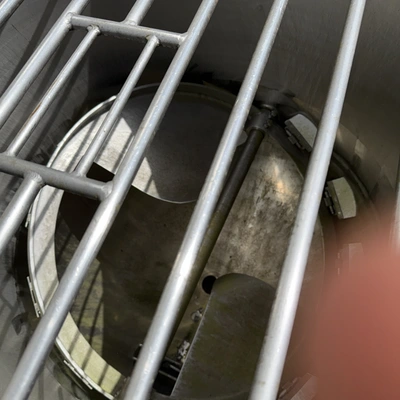

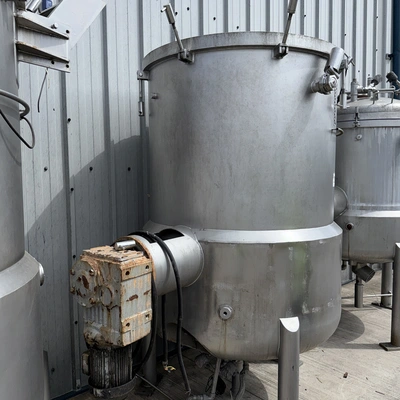

Type: Side-mounted full circular round blade paddle

Material: Stainless Steel with PTFE (Teflon) hinged scrapers

Drive: 2.2 kW motor

Speed: 21 RPM

Mounting / Support:

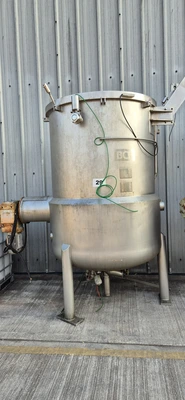

Mounted on three legs

Brim height: ~2,200 mm

Overall Dimensions (L x W x H):

1,500 mm x 2,100 mm x 2,800 mm
