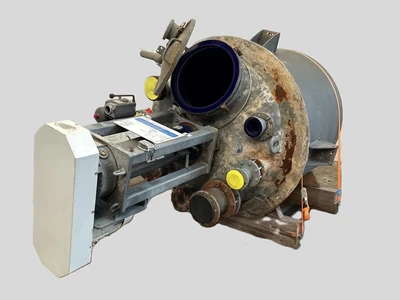

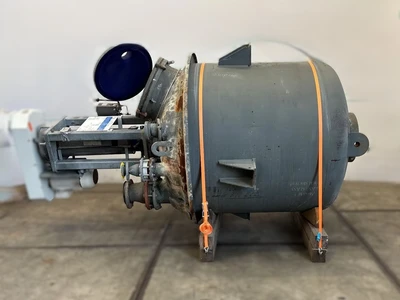

1,600L Pfauldler M/S Glass Lined Reactor

Mild Steel

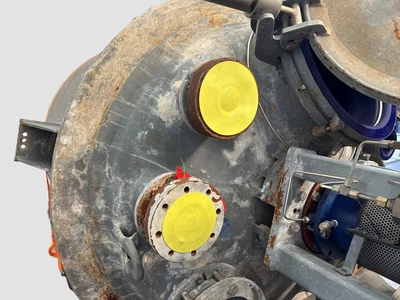

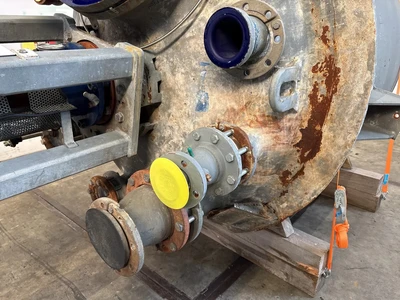

Jacketed Glass lined wwg-9115 1,500 mm dia x 1,400 mm deep dist top and
bottom to 100 mm, top with 500 mm dia manway, 200 mm dia , 150 mm dia,
2 off 100mm dia , 80 mm dia , 50 mm dia and 40 mm dia inlets. with 5.5

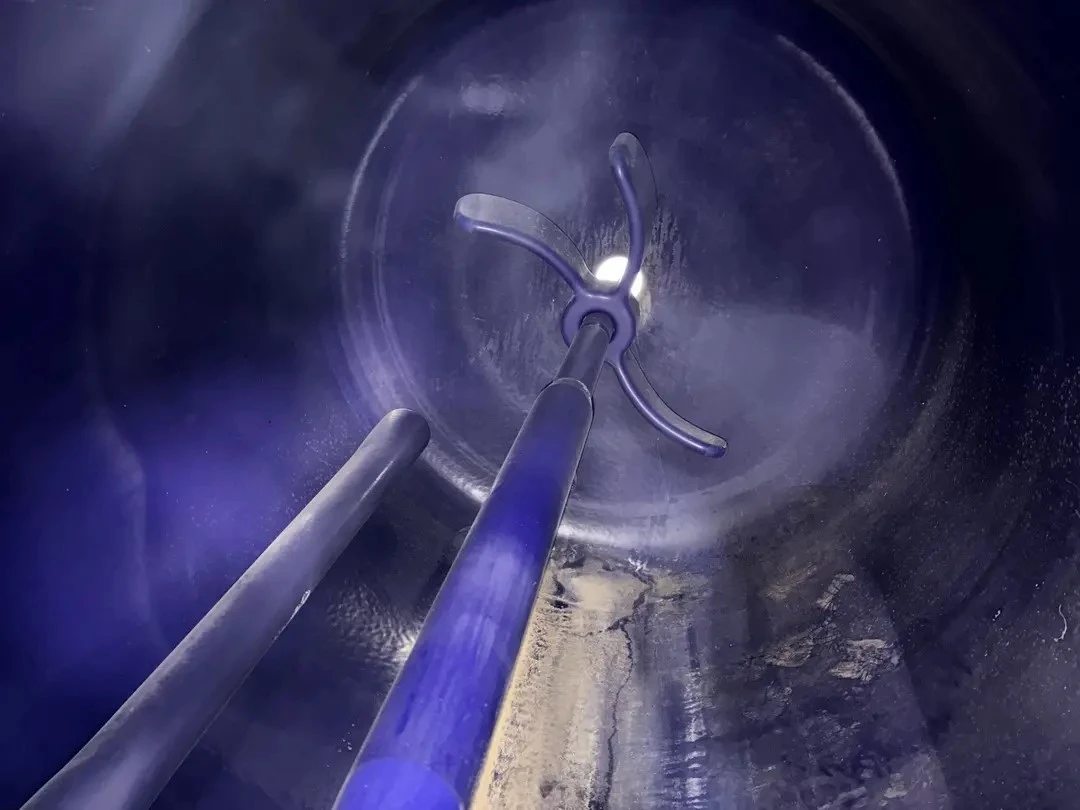

kw impeller stirrer
Chmaver ratted full vacuum/6Bar, test
pressure 6.6 Bar, Jacket rated -1/6 Bar tested 8.8 Bar, Working
Temperature 110 / +200 Deg.C. foot print 1,800mm x 1,800mmx 4,000mm
tall. year 2001 weight about 3,000 kg
