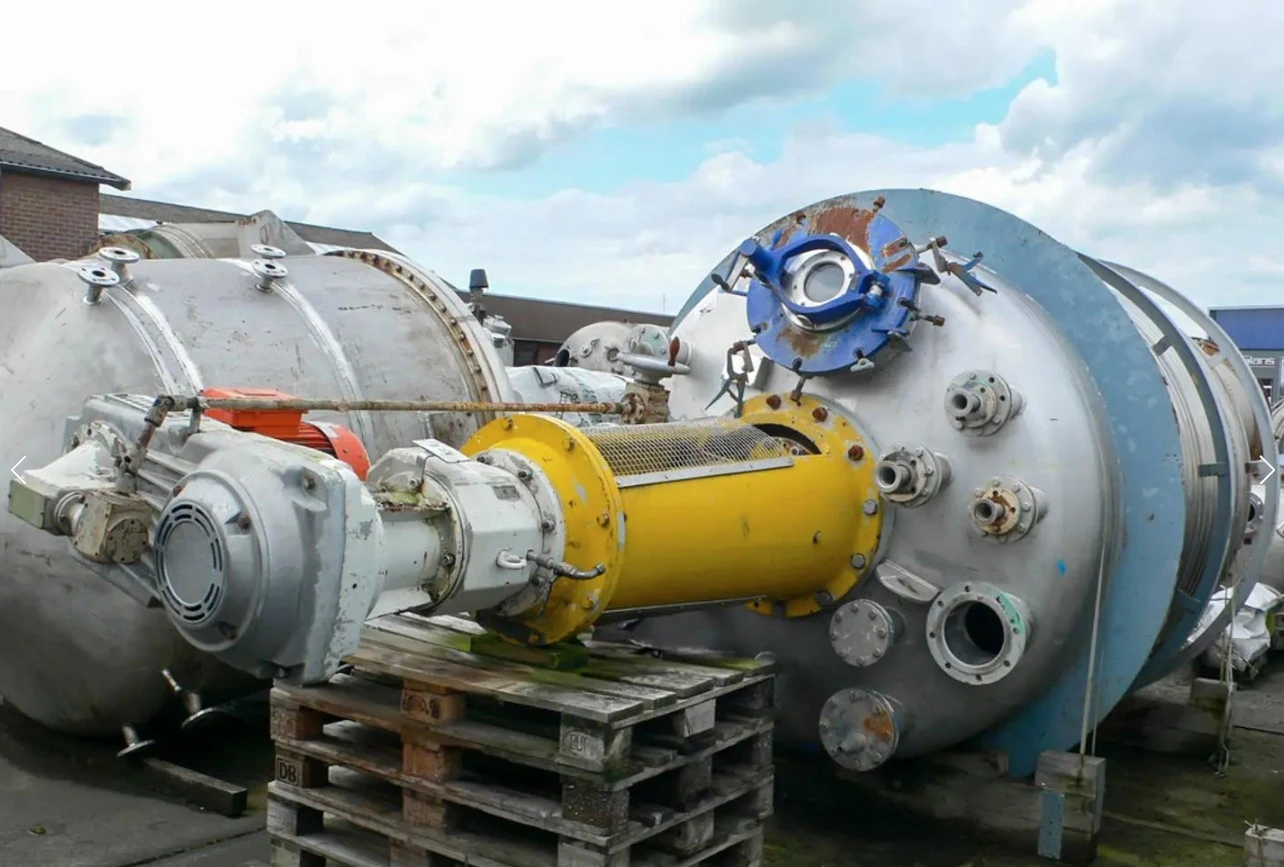

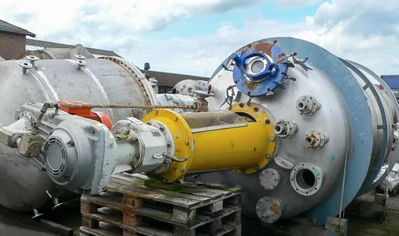

6,300L S/S JKTD Reactor 17.5 kW

Stainless

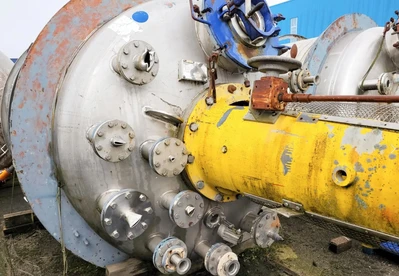

Steel [1.4435] Reactor Chamber  2,000mm x 1,800mm deep Dish Top &

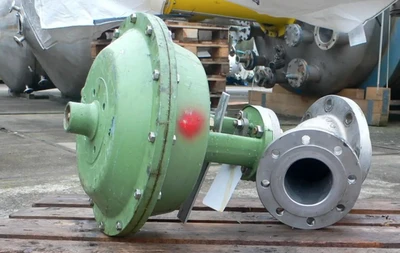

Bottom. Dished top with 500mm dia + 9 connections  170mm dia bottom
outlet.  Working pressure vac/3.2bar, Test pressure 4.8 bar max. temp

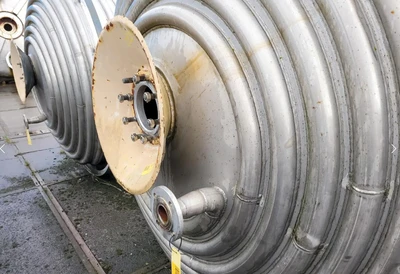

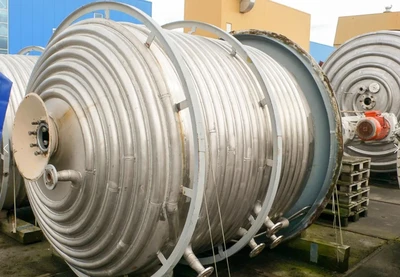

+200 deg. C with half coil jacket.  Working Pressure 16 bar, Test

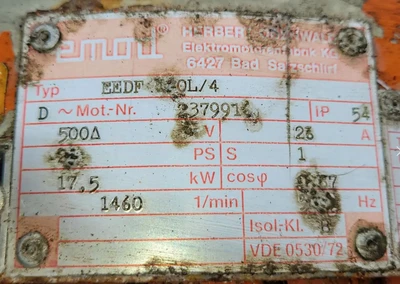

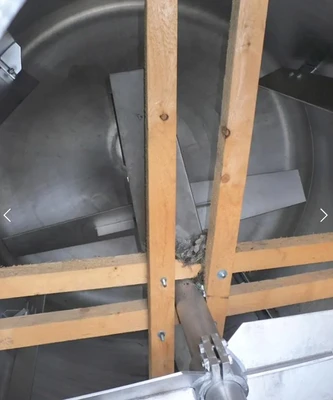

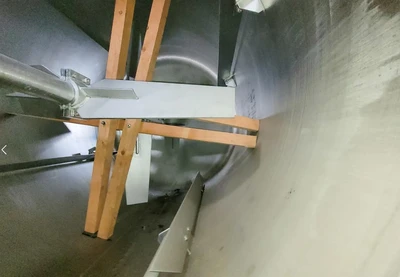

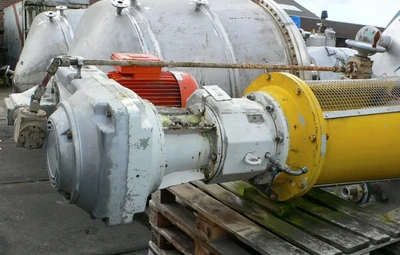

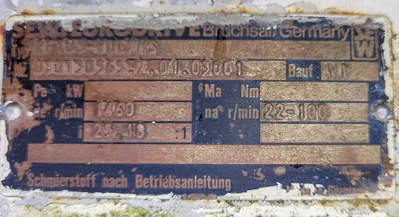

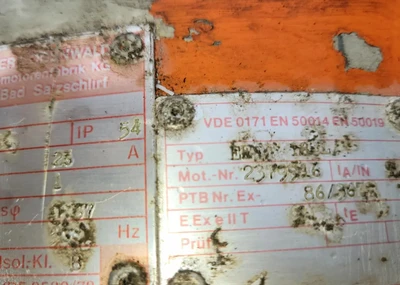

pressure 25 bar 17.5 kW 22 - 100 Rpm Angle Paddle Stirrer EX v speed
stirrer made by Spiess.  Overall size

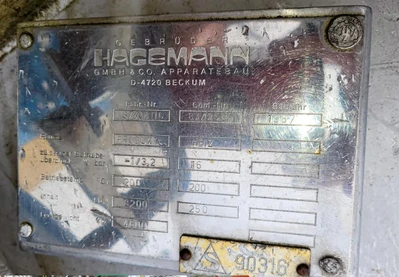

2,500mm x 2,500mm x 5,700mm tall made by Hagemann GmbH.
