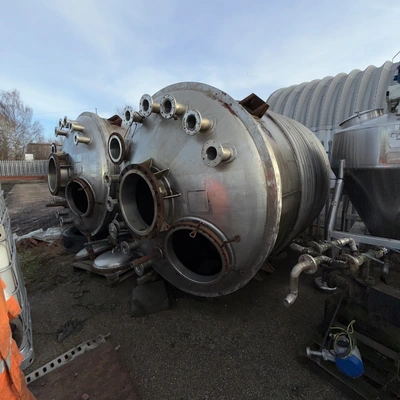

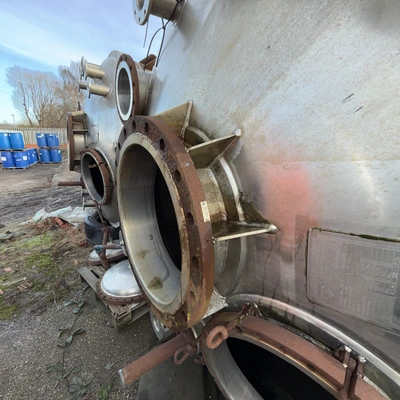

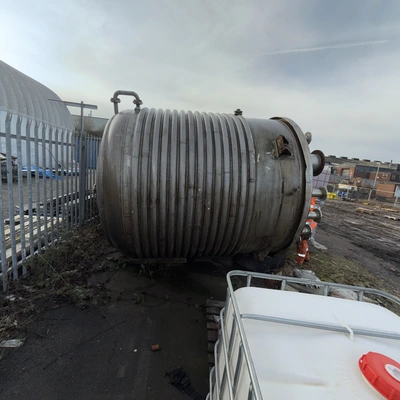

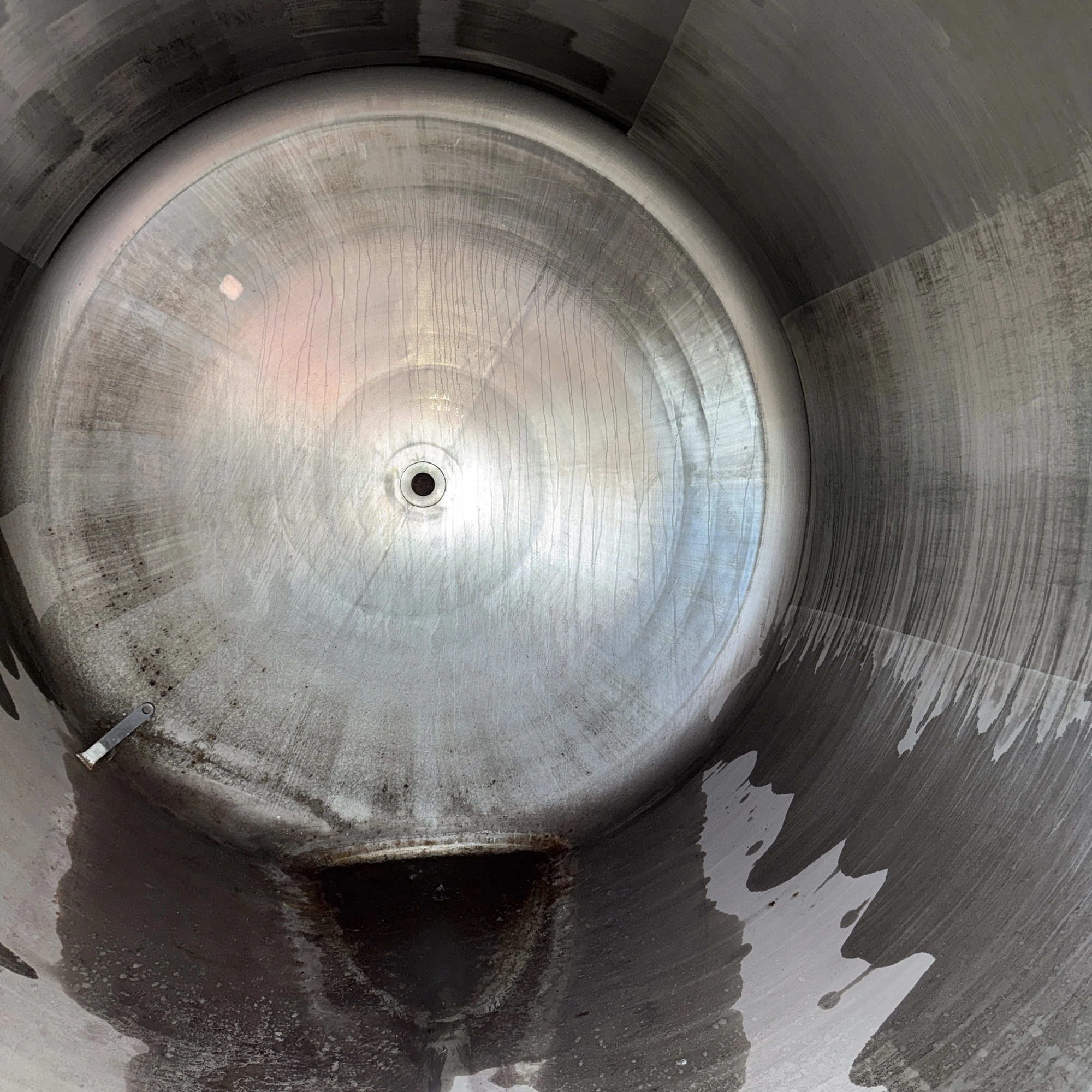

11,500L Stainless Steel JKTD 1/2 Coil / Limpet Coiled Reactor Body

Stainless
Steel 2540 mm Dia x 2,240 mm Dish Top & Bottom with central 610 mm
dia connection to suit Agitator , 610 mm dia Manway Connection. 250 mm
dia vent connection 10 off 100 mm dia inlet connection with 150 mm dia
bottom outlet. Stainless steel 1/2 coil or limpet with 60 mm dia
in/outlets on straight side and bottom 1/2 coil or Limpet Jacket section

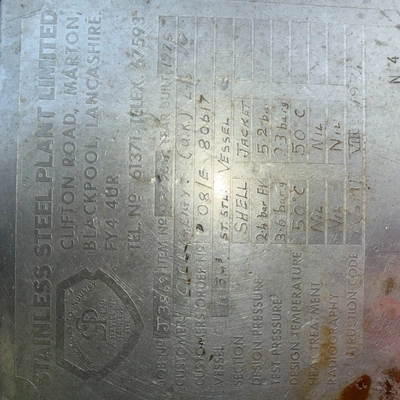

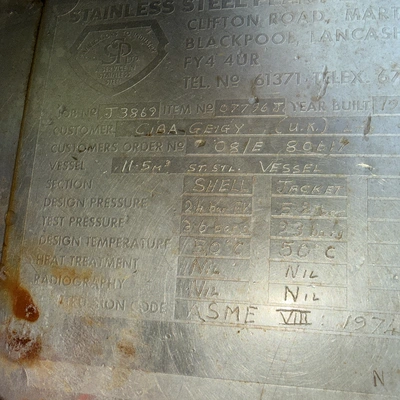

Built to ASME 1974 Version VIII Coil Design Pressure 2.4 Bar/Full
Vacuum Coil 5.2 Bar Chamber Test pressure 3.6 Bar Jacket Test pressure
9.3 Bar
Temperature Design pressure 50 deg.c both sides  empty weight 3,650 kg. [ Please note we can offer to supply with stirrer system to suit client]

Key Features

Capacity: 11,500 litres

Construction: Stainless steel

Dimensions: 2,540 mm diameter x 2,240 mm dish top & bottom

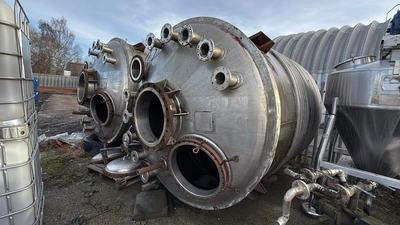

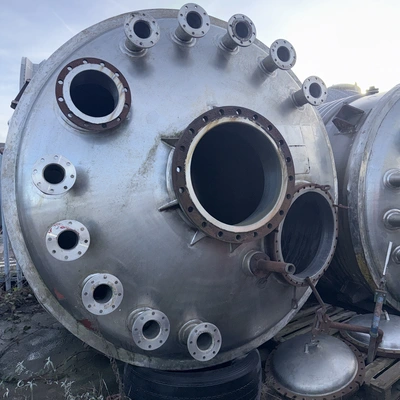

Central Connections:

610 mm diameter for agitator mounting

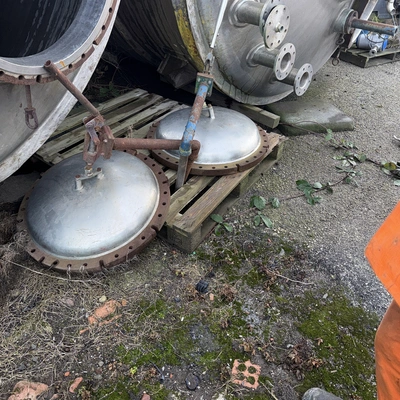

610 mm manway connection for access and maintenance

Vents & Inlets:

250 mm dia vent connection

10 × 100 mm dia inlet connections

Discharge Outlet: 150 mm dia bottom outlet

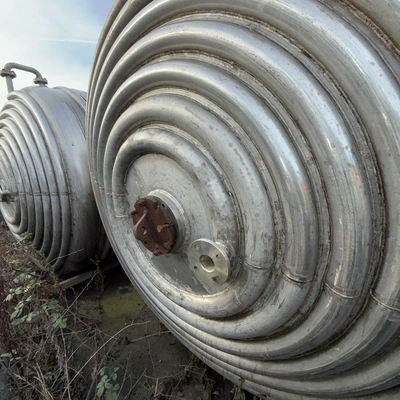

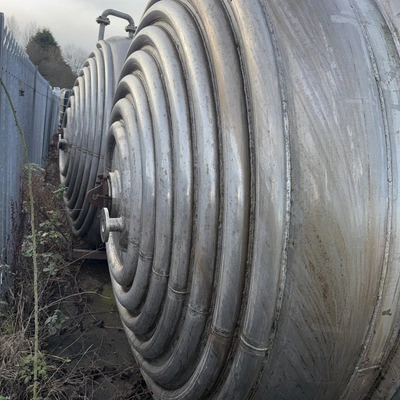

Jacket & Coil System

Stainless steel ½ coil or limpet coil jacket

60 mm dia inlets/outlets on straight side and bottom

Designed for heating or cooling process liquids efficiently

Pressure & Temperature Ratings

Coil Design Pressure: 2.4 bar / Full Vacuum

Coil Test Pressure: 5.2 bar

Chamber Test Pressure: 3.6 bar

Jacket Test Pressure: 9.3 bar

Design Temperature: 50 °C (both sides)

Additional Details

Empty Weight: 3,650 kg

Built to ASME VIII standards for safety, reliability, and compliance
