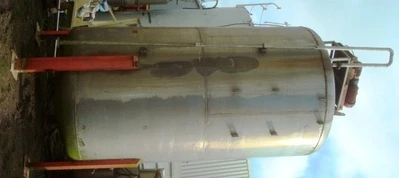

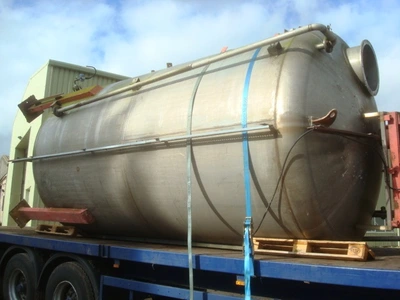

20,000L S/S Fermentation Mixer

Stainless Steel 2,600mm dia x 4,000mm tall with 500mm deep dish top and bottom with 50mm dia outlet mounted on 4 legs to give 360mm ground clearance.
Top with 520mm dia manway 2 off 50mm Dia inlets with 6 turns of internal 50mm dia coil approx 6.sq.m with 1.5 kW 30 rpm Transkem paddle stirrer overall height 6,200mm
20,000L Stainless Steel Fermentation Mixer

High-capacity stainless steel fermentation vessel complete with top-mounted agitation and internal cooling coil.

Vessel Specification:

Capacity:
20,000 litres

Dimensions:
2,600 mm diameter × 4,000 mm straight side

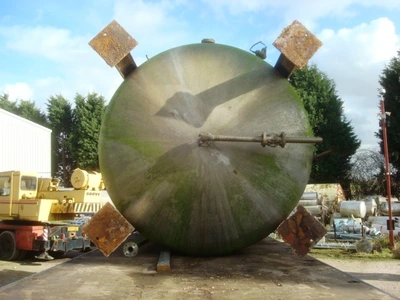

Ends:
500 mm deep dished top and bottom

Outlet:
50 mm diameter outlet

Support:
Mounted on 4 legs providing 360 mm ground clearance

Manway:

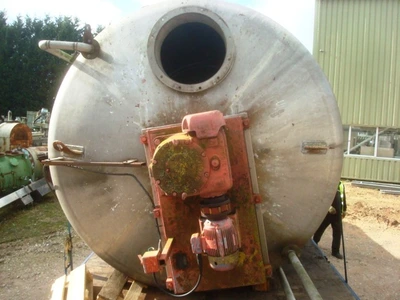

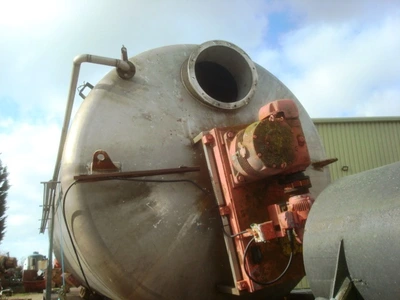

520 mm diameter top manway

Inlets:
2 × 50 mm diameter top inlets

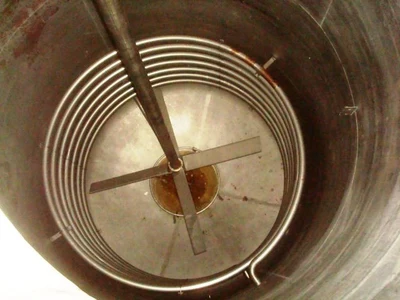

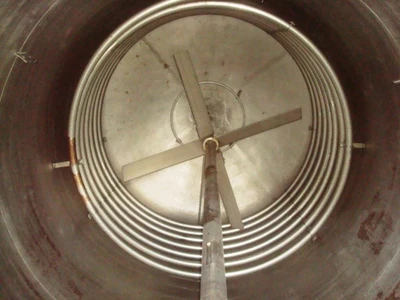

Internal Coil:
Approx. 6 m², 6 turns of 50 mm diameter cooling coil

Agitation System:

1.5 kW, 30 rpm
Transkem
paddle stirrer

Overall height: approx. 6,200 mm

A robust, large-scale fermentation mixer ideal for breweries, food production, biotechnology and industrial processing.
