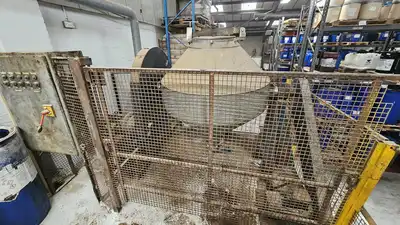

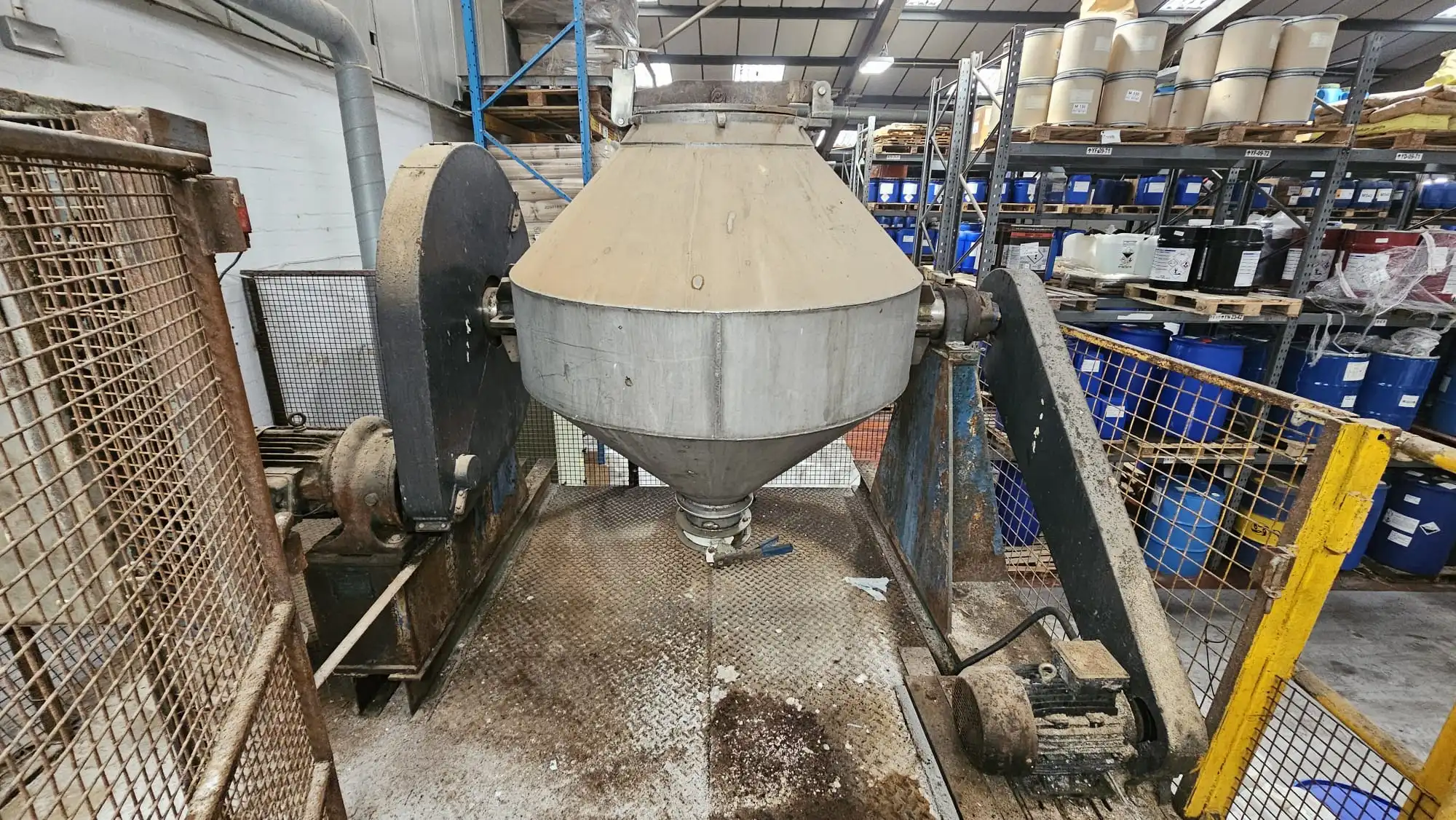

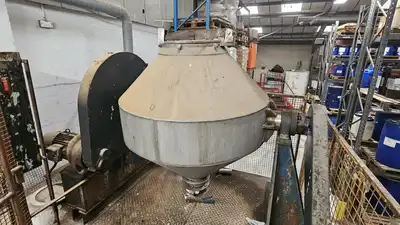

500L S/S LA Mitchell Double Cone Blender

Stainless Steel double Cone Blender about 1,200 mm dia x 300 mm deep with 400 mm deep coned one side with 150 mm dia connection other side with 300mm deep cone with 350 mm dia inspection hatch. fitted with Bending intensifiers added to the axis of rotation main double cone drive 4 kw 20 rpm with brake. intensifier with 4 kw 1440 rpm with pulley belt drive. mounted on mild steel frame Made by L.A Mitchell under licence from Patterson  Industries USA. overall size 2,500 mm x 1,500 mm x  1,600 mm tall [ needs more height to discharge ] Please note at extra cost we can supply with a safety cage & control panel.

500L Stainless Steel Double Cone Blender – L.A. Mitchell
Made under licence from Patterson Industries (USA)

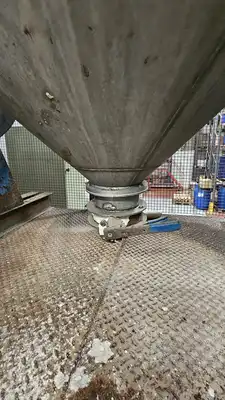

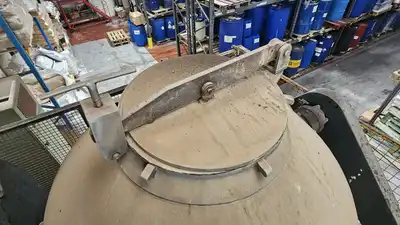

500L stainless steel double cone blender with blending intensifiers mounted on the main axis for enhanced mixing efficiency. Fitted with a 150mm discharge and 350mm inspection hatch.

Approx. 1,200mm dia x 1,500mm overall length

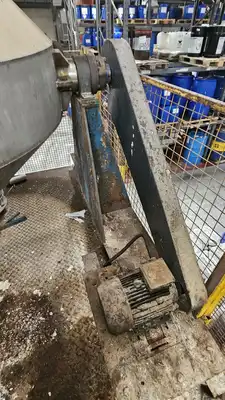

Main drive: 4.0kW, 20rpm with brake

Intensifier: 4.0kW, 1440rpm, belt-driven

Mounted on mild steel frame

Overall size: 2,500mm L x 1,500mm W x 1,600mm H (extra height needed for discharge)

Optional extras: safety cage and control panel (available at additional cost).
