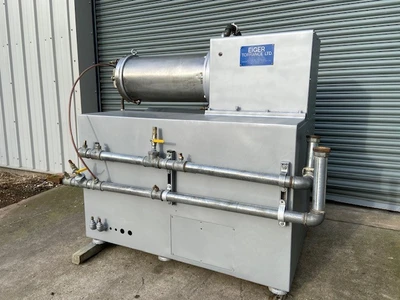

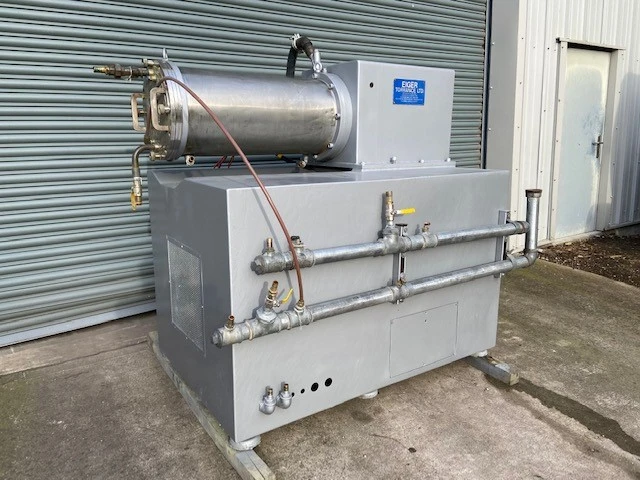

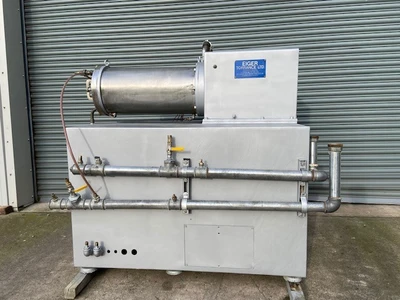

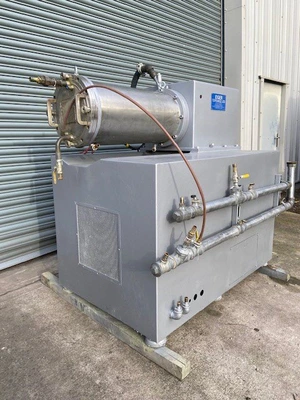

60L Eiger Torrance Stainless Steel Horizontal Jacketed Bead Mill

This 60L horizontal bead mill features a stainless steel jacketed chamber with a 45 kW flameproof belt drive, suitable for wet grinding and dispersion processes. The unit includes standard inlet/outlet connections and is mounted on a mild steel frame for stable operation.
Product Specification

Construction: Stainless steel horizontal jacketed milling chamber

Chamber Size: 350 mm diameter x 850 mm long

Inlet Size: 20 mm diameter

Outlet Size: 25 mm diameter

Drive: 45 kW FLP belt drive

Mounting: Mild steel support frame

Overall Dimensions: 1020 mm (W) x 1800 mm (L) x 1800 mm (H)

Approx. Weight: 2,650 kg

Current Bead Charge: 1.7 mm beads

Fill Level: 70% of chamber volume

Bead Density: 2.5 kg/L
